Removal and Replacement Procedures 5-11
5.6 Hard Drive
The hard drive is held in place with a security screw and a retaining bracket. To remove
the hard drive, complete the following steps:
1. Prepare the computer for disassembly (Page 5-3).
2. Turn the computer bottom side up and position it so that the front of the unit is
toward you.
3. Remove the security screw from the drive cover.

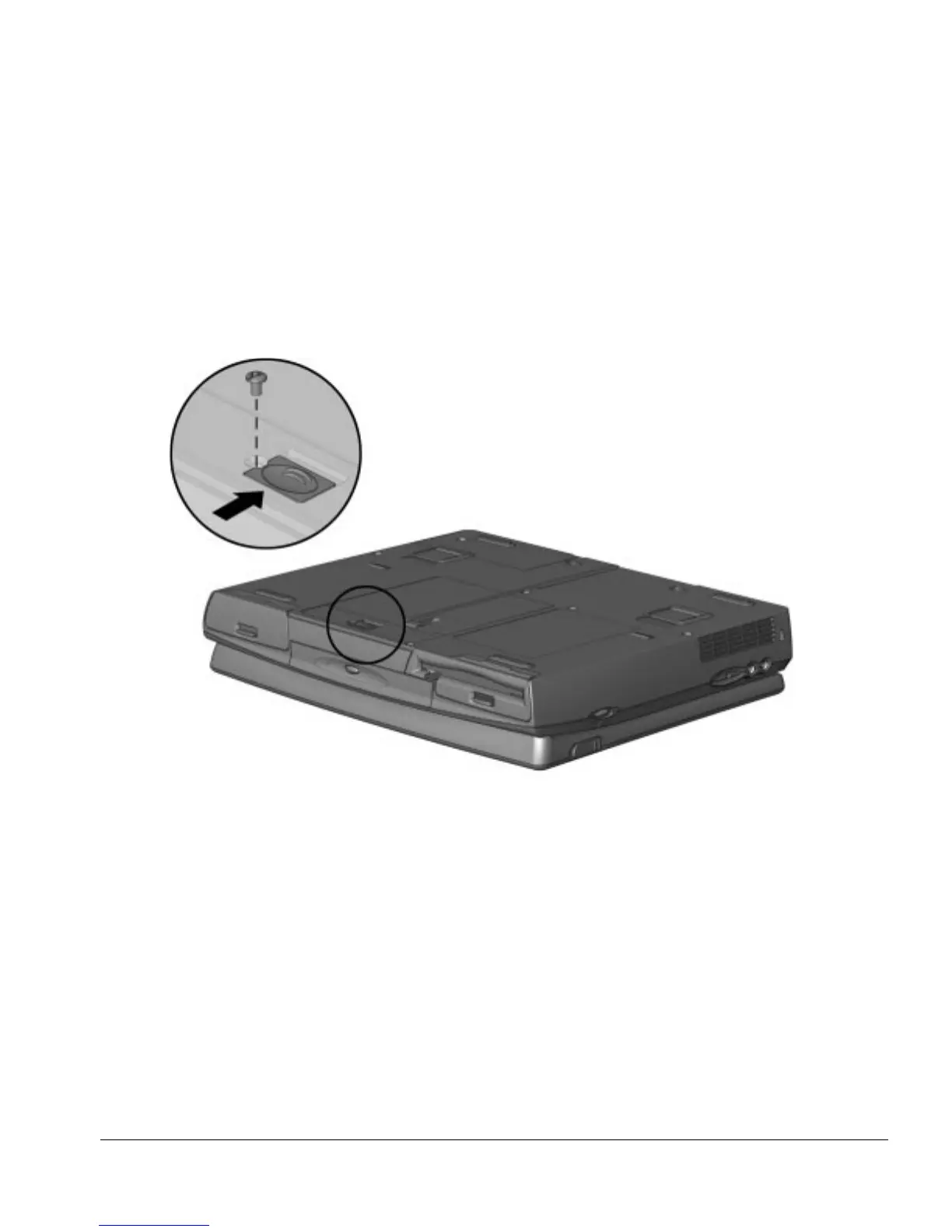

Figure 5-9.
Removing the Hard Drive Cover Security Screw
