5-38 Removal and Replacement Procedures
Integrated AC Adapter
To remove the AC power module, complete the following procedures:
1. Prepare the computer for disassembly as described on page 5-3.
2. Remove the system board (Page 5-35).
3. Remove the ground lead screw.
4. Remove the two screws holding the AC adapter to the system base.
5. Remove the two screws holding the AC power input connector to the back panel of
the system base.
6. Lift the AC adapter from the system base enclosure.

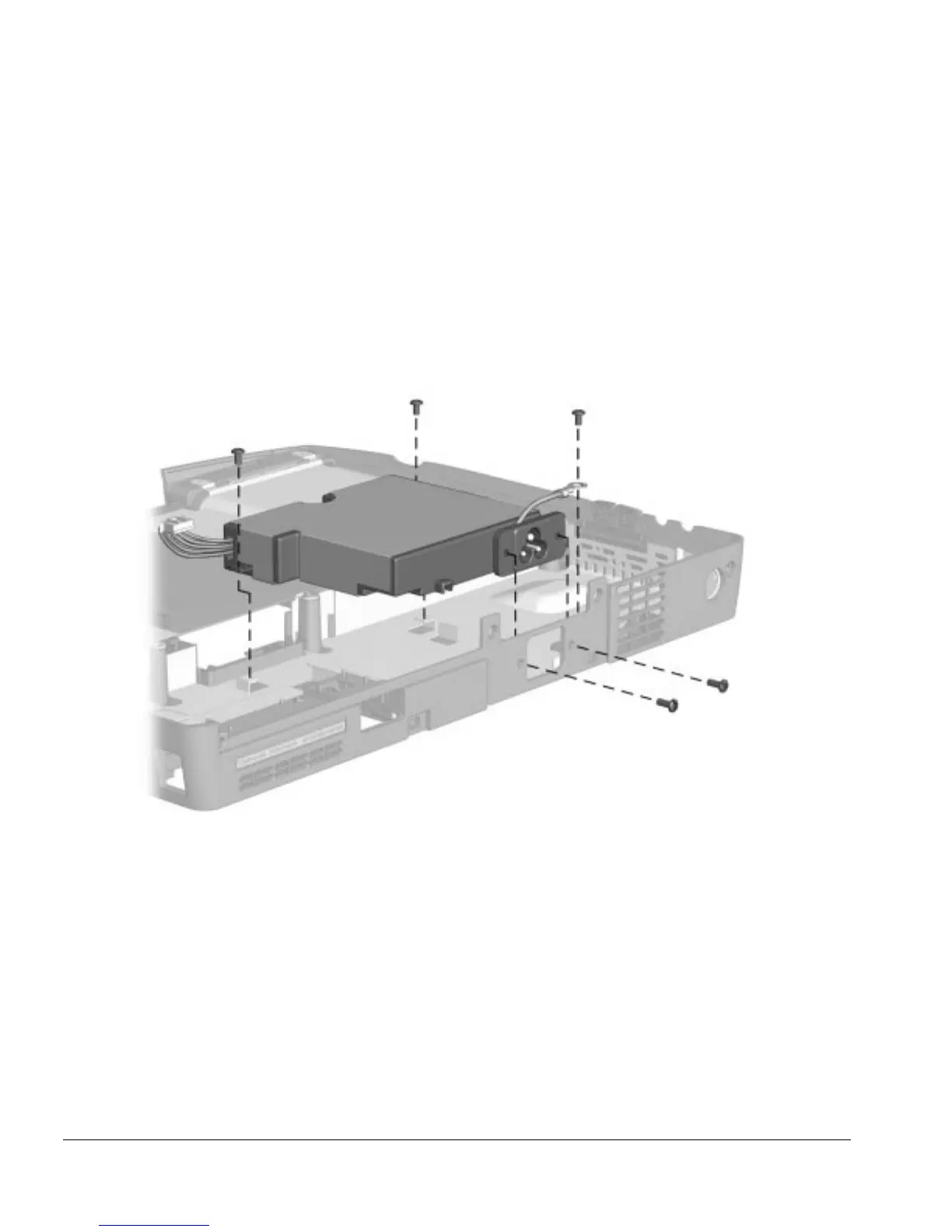

Figure 5-36.
Removing the AC Adapter
To replace the AC adapter, reverse the procedures described.
NOTE:
If you are replacing the base enclosure, transfer the IR module to the new
enclosure.
