Removal and Replacement Procedures 5-37
14. Lift the right end of the system board 1 from the lower base enclosure.
15. Slide the system board to the right 2 and lift it from the base enclosure.

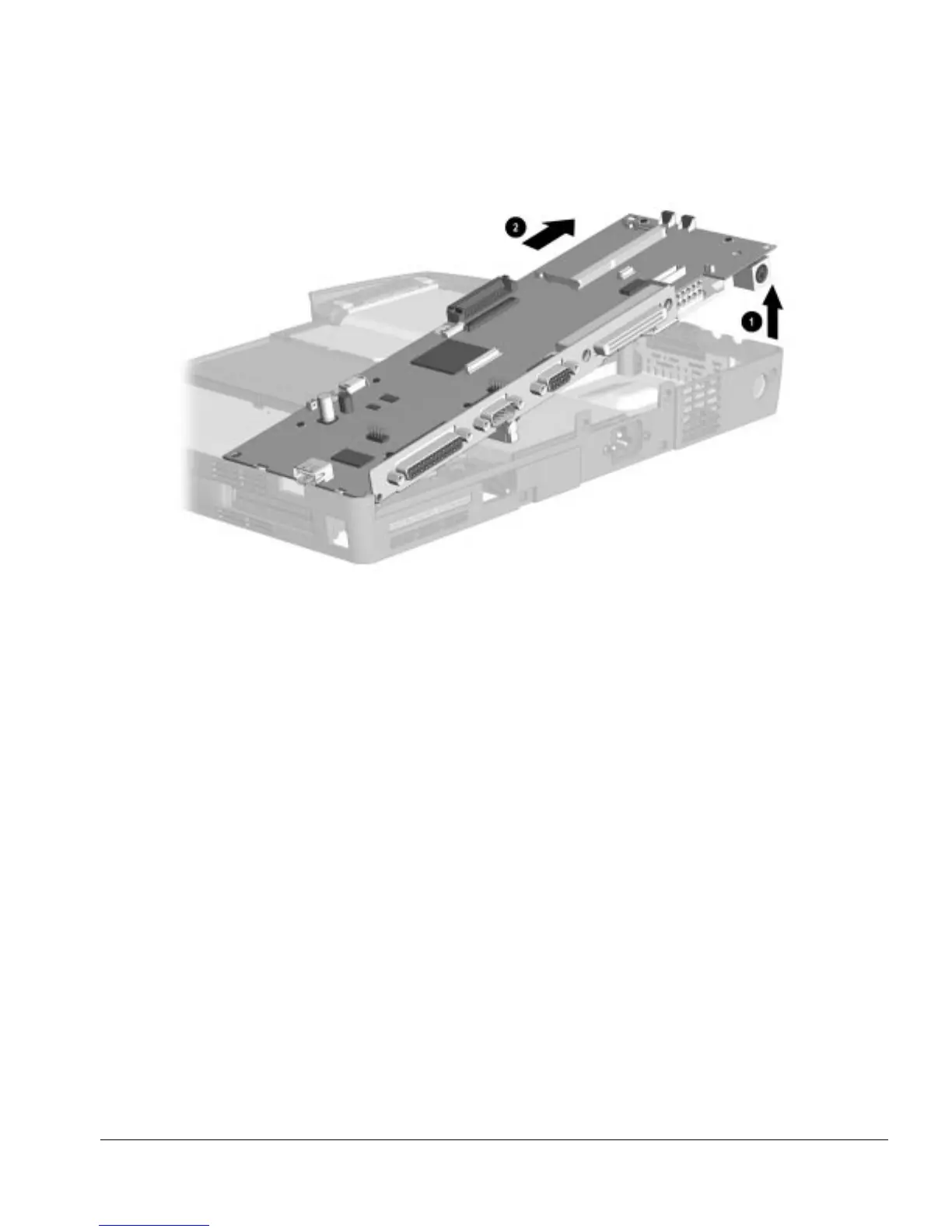

Figure 5-35.
Removing the System Board
To replace the system board, reverse the steps.
