5-36 Removal and Replacement Procedures
12. Remove both hex screws from the rear of the base enclosure.
13. Remove the screw from the system board.

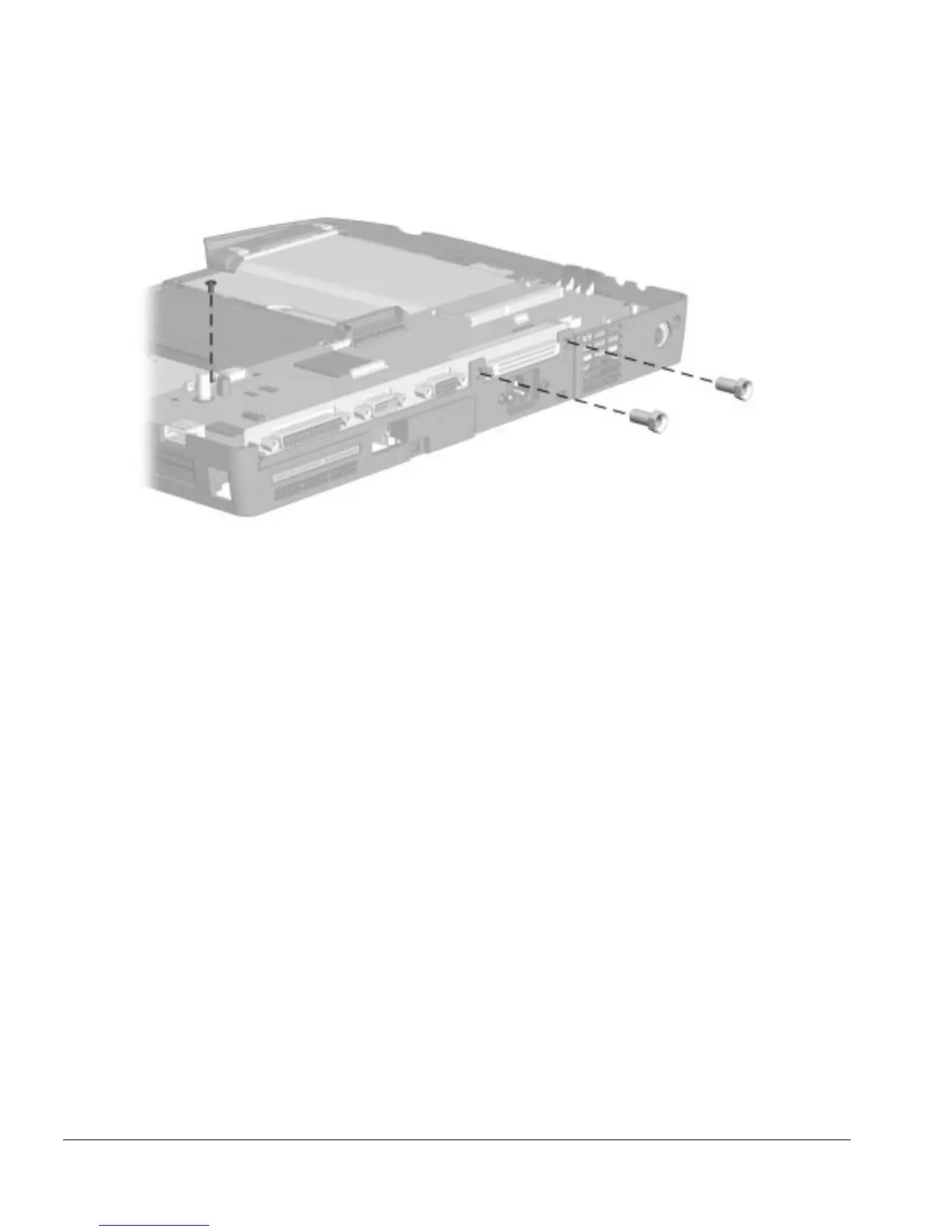

Figure 5-34.
Removing the Alignment Guides from the Expansion Connector
