Removal and Replacement Procedures 5-23
5.8 Display Assembly
To remove the display assembly, complete the following steps:
Hinge Covers
1. Prepare the computer for disassembly (Page 5-3).
2. Close the cover and place the computer on the workspace top side up and position it
so that the connectors on the back panel of the computer are facing you.
3. Remove the screw from each of the hinge covers.

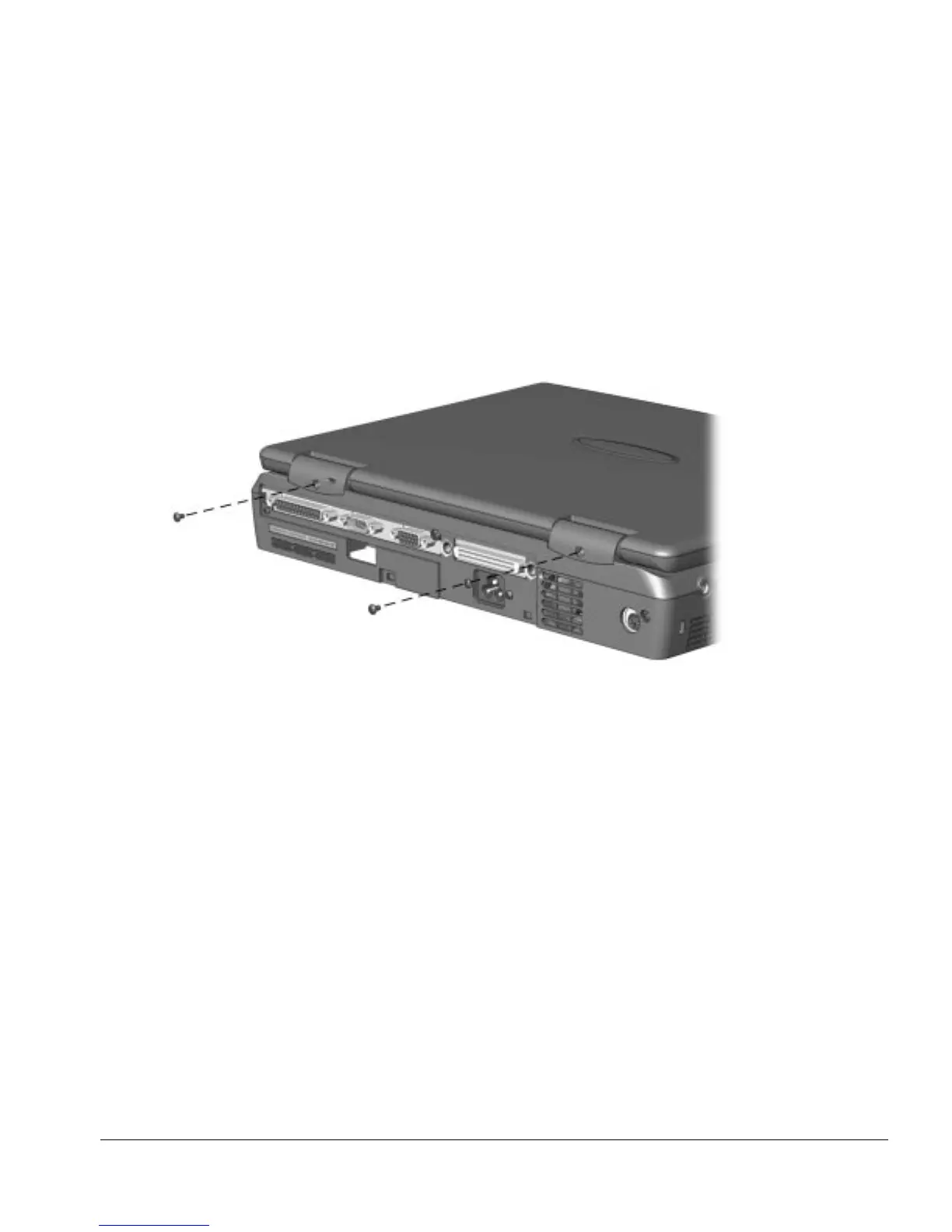

Figure 5-21.
Removing the Hinge Cover Screws
