Compaq Armada 1700 User Manual

Connectors A-1
appendix
A
C
ONNECTORS

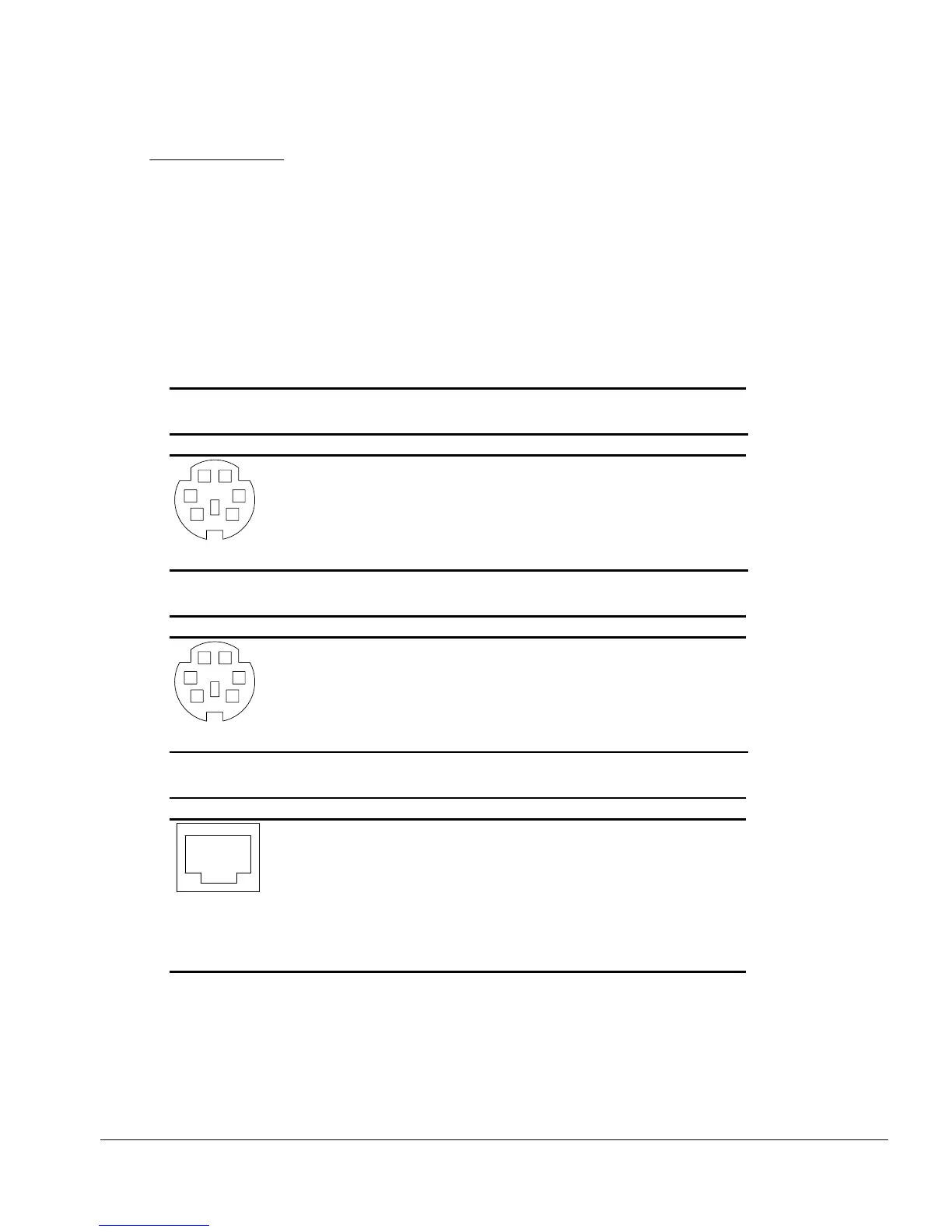

This appendix contains the pin assignments for all external connectors.
Table A-1
External Keyboard
Connector Pin Signal
KEY
65
43
2
1
1
2
3
4
5
6
Data
Unused
Ground
+5 VDC
Clock
Unused
Table A-2
PS/2-Compatible Mouse
Connector Pin Signal
KEY
65
43
2
1
1
2
3
4
5
6
Data
Unused
Ground
+5 VDC
Clock
Unused
Table A-3
Ethernet RJ-45
Connector Pin Signal
6
5
4
3
2
1
7
8
1
2
3
4
5
6
7
8
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
Unused
(-) Receive Data
Unused
Unused
