Compaq Armada 1700 User Manual

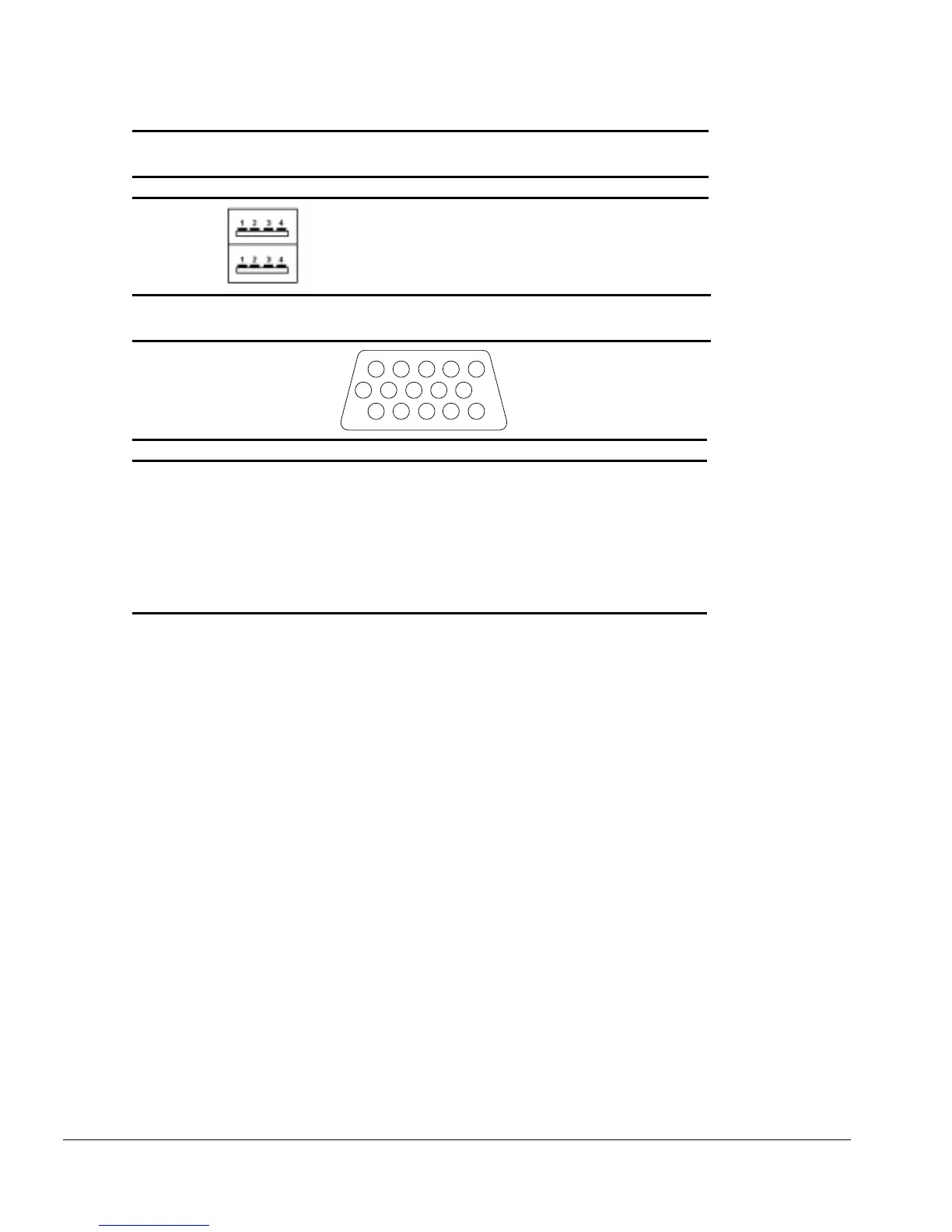

A-2 Connectors
Table A-4
USB
Connector Pin Signal
1
2
3
4
Ground
- Data
+ Data
+5 VDC
Table A-5
External Monitor
1
6
11
5
10
15
Pin Signal Pin Signal
1 Red Analog 9 Blank
2 Green Analog 10 Ground
3 Blue Analog 11 Blank
4 Blank 12 Monitor ID (DD)
5 Ground 13 Horizontal Sync
6 Ground 14 Vertical Sync
7 Ground 15 Monitor ID (CC)
8 Ground
