Connectors A-3

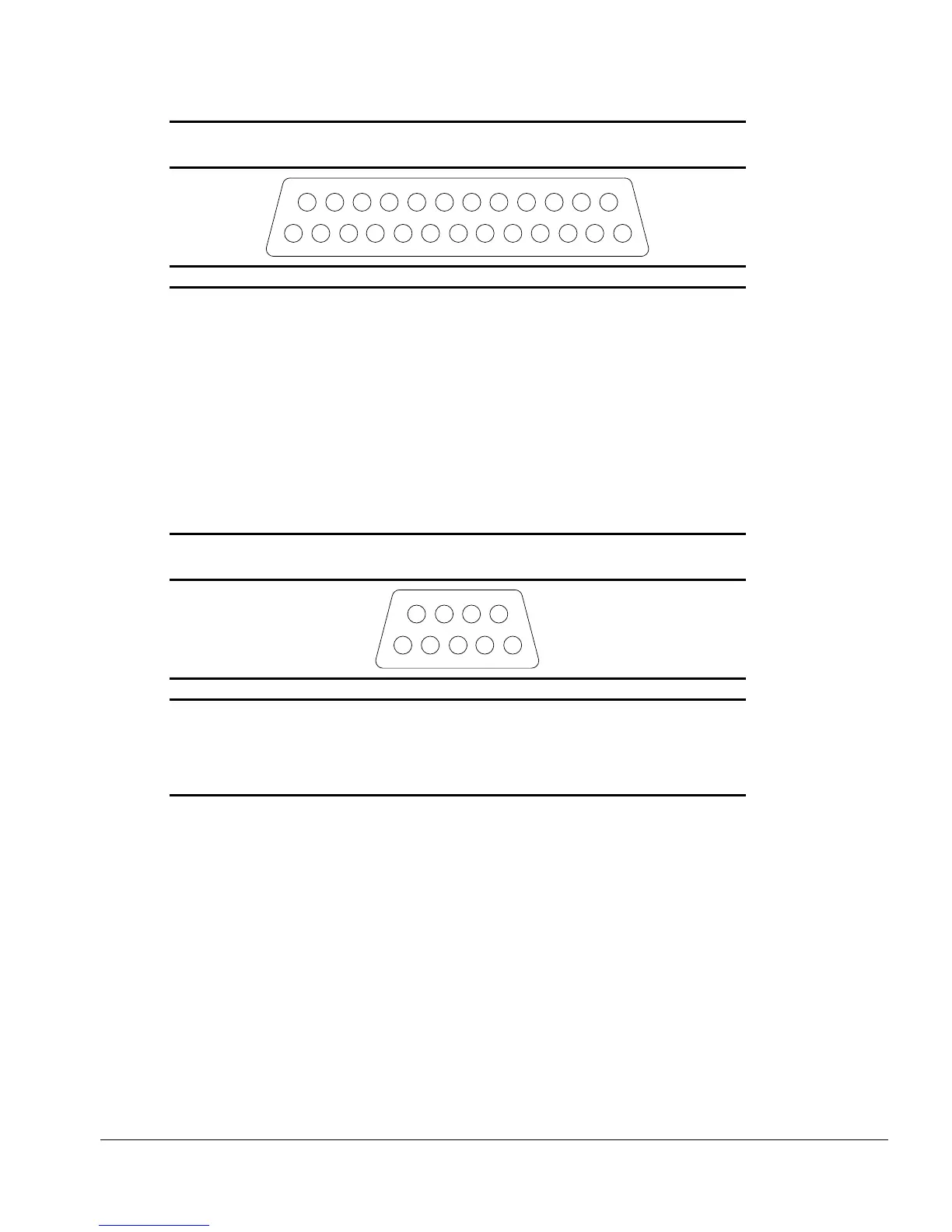

Table A-6
Parallel
1
14
25
13
Pin Signal Pin Signal
Strobe 14 Auto Linefeed
2 Data Bit 0 15 Error
3 Data Bit 1 16 Initialize Printer
4 Data Bit 2 17 Select In
5 Data Bit 3 18 Ground
6 Data Bit 4 19 Ground
7 Data Bit 5 20 Ground
8 Data Bit 6 21 External Diskette Positive Drive Detect
9 Data Bit 7 22 External Diskette Negative Drive Detect
10 Acknowledge 23 Ground
11 Busy 24 Ground
12 Paper End 25 External Diskette Drive Switched to +5 V
13 Select
Table A-7
Serial
1
6
9
5
Pin Signal Pin Signal
1 Carrier Detect 6 Data Set Ready
2 Receive Data 7 Ready to Send
3 Transmit Data 8 Clear to Send
4 Data Terminal Ready 9 Ring Indicator
5 Ground
