5-10 Removal and Replacement Procedures
IR (Infrared) Module
To remove the Infrared (IR) transceiver module:
1. Prepare the computer for disassembly (Page 5-3).
2. Remove the modem (Page 5-7).
3. Remove the screw from the IR module
4. Disengage the connector from the system board by lifting the corner of the IR
module with a screwdriver.
5. Lift the IR module from the base enclosure.

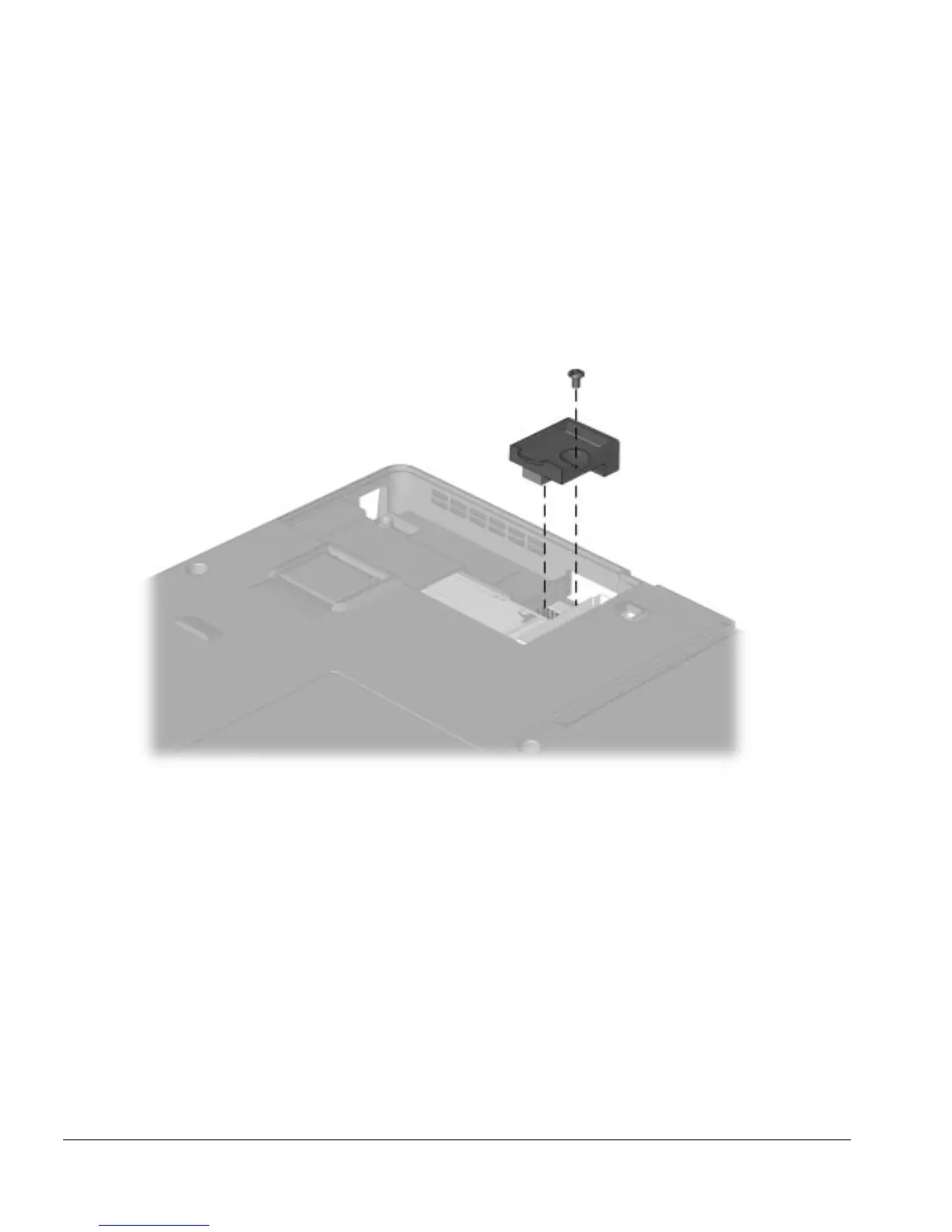

Figure 5-8.
Removing the IR Module
To install the IR module, reverse the procedure above.
NOTE:
If you are replacing the base enclosure, transfer the IR module to the new
enclosure.
