Removal and Replacement Procedures 5-9
5. Remove the modem board retaining screw.
6. Carefully pull the modem board release tab and lift the modem from the computer.

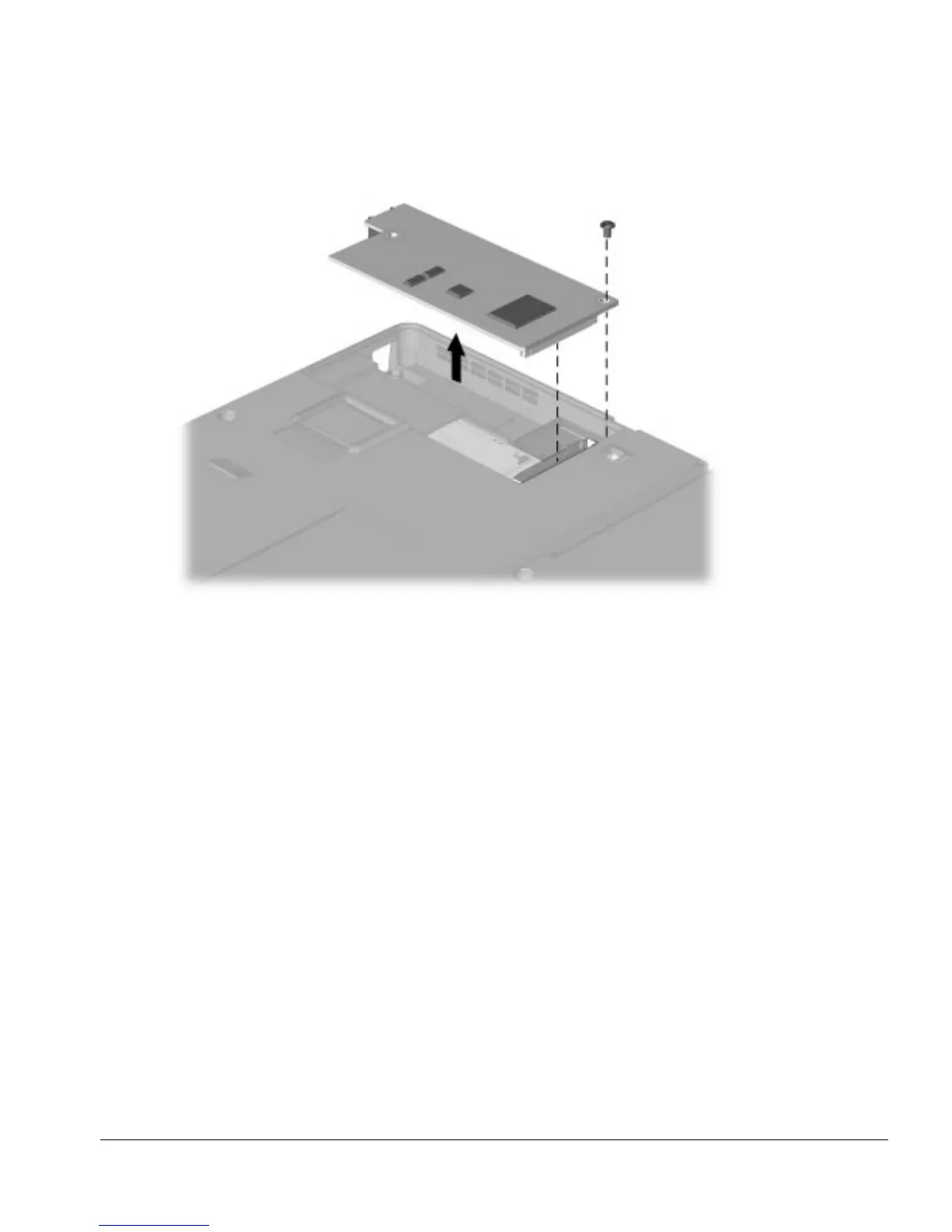

Figure 5-7.
Removing the Modem Board
To replace or install the modem, reverse the procedure.
NOTE:
When installing the modem, be sure that the modem release tab is folded on top
of the modem before replacing the modem access door.
