Compaq Armada 1700 - Rear Components

Product Description 1-9
1.3.5 Rear Components

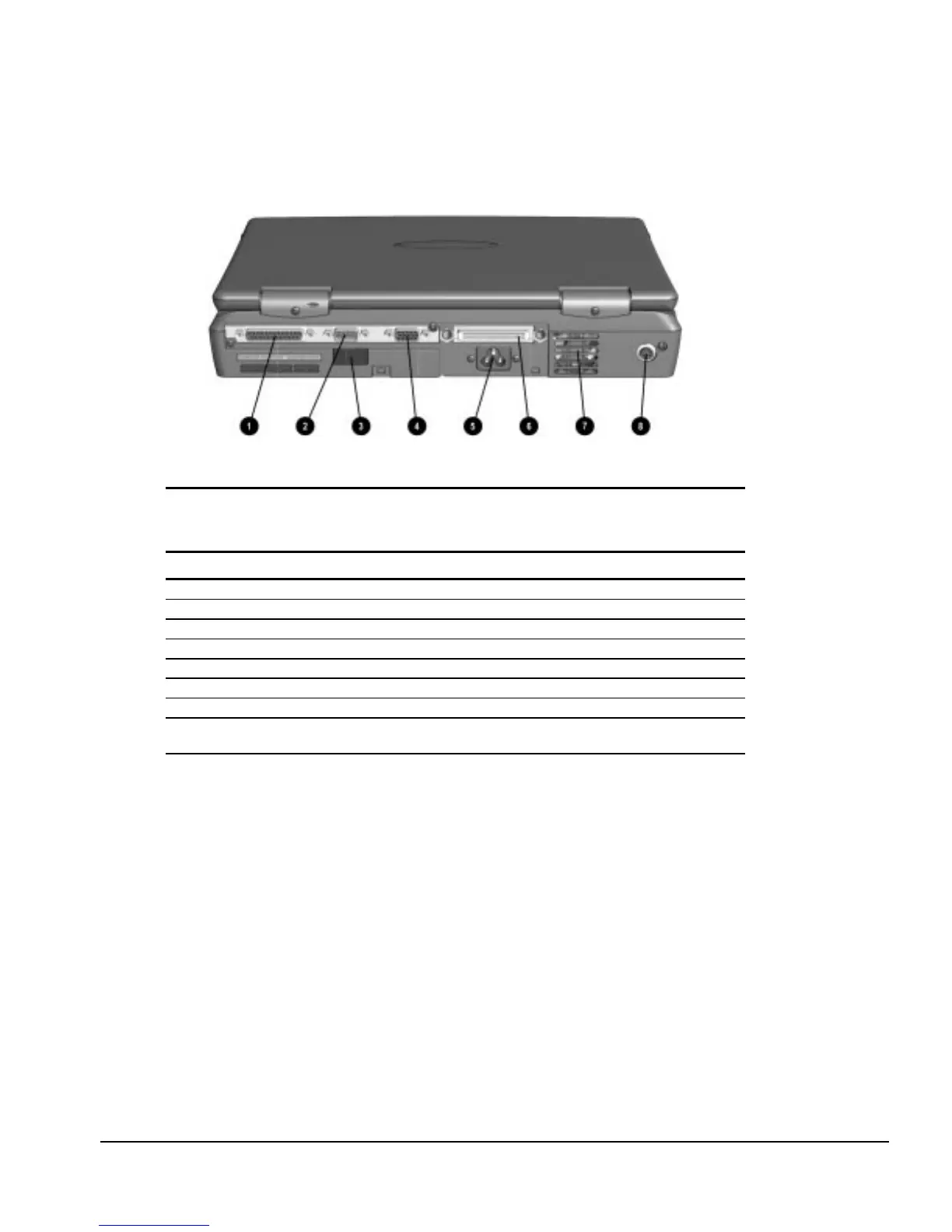

The rear components are shown Figure 1-6 and are described in Table 1-5.
Figure 1-6.
Rear Components
Table 1-5
Armada 1700 Computer Components
Rear
Item Component Function
1
Parallel connector Connects parallel devices such as a printer
2
Serial connector Connects serial devices such as a mouse
3
Infrared port Provides wireless communications (on selected models)
4
External monitor connector Connects external monitor
5
AC Power connector Connects external AC power
6
Docking connector Provides connection to optional convenience base
7
Fan (Airflow vents) Provides thermal ventilation to internal components
8
External Keyboard Connects external keyboard or PS-2 mouse
(Supports standard Y connector)
