5-16 Removal and Replacement Procedures
Keyboard Removal
1. Release the latch on the keyboard ZIF connector.
2. Slide the strain relief on the flat cable toward the back of the computer, then lift the
front edge of the strain relief from the recess.
3. Disconnect the keyboard ribbon cable.
4. Remove the keyboard from the computer.

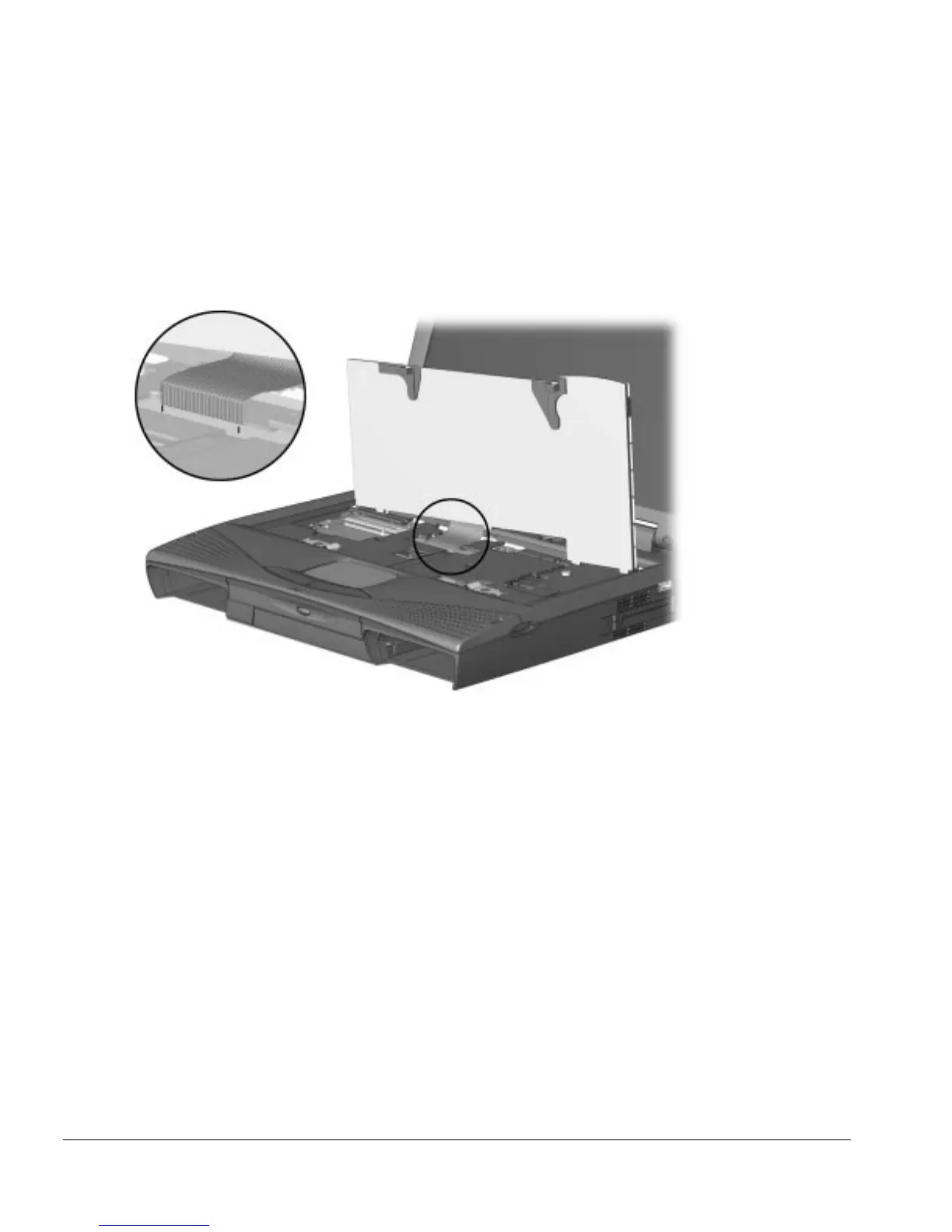

Figure 5-14.
Disconnecting the keyboard Ribbon Cable
To replace the keyboard, reverse the procedure above.
NOTE:
To replace the strain relief, place the edge of the strain relief nearest the back of
the computer down into the recess, press the strain relief toward the rear of the computer
and rotate the front edge down toward the computer.
