C-4 Convenience Base
Rear Components
The rear components are shown in the following figure and identified in this section:
1 RJ-45 jack (Ethernet model only)
2 Serial connector
3 Parallel connector
4 External monitor connector
5 MIDI/Joystick connector
6 Pointing device connector
7 Keyboard connector
8 Speaker/headphone jack
9 USB connector
: Audio Line-in jack
; Fan
w AC power connector

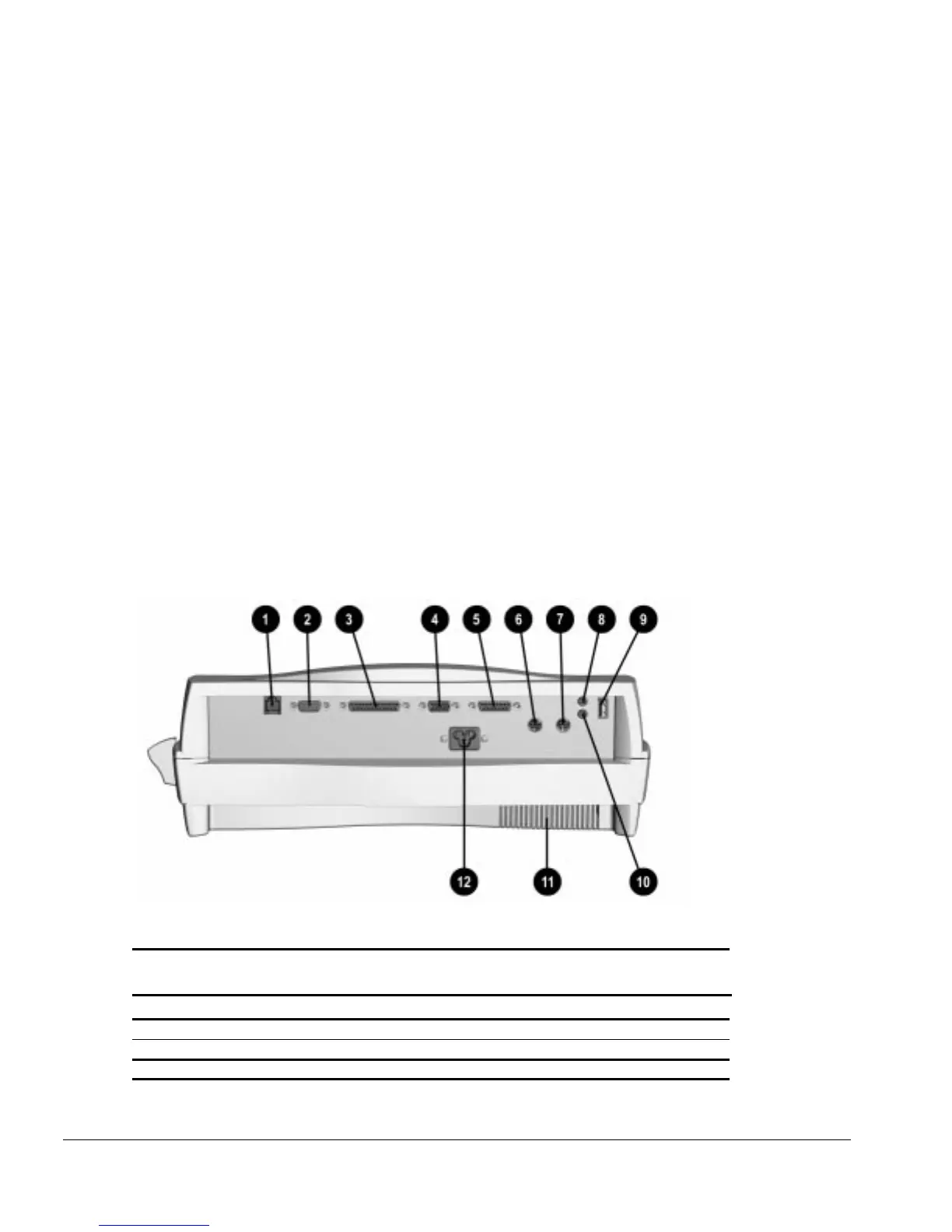

Figure C-3.
Convenience Base II with RJ45 Rear Components
Table C-2
Convenience Base Models
Item Description Spares Part Number
1 Convenience Base II (Ethernet model) 316312-001
* Convenience Base II (Pass through model) 316291-001
* Not illustrated
