Removal and Replacement Procedures 5-19
To install a memory board, complete the following steps:
1. Insert the memory board
1
into the memory slot.
2. Pivot the memory board toward the computer
2
so that it lays flat in the memory
compartment.
3. Insert the memory board firmly into place to seat the connections and to engage the
locking tabs.

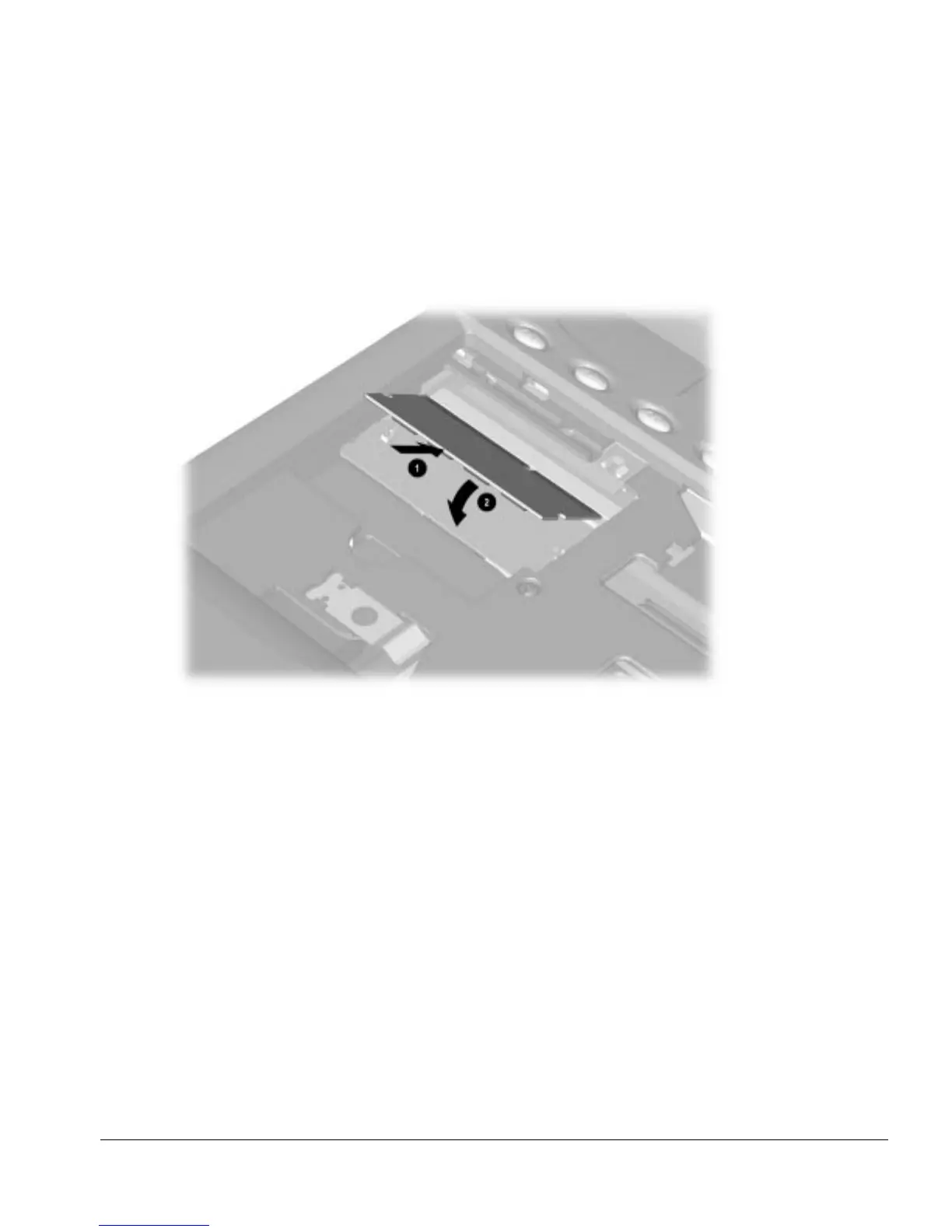

Figure 5-17.
Installing the Memory Board
