Compaq Armada E500 Series User Manual

6-8 Working with Removable Drives and Device Bays
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Beth Zanca Saved by: JAbercrombie Saved date: 07/13/99 1:34 PM
Part Number: 131511-001 File name: Ch06.doc

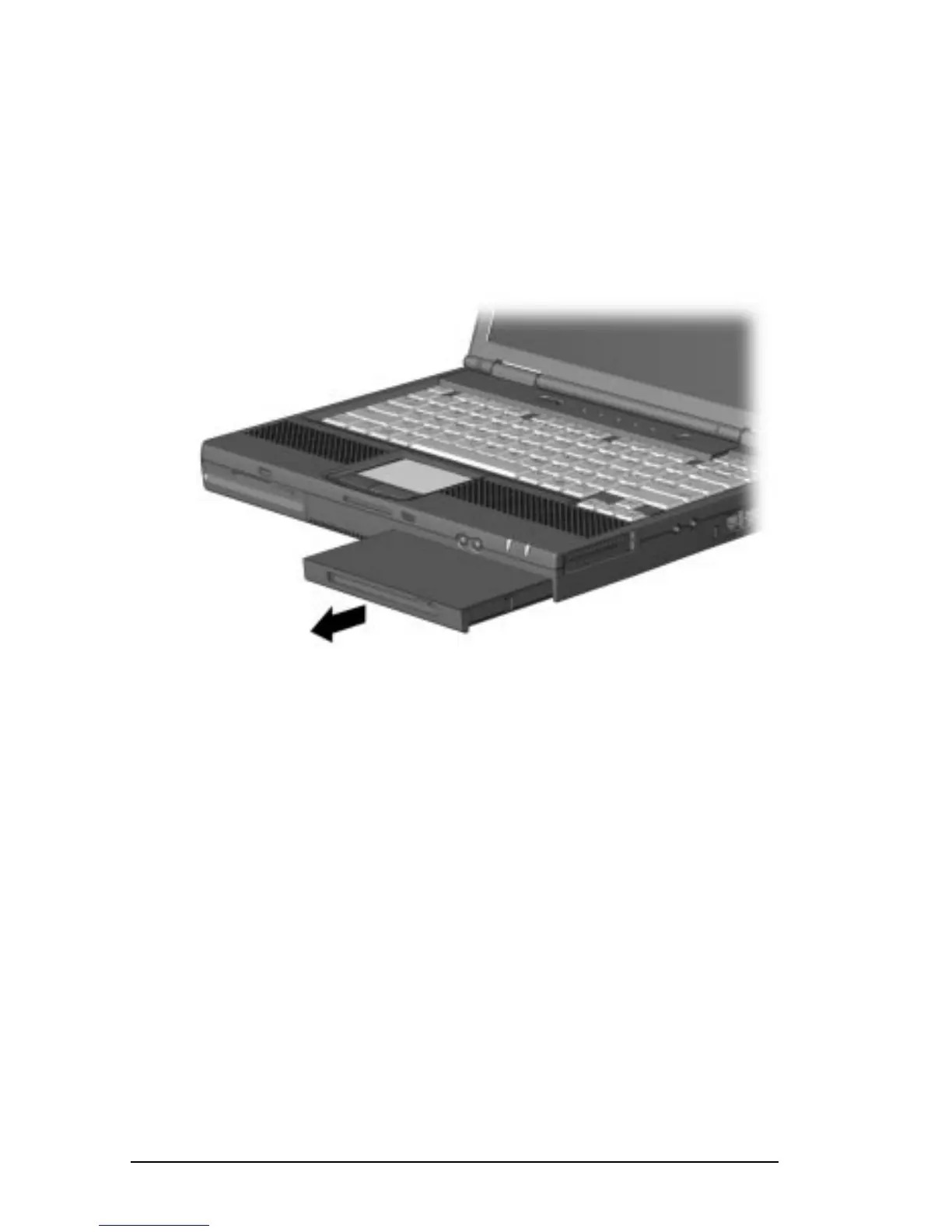

Removing a MultiBay Device
1. If your device is not hot-pluggable, turn off the computer.
2. Press the MultiBay release lever to release the device.
IMPORTANT: When removing a second hard drive, first remove
the adapter from the MultiBay, then remove the hard drive
from the adapter.
3. Remove the device.
Using a Second Hard Drive
The computer is designed to use up to two hard drives: one in the
computer and one in the computer MultiBay. Refer to the section
“Changing the Startup Sequence with MultiBoot” in this chapter.

Compaq Armada E500 Series Specifications

General

Processor	Intel Pentium III
Chipset	Intel 440BX
Optical Drive	24x CD-ROM or DVD-ROM
Networking	10/100 Ethernet
Wireless	Optional 802.11b
RAM	Up to 512 MB
Display	14.1-inch TFT, 1024x768 resolution
Graphics	ATI Rage Mobility with 8 MB
Ports	USB, Parallel, Serial, VGA, PS/2, Infrared
Battery	Lithium-Ion
Operating System	Windows 98, Windows 2000
Storage	6 GB - 12 GB Hard Disk Drive
Battery Life	Approximately 2-3 hours
