Chapter 5 Configure Compex CGX3224 using Web Interface
16
Chapter 5 Configure Compex CGX3224 using Web Interface
This chapter explains the configuration menu tool that comes with Compex CGX3224 when
you use the web-based configuration interface. Here, we will briefly discuss each Menu
components and its functions.

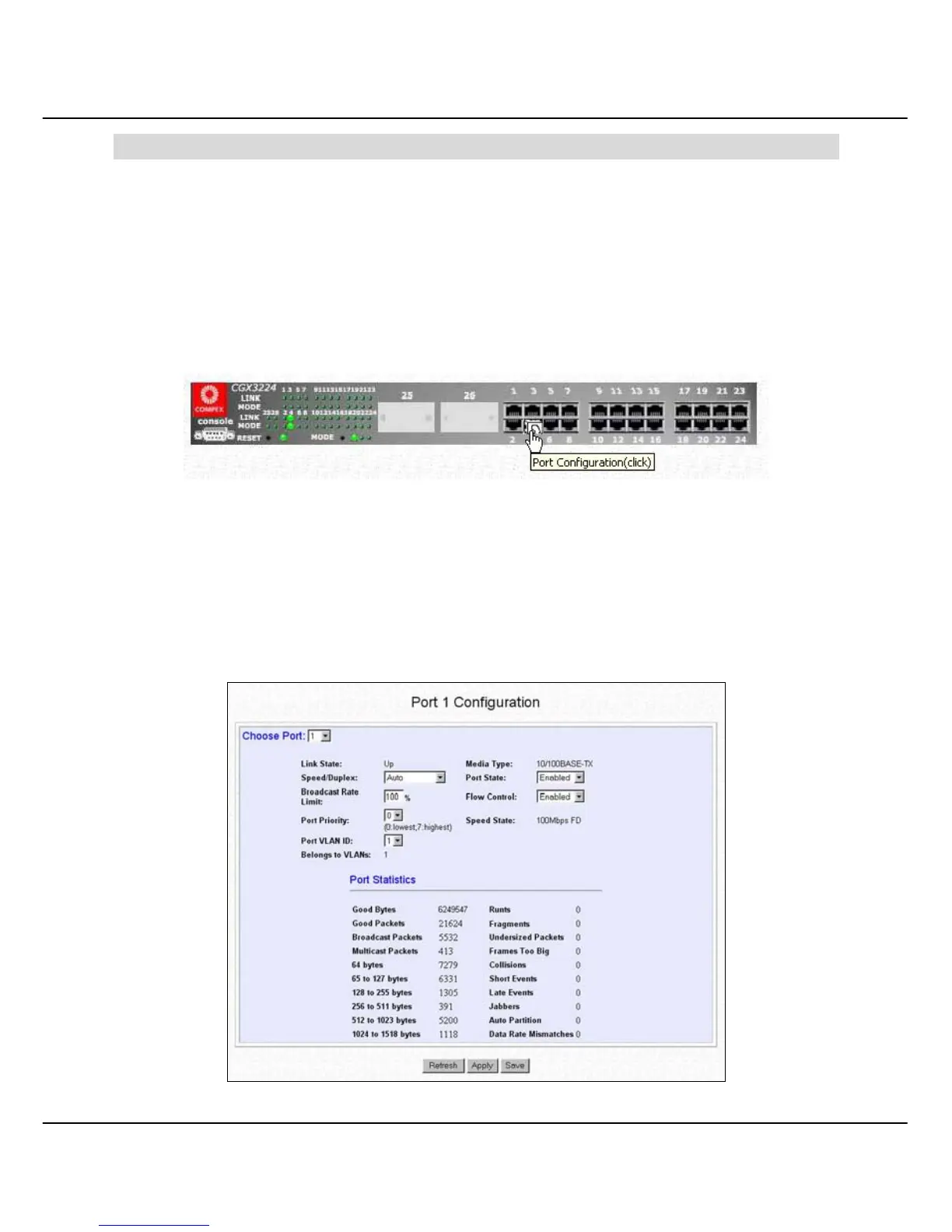

An interactive image is located at the main page of Compex CGX3224. It allows you to view
the real time situation in the network. In addition, you may click on any of the ports, including
the expansion module, to view the port status.
5.1 Port Configuration
This function allows you to have an easy access to the network via the ports of Compex
CGX3224. Notice that the “Link state” option indicates ‘Up’. This shows that the port is
connected to the network. It can either be in “Up” (Connected) or ‘Down’ (No
Connection) state.

Compex CGX3224 Specifications

General

Brand	Compex
Model	CGX3224
Category	Switch
Language	English
