Compex CGX3224 User Manual

Chapter 8 Advanced Configuration for Compex CGX3224
48

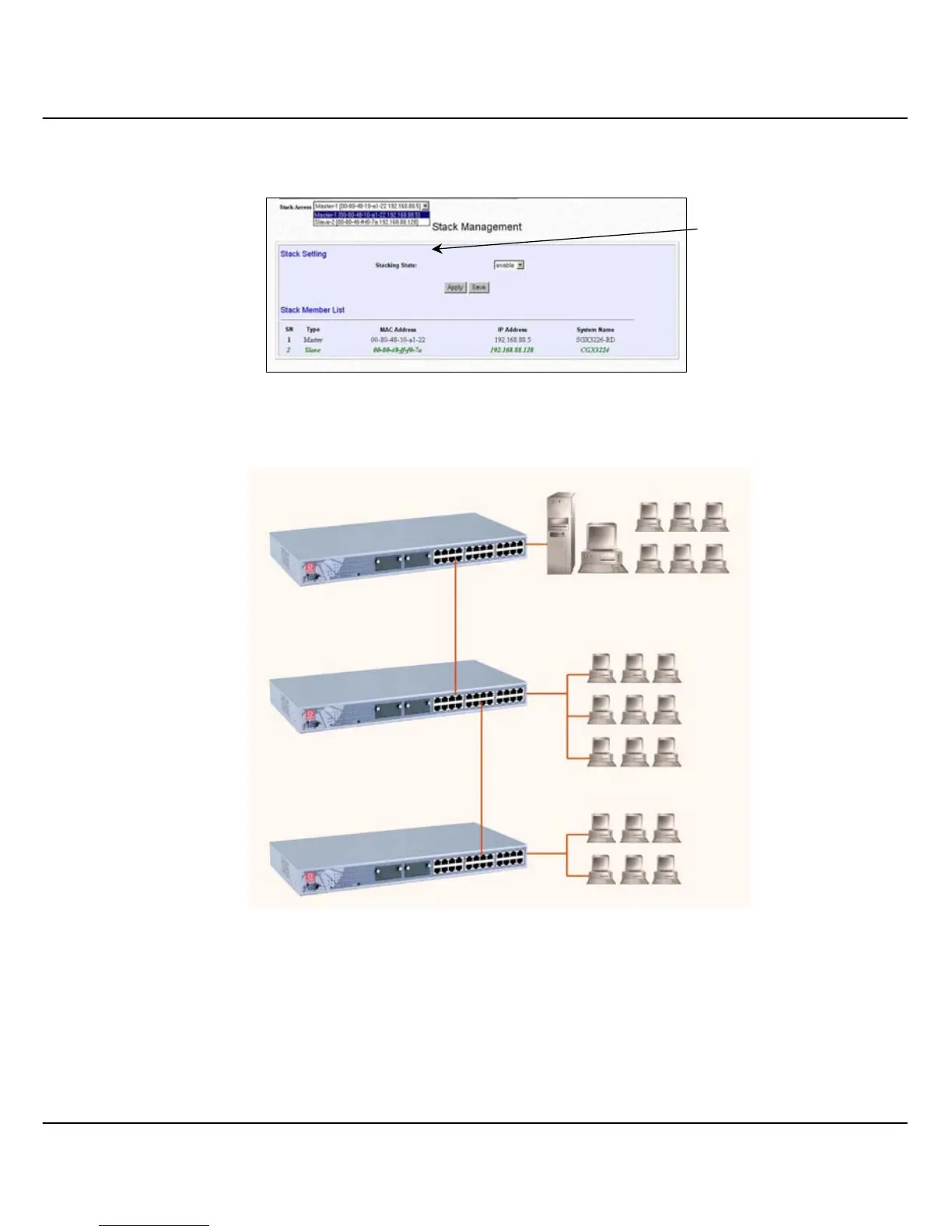

A pull down menu is created under the CGX3224 image. From there, you may select the
types of switch you wish to access, and the information will be listed.
8.3.1 Simple Application on Stack Management
CGX3224 Unit #1, #2 and #3 are stacked accordingly. Individual switches are
linked to its respective workgroup, such as Workgroup A, B and C. Enabling
the stacking function allows the master switch to do the configuration on Unit
#2 or Unit #3.
In order to control all the slave switches, you need to enable the stacking
function for all switches. You may follow the procedures as shown below:
Switch
selection
CGX3224 Unit #3
(Slave)
192.168.100.128
CGX3224 Unit #2
(Slave)
192.168.100.128
CGX3224 Unit #1 (Master)
192.168.100.128
Workgroup B
Workgroup C
Workgroup A
Control
Station
