C-Band Transceiver Revision 1
CSAT-5060 5 to 25 Watt Installation MN/CSAT5060.IOM
A–3
Item No. Part No. Nomenclature QTY
1 FP/BR0078 Bracket, Unistrut 1
2 FP/BR0072 Bracket, Strap Tensioner 1
3 FP/BR0070 Bracket, Strap-Termination Pole Mounting Kit 1
4 FP/BR0071 Bracket, 1 1/4 Strap 1
5 FP/BR0069 Bracket, Strap-Fixed, Pole Mounting Kit 1
6 HW/M8X1.25X25HEXSS Bolt, Hexhead, M8X1.25X25, SS 2
7 HW/M8FLATSS Washer, Flat, M8 SS, Metric 7
8 HW/M8LOCKSS Washer, Split lock, M8, SS, Metric 7
9 HW/M8SPRINGNUT Springnut, M8 xX 1.25 2
10 HW/M8X1.25MMHEXNUTSS Nut, Hex M8X1.25X16MM, SS 5
11 HW/PIPEBLOCK Pipe, Block 2

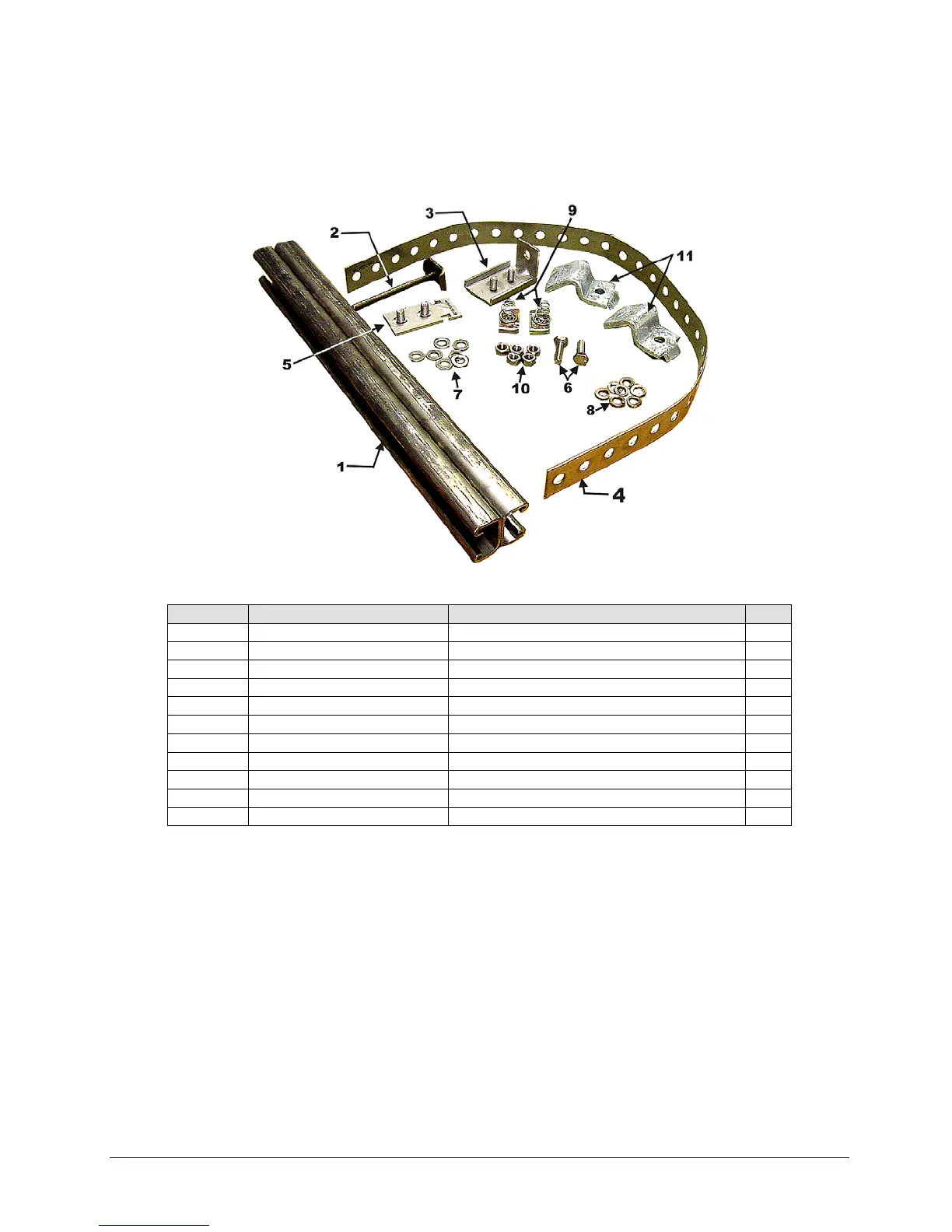

Figure A-1. Universal Pole Mounting Kit, AS/0414
