C-Band Transceiver Revision 1
CSAT-5060 100/125 Watt Installation MN/CSAT5060.IOM
C–12
Note: For mounting customer-supplied unit to Transmit Switch Assembly
Item No. Part No. Nomenclature QTY
1 HW/M5X.08X30MMHEX Bolt, M5X.08X30MM Hexhead SS 12
2 GA/GSKTCP137HLF Gasket, CP137, Half Thick 1
3 HW/M5X.08HEXNUT Nut, Hex M5 x .08 SS 12
4 HW/M5LOCK Lockwasher, M5 SS, Metric 12
5 GA/GSKTCP137FUL Gasket, CP137, Full Thick 1
6 HW/M5FLAT Washer, M5 Flat 24

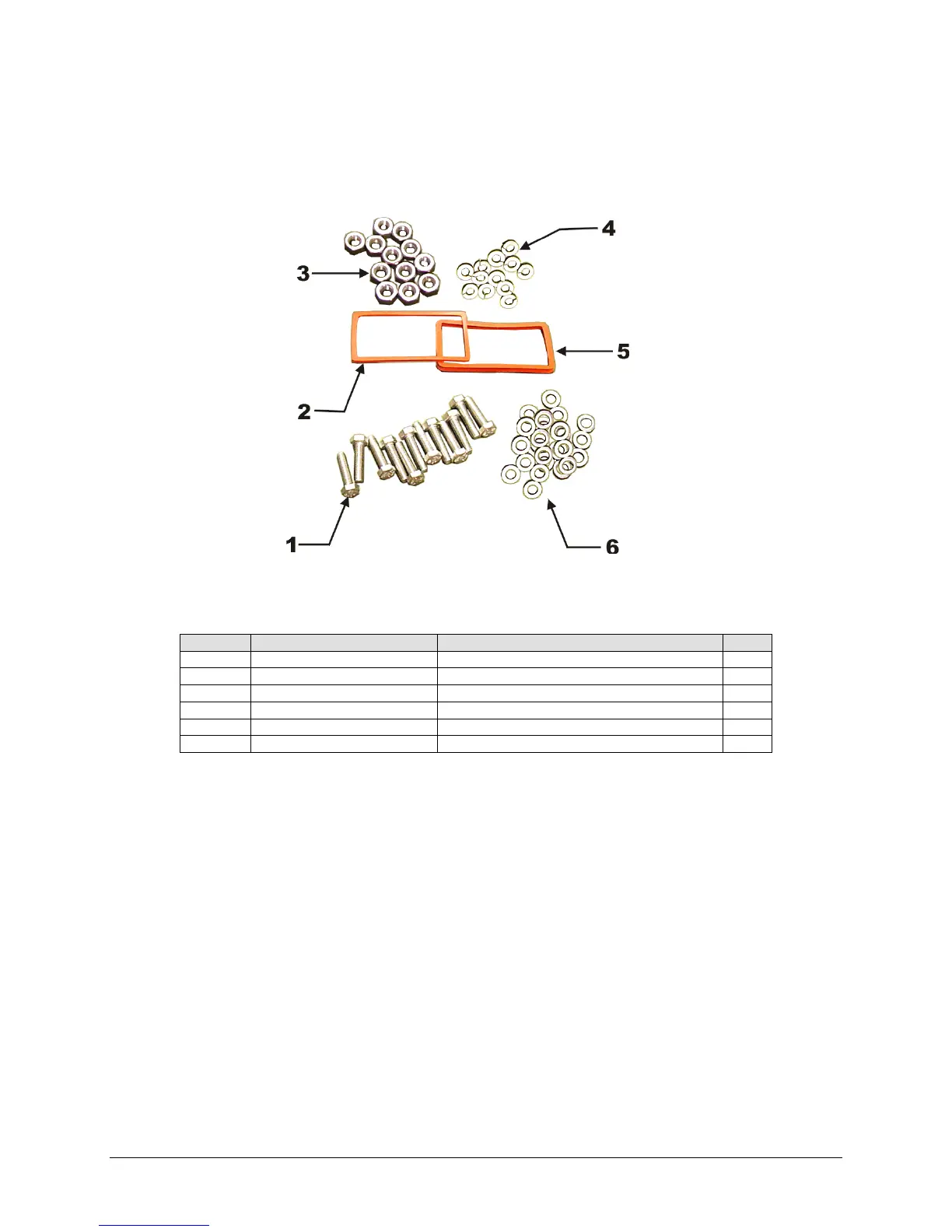

Figure C-10. Waveguide Kit, CPR137G, AS/0460
