Comtech EF Data CSAT-5060 - Page 215

C-Band Transceiver Revision 1
CSAT-5060 100/125 Watt Installation MN/CSAT5060.IOM
C–13
1
2
5
6
3
4 8
Item No. Part No. Nomenclature QTY
1 FP/WG0034 Waveguide Termination, Small Fins 1
2 FP/WG0043
Waveguide CPRG137, 90° “E” 5.50 Flex x 2.00
1
3 FP/WG0051 Waveguide, CPRG137, “Jogged” 1
4 GA/GSKTCP137FUL Gasket, CP137, Full Thick 3
5 HW/M5FLAT Washer, M5 Flat 28
6 HW/M5LOCK Lockwasher, M5 SS, Metric 28
7 SW/WG3AGSM Switch, CPR137G, +24V, Sealed Metric 1
8 HW/M5X.08X12MMHEX Bolt, M5X.08X12MM Hexhead SS 28

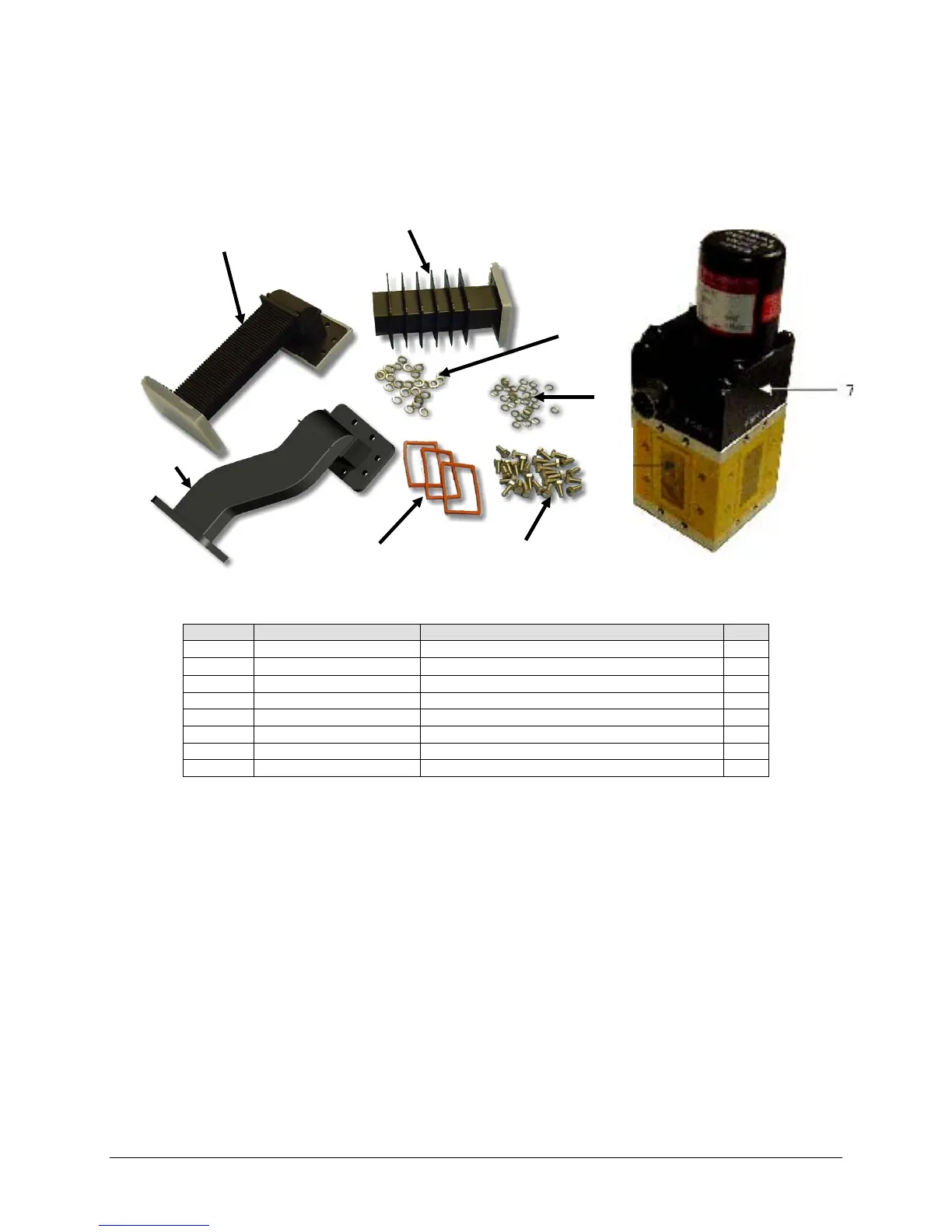

Figure C-11. Waveguide Switch, TX 1:1, AS/0478
