2.3.3 Connector ‘J3 | POWER IN’ AC Power Mains
FOR SAFETY REASONS, MAKE SURE YOU KNOW THAT THE ‘J3 | POWER IN’ AC
POWER CONNECTION PIN ASSIGNMENTS ARE DIFFERENT FOR EACH LPOD
UNIT. YOU MUST USE THE CORRECT PIN ASSIGNMENTS.
INCORRECT USE OF PIN ASSIGNMENTS CAN RESULT IN PRODUCT DAMAGE
OR PERSONAL INJURY.
For all LPOD models, the prime power input requirement is as follows:
• 90 to 264 VAC
• 47 to 63 Hz
The power supply is power factor corrected. The total power required from the prime power
supply depends on the model used. See Sect. 1.5 Summary of Specifications for more
information.

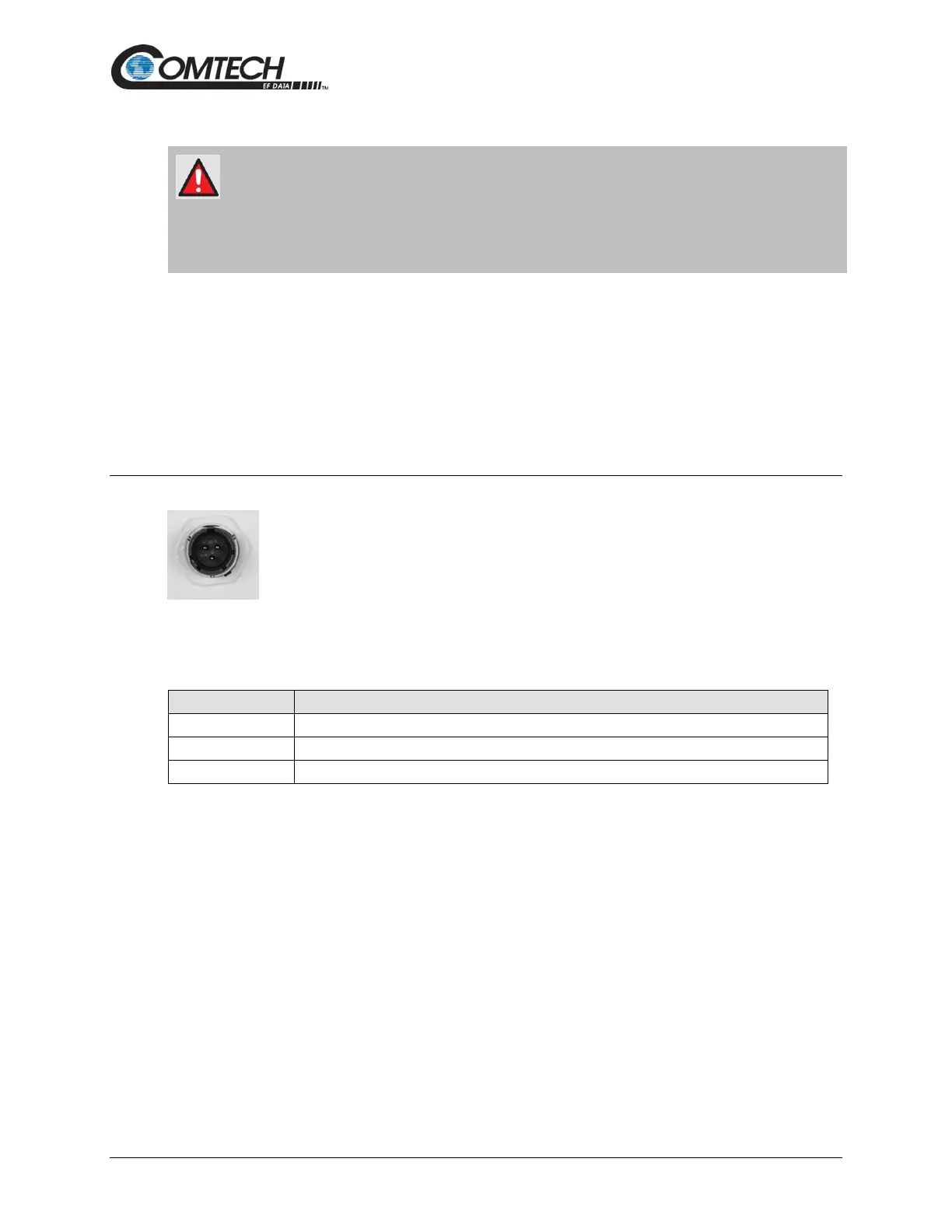

2.3.3.1 PS 1, PS 1.5 ‘J3 | POWER IN’ AC Power Main
The mating connector specification and pin assignments specific to the PS 1 and
PS 1.5 AC power interfaces are as follows:
Mating Connector:
CEFD P/N CN/MS-STPG03F02 (ITT Cannon KPT06B-12-35)
Table 2-2. PS 1/PS 1.5 ‘J3 | POWER IN’ Pin Assignments
Pin
Description
A
LINE (L1)
B
NEUTRAL (L2)
C
GND
