1.4 Theory of Operation
1.4.1 SSPA Block Diagrams
See Figure 1-2 and Figure 1-3 for the LPOD block diagrams.
The major components of an LPOD unit are:
• The SSPA Module
• The Cooling system
• The Power Factor Corrected Power Supply
• M&C

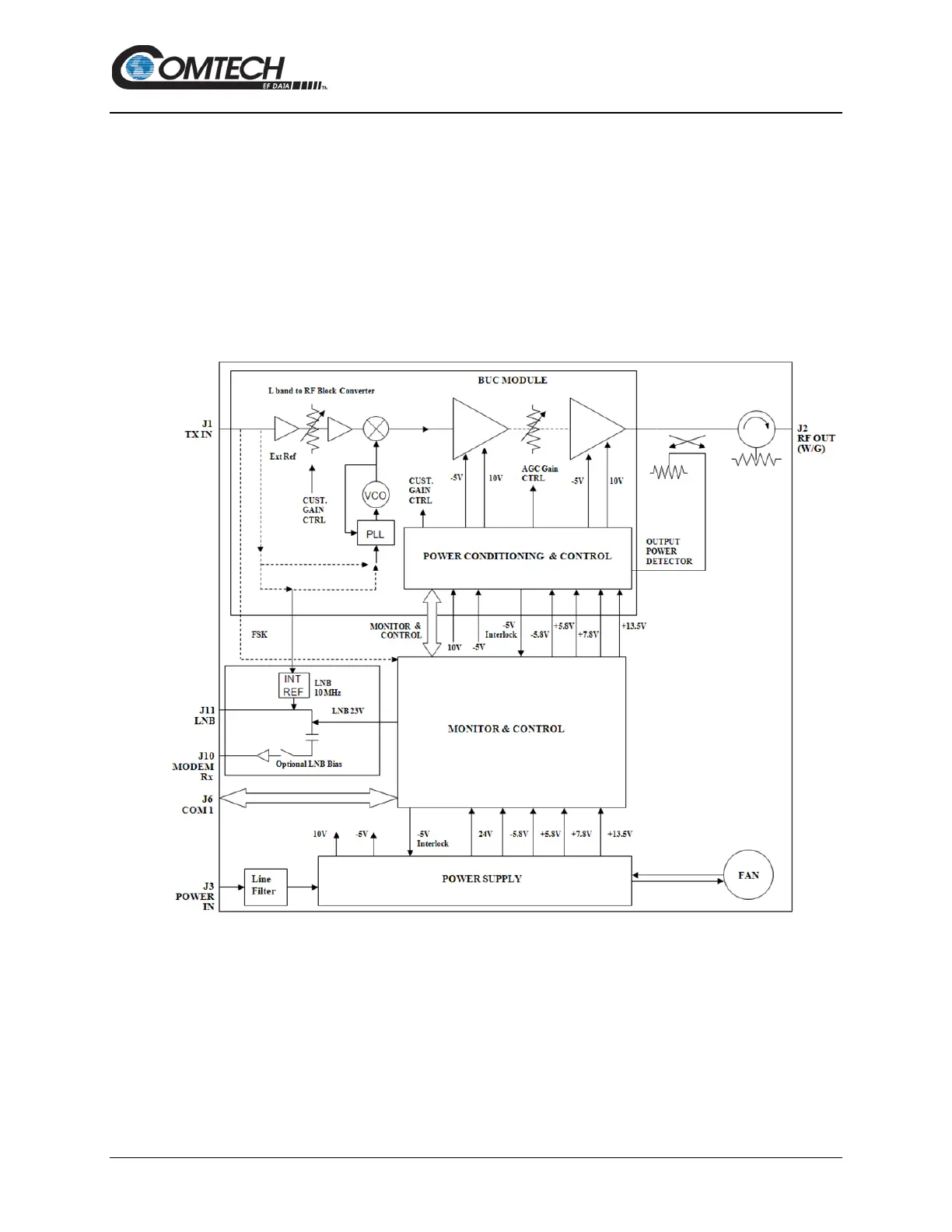

Figure 1-2. LPOD PS 1 and PS 1.5 Block Diagram
