Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
System Connectors, Installation, and Startup 2–5 MN-LPOD

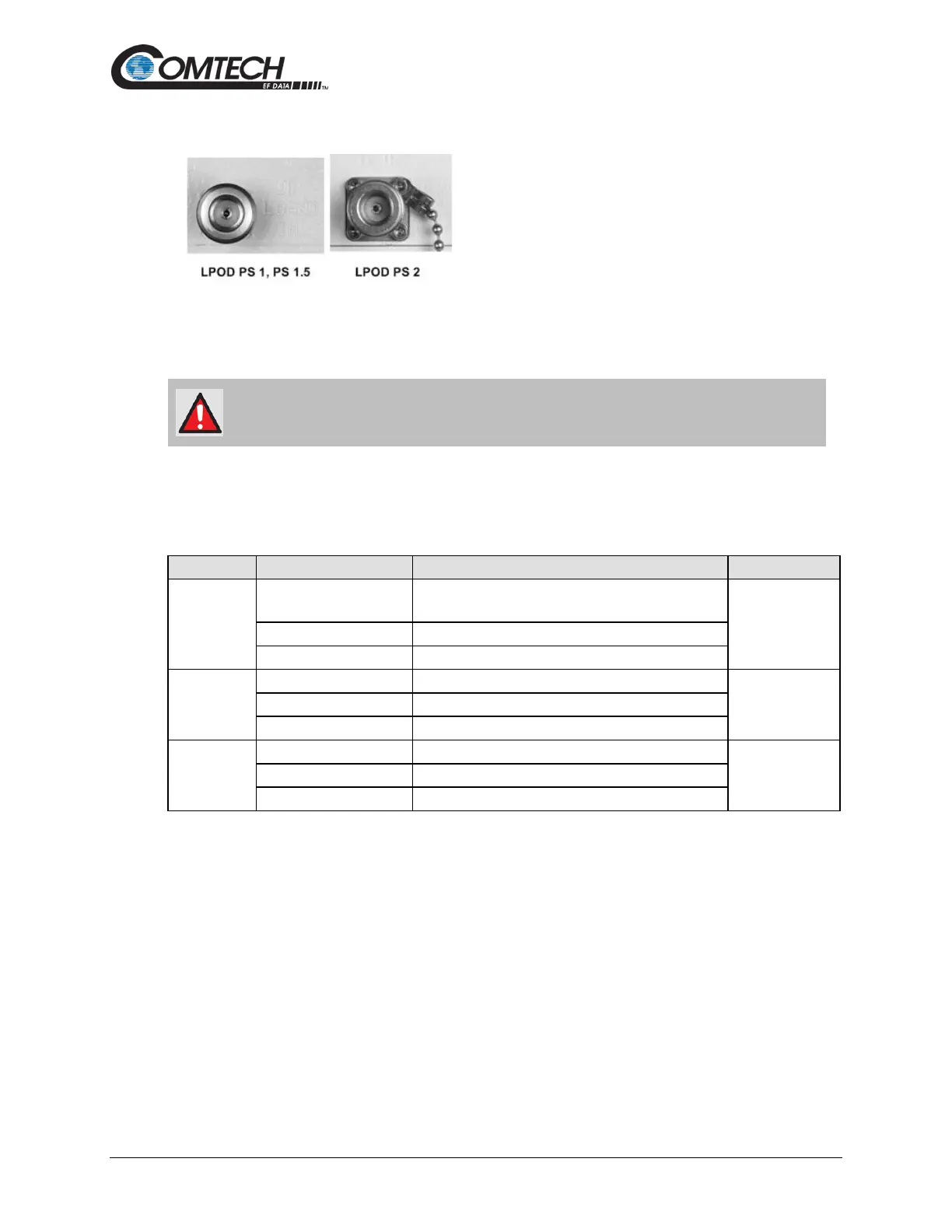

2.3.1 Connector ‘J1 | LBAND IN’ or ‘J1 | Tx IN’
The RF input connector is a Type ‘N’ female
connector. Labeled ‘J1 | LBAND IN’ on the PS 1 and
PS 1.5 models or ‘J1 | Tx IN’ on the PS 2 model,
typical input levels (-30 dBm), depend on desired
output power and unit attenuation. To prevent damage
to the LPOD, RF input levels should not exceed +15
dBm.
2.3.2 Connector ‘J2 | RF OUT’
FOR SAFETY REASONS, NEVER LOOK DIRECTLY INTO THE WAVEGUIDE
OUTPUT.
The ‘J2 | RF OUT’ connector may be a waveguide or coaxial interface – the type of interface
used depends on the LPOD model and/or frequency range of the unit. See Table 2-1 and
Figure 2-2, Figure 2-3, or Figure 2-4.
Table 2-1. ‘J2 | RF OUT’ Interface Type
Unit
Frequency Band
Output Type
Figure
PS 1
C
Type ‘N’ Female (Standard)
CPR137G (Optional)
2-3
X
CPR112G (Waveguide)
Ku
WR75 (Waveguide)
PS 1.5
C
CPR137G (Waveguide)
2-4
X
CPR112G (Waveguide)
Ku
WR75 (Waveguide)
PS 2
C
CPR137G (Waveguide)
2-5
X
CPR112G (Waveguide)
Ku
WR75 (Waveguide)
