Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
System Connectors, Installation, and Startup 2–13 MN-LPOD
2.3.6 Connector ‘J9 | OUTPUT SAMPLE’ (PS 2 Only)
The ‘J9 | OUTPUT SAMPLE’ port is a Type ‘N’ female connector
available only on the PS 2 model. It provides a nominal -40 dB sample of
the output signal. A calibration label is provided near the connector that
shows the actual coupling values vs. frequency.
2.3.7 Connectors ‘J10 | MODEM Rx’ and ‘J11 | LNB’ (Optional Interfaces)
The ‘J10 | MODEM Rx’ and ‘J11 | LNB’ ports are both Type ‘N’ female connectors, providing
both bias and a reference signal to an LNB, and passing the LNB’s L-Band output to the modem’s
Rx input.

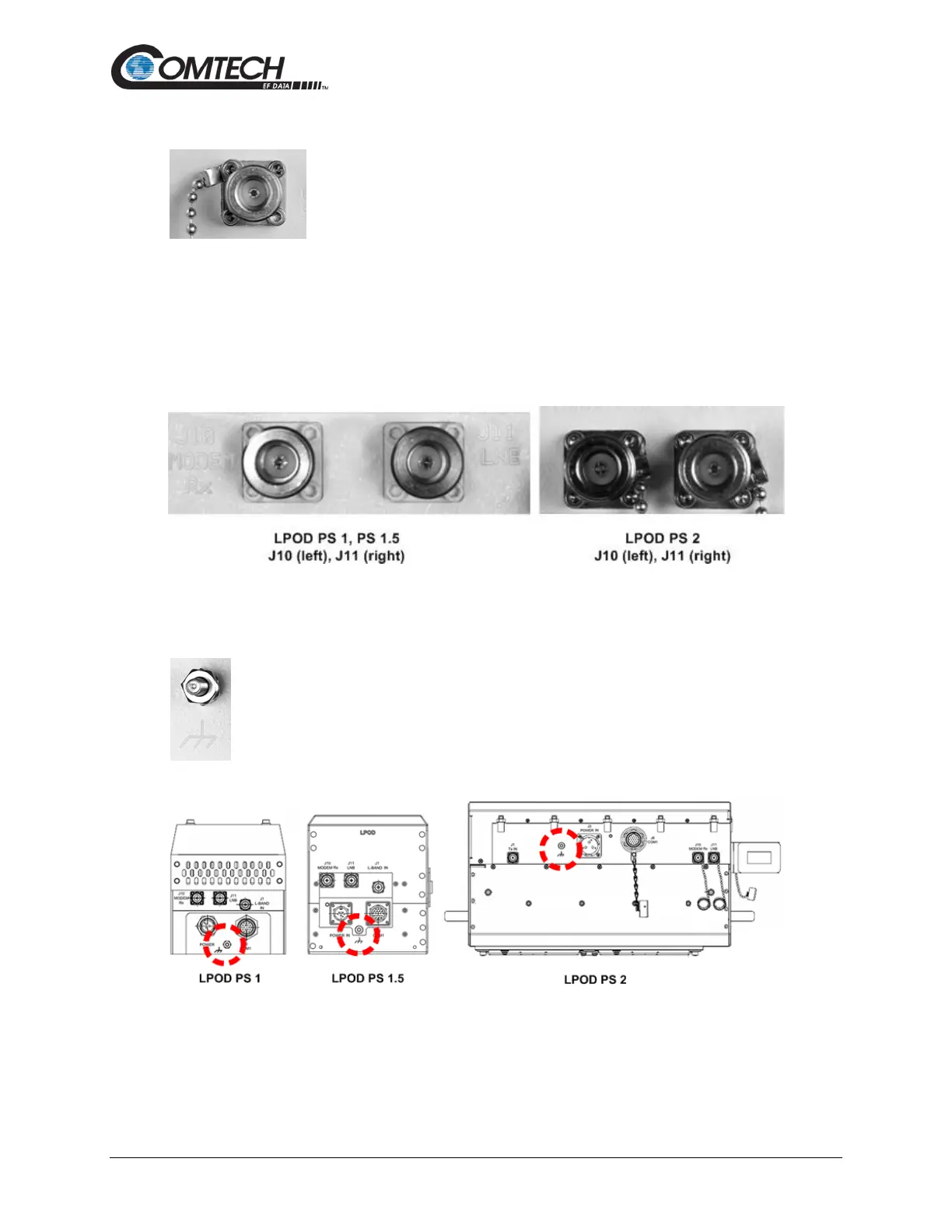

Figure 2-6. ‘J10 | Modem Rx’ and ‘J11 | LNB’ Connectors
2.3.8 Ground Connector
Use this #10-32 stud, available where shown in Figure 2-7, to connect a common
chassis ground among equipment.
Figure 2-7. Ground Connector Locations
