Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)

Revision 15

Ethernet Interface Operation 4–14 MN-LPOD

4.5 HTTP Interface Page Examples and Descriptions

Chapter 5. SERIAL INTERFACE OPERATION

The page figures provided in this section are intended for reference only. Your

setup will differ.

4.5.1 Home Pages

Click Home, Contact, or Support to continue.

4.5.1.1 Home | Home

Use this page to identify the product. Click the Home navigation tab or the page hyperlink to

return to this page from anywhere in the HTTP Interface.

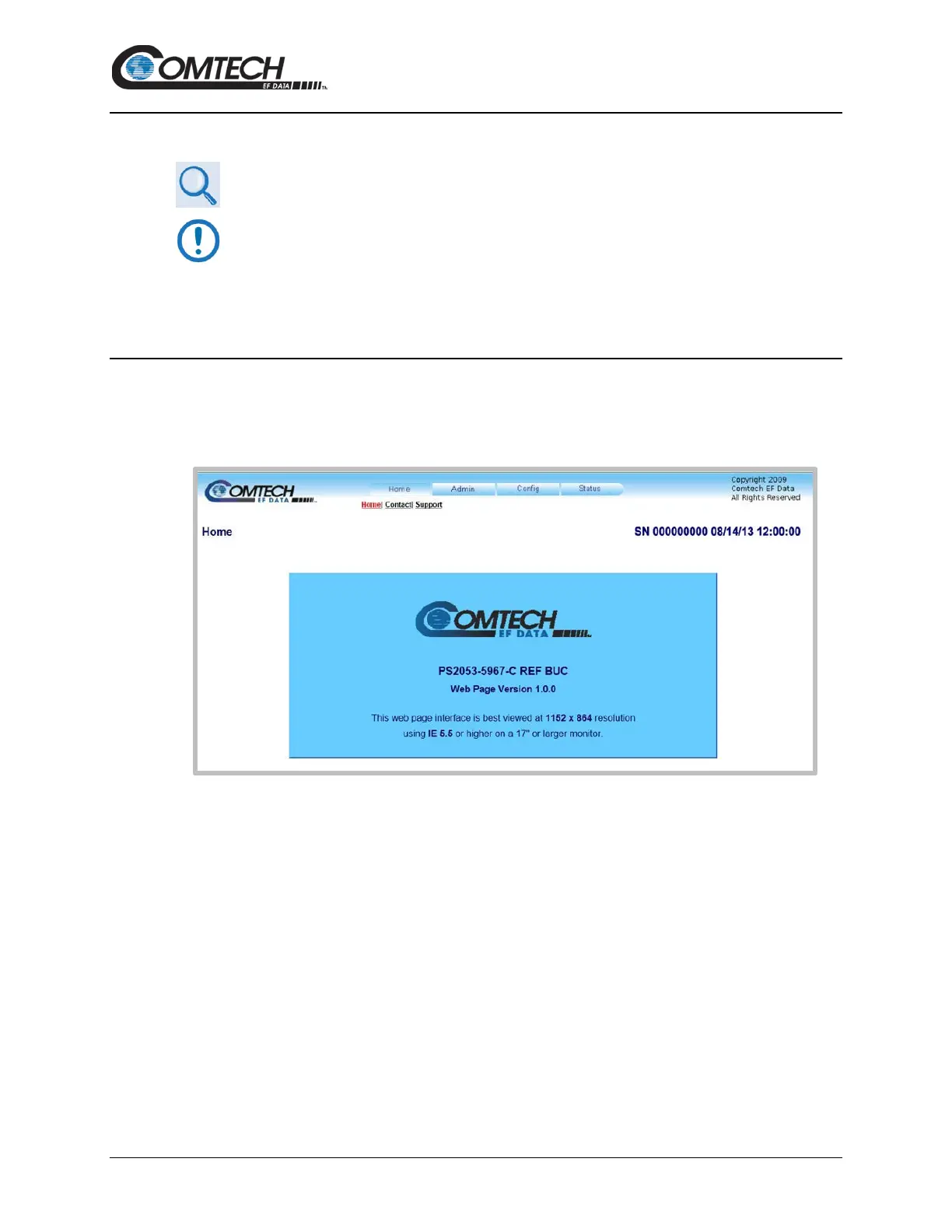

Figure 4-6. LPOD ‘Home | Home’ Page (PS .5 Unit Example Shown)
