Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)

Revision 15

Appendix B B-5 MN-LPOD

B.2.3 19-Pin COMMS Cable (100’)

This cable connects between your designated data interface and the Redundant Loop Cable’s ‘J1’ connector in 1:1 Redundancy

applications, or the ‘J6 | COM 1’ port on a Standalone LPOD.

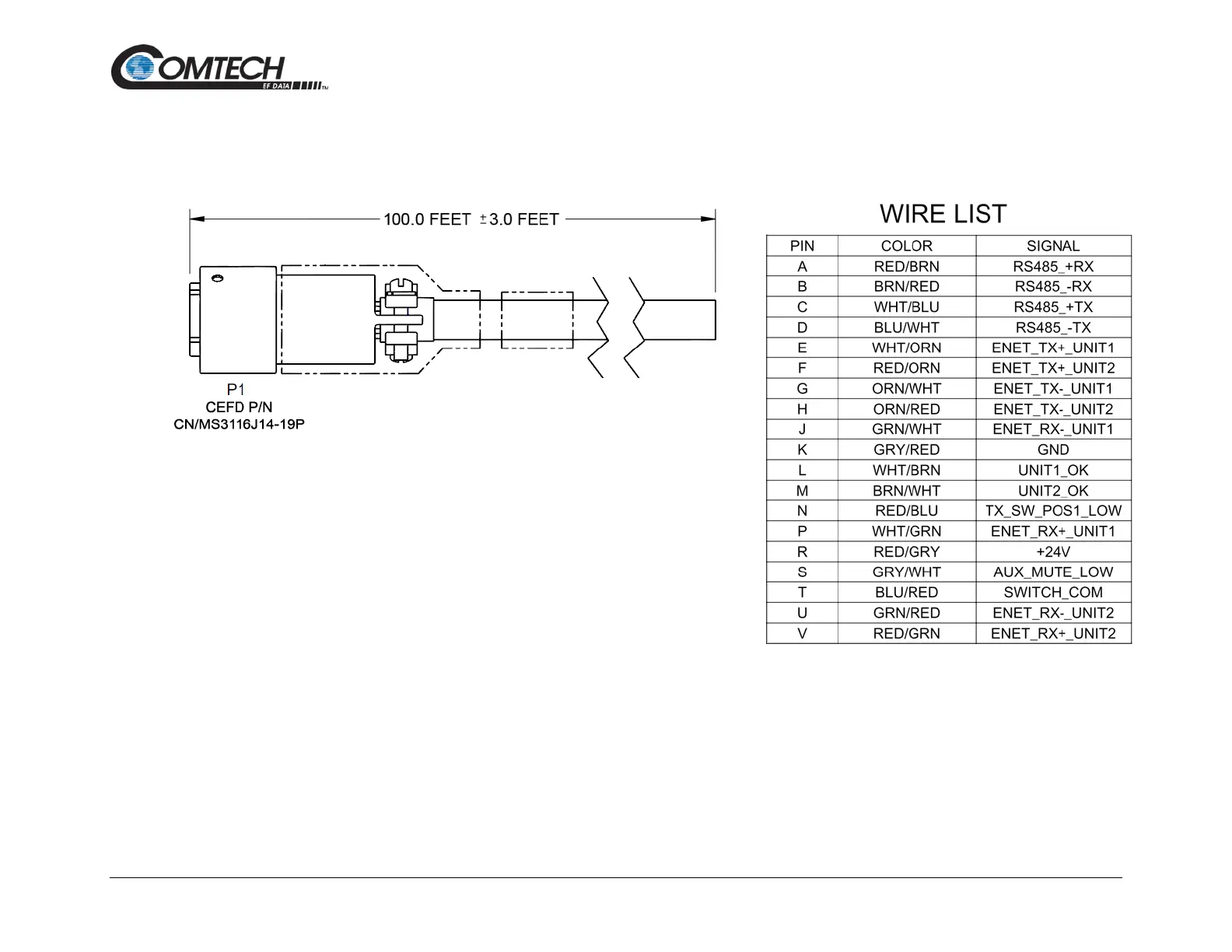

Figure B-3. COMMS Cable, 100’ (CEFD P/N CA-0000318)
