B.2.5 Redundant Loop Cable – Rx / Tx

Use the CA-0020657 Redundant Loop Cable for interconnection of 1:1 Redundancy Rx / Tx applications. Use the ‘J1’ connector to connect

to your M&C interface. See the CONNECTOR LIST table in Figure B-5 for routing the remaining connectors.

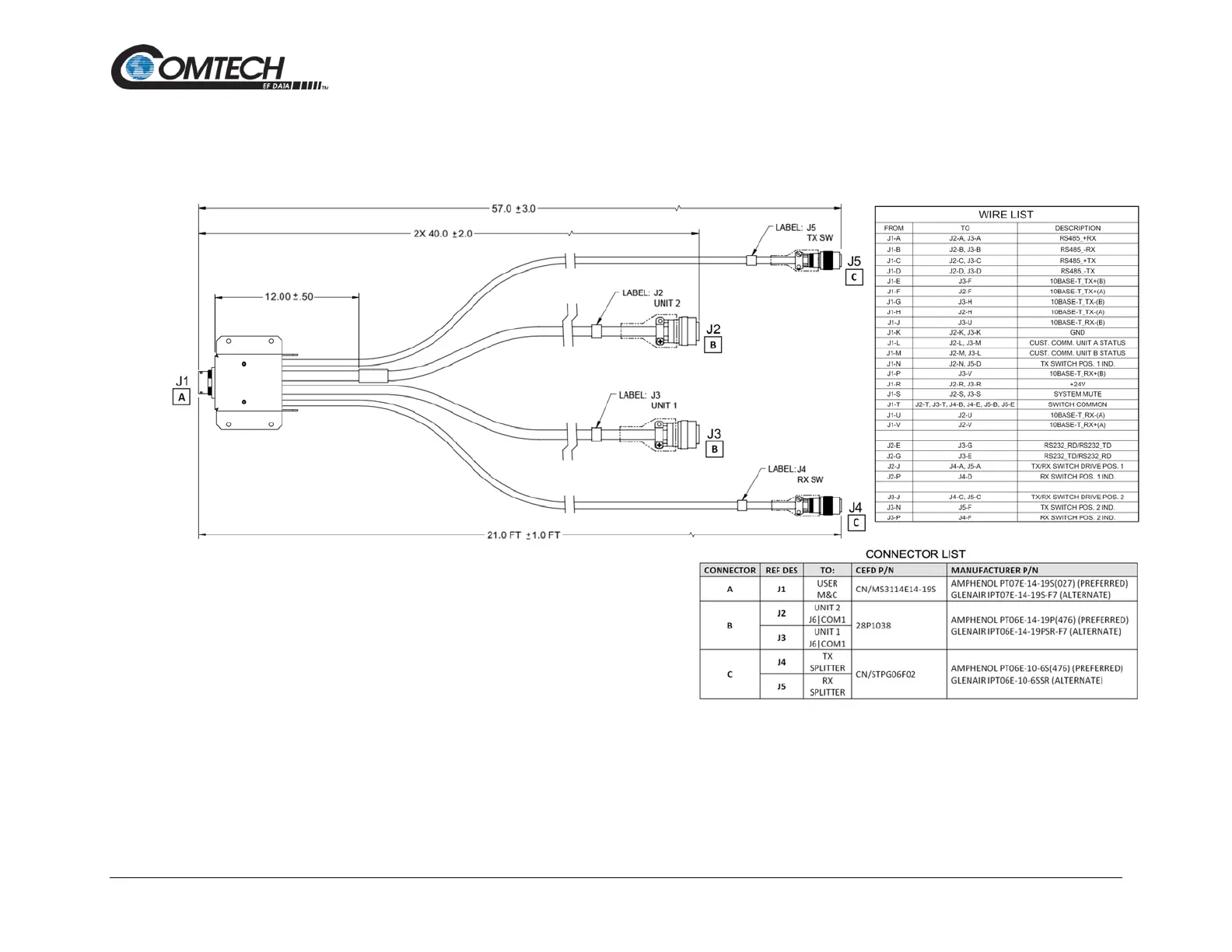

Figure B-5. Redundant Loop Cable – Rx / Tx (CEFD P/N CA-0020657)
