Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)
Revision 15
System Connectors, Installation, and Startup 2–4 MN-LPOD
2.3 Connectors and Cables
The LPOD external connectors provide all necessary connections between the PS 1 (Figure 2-2),
PS 1.5 (Figure 2-3), or PS 2 (Figure 2-4) models and other equipment.

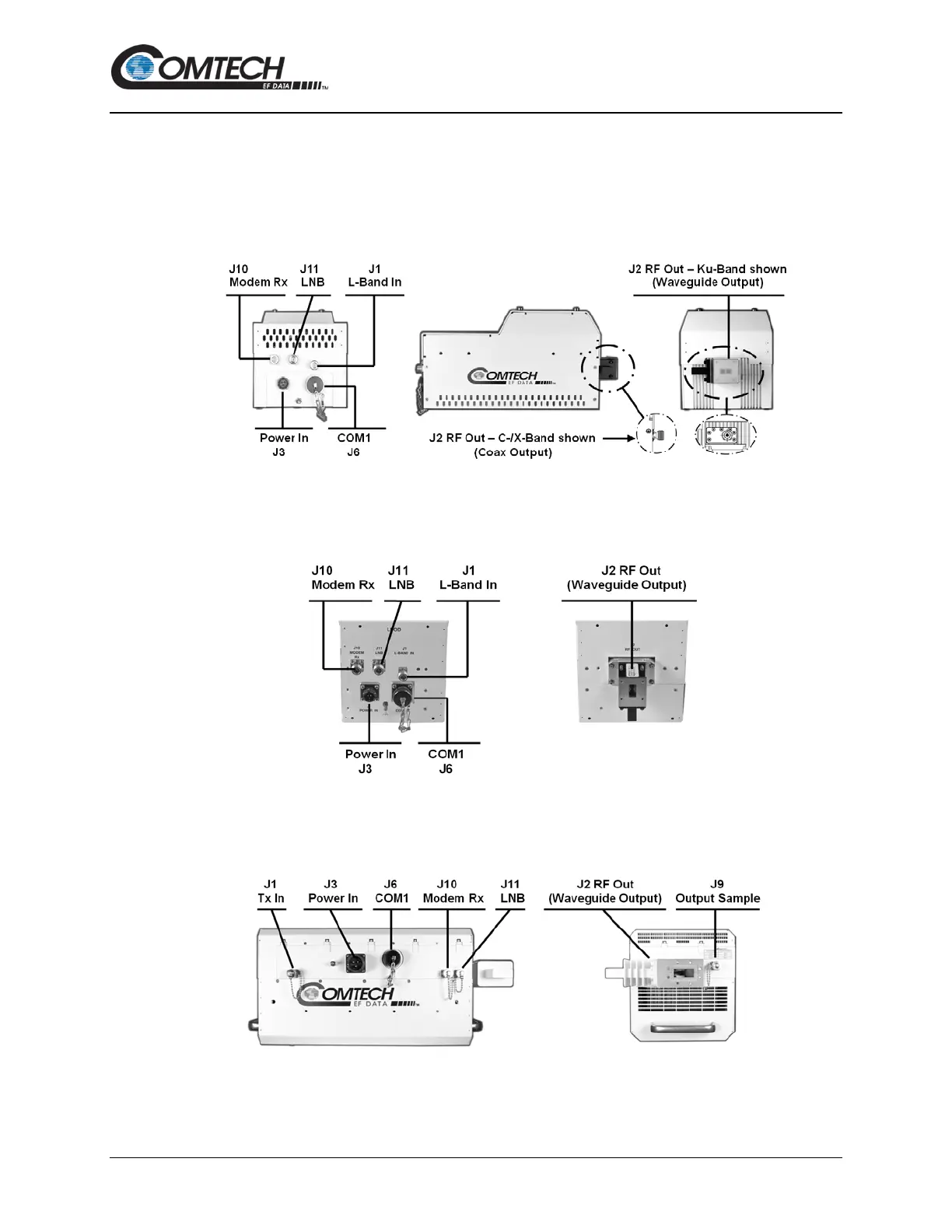

Figure 2-2. PS 1 Connectors
Figure 2-3. PS 1.5 Connectors
Figure 2-4. PS 2 Connectors
