Low Power Outdoor (LPOD) Amplifier/Block Up Converter (BUC)

Revision 15

Appendix B B-8 MN-LPOD

B.2.6 Redundant Loop Cable – Tx Only

Use the CA-0020655 Redundant Loop Cable for interconnection of 1:1 Redundancy Tx-only applications. Use the ‘J1’ connector to connect

to your M&C interface. See the CONNECTOR LIST table in Figure B-6 for routing the remaining connectors.

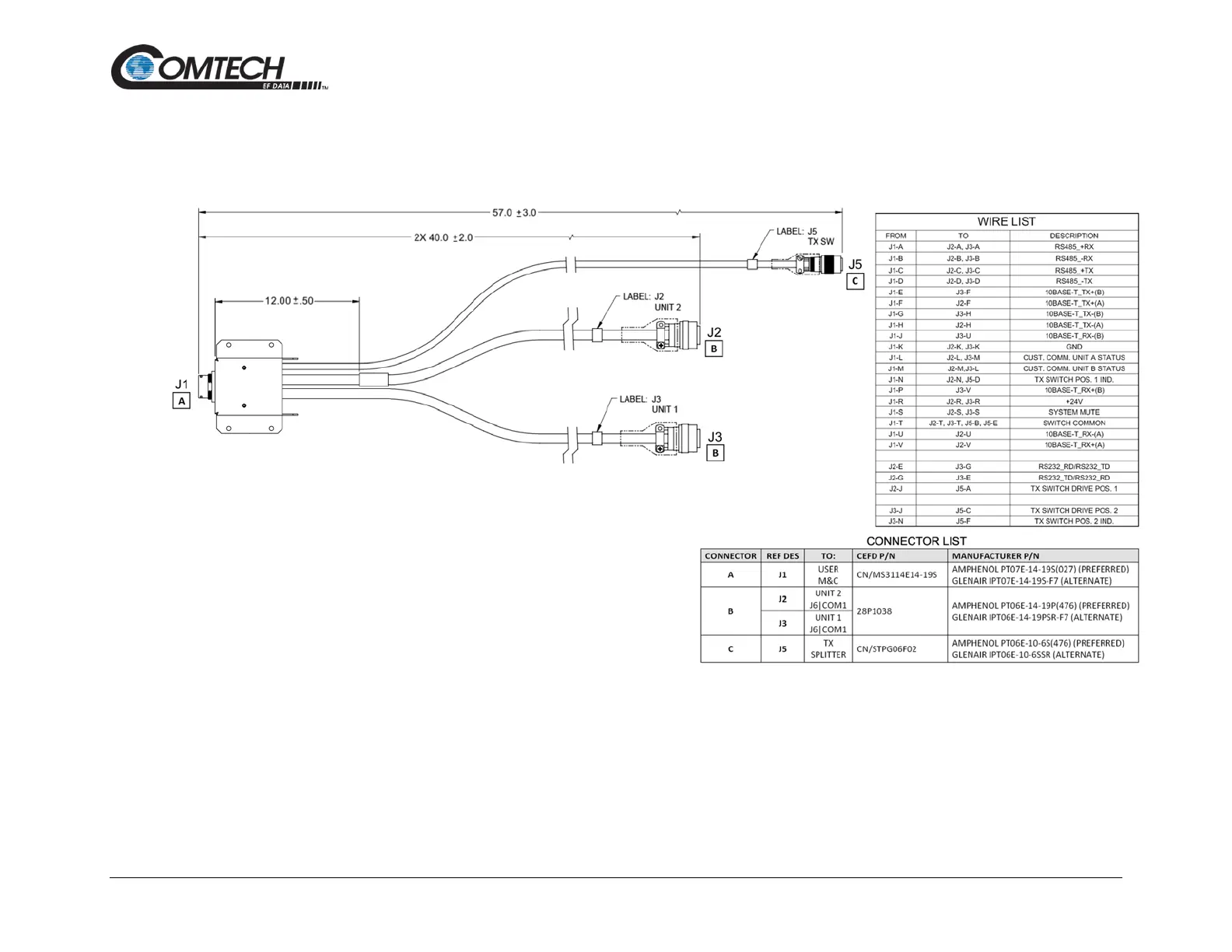

Figure B-6. Redundant Loop Cable –Tx Only (CEFD P/N CA-0020655)
