Condair Mk5 - System Components and Function

8

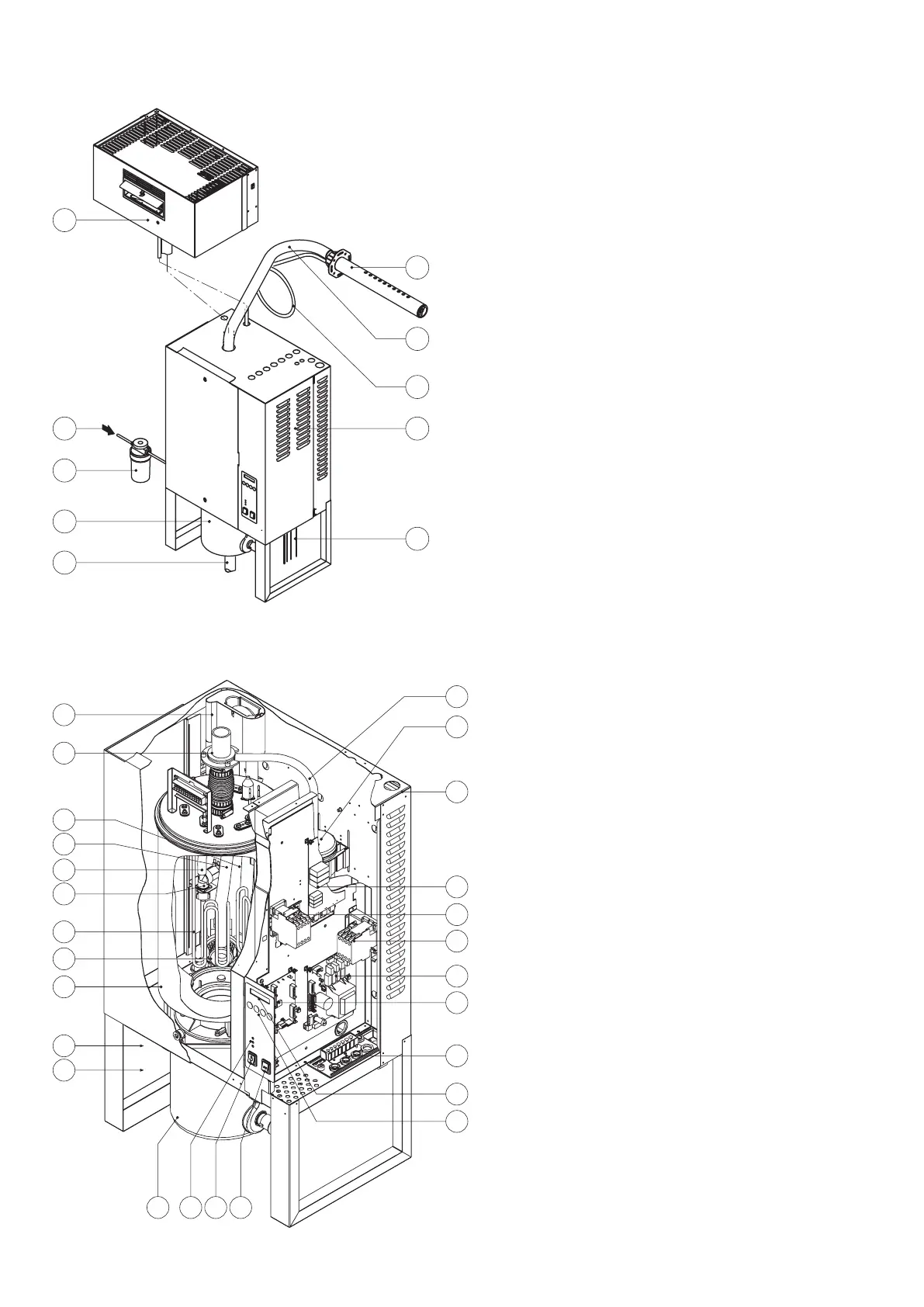

3.3 Humidication system overview
 1 Steamhumidier
2 Electrical connections
3 Water drainage
 4 Limecollectortank(onlyonunitsforoperation
with untreated drinking water)
5 Filter valve (accessory “Z261”)
6 Water supply (building side)
7 Fan unit (accessory “FAN..”)
8 Condensate hose (accessory “KS10”)
9 Steam hose (accessory “Z10”)
10 Steam distribution pipe (accessory “81–...”)
3.4 Steam humidier construction
1 Housing (500 or 600)
2 Power board
3 Heating contactor (Visual >10 kg/h only)
4 Mains contactor
5 Supply module
6 Control board
7 Cable openings
8 LC-Display
9 Control keys
10 Unit switch
11 Drain switch
12 Status indicator (LED)
13 Limecollectortank(onlyonunitsforoperation
with untreated drinking water)
14 Drain
15 Water connection
16 Steam cylinder
17 Drain pump
18 Resistance heating element
19 Inletvalvewithlter
20 Water supply
21 Filling pipe
22 Overowpipe
23 Steam outlet connector
24 Water cup
25 Pressure equalizing pipe
26 Level unit
5
6
4
3
7
1
2
10
8
9
23
1
26
2
3
4
5
6
7
8
9
10111213
15
14
17
16
18
19
20
21
22
24
25
