6.5 Setting the operating parameters
YoucanadaptvariousCondairMk5steam-airhumidieroperatingparameterstotheoperatingrequire-
ments on the setting level of the control and display unit. The setting level is protected by an access
codetoguardagainstunauthorizedaccess.
Caution!Thesettingsonthesettinglevelhaveadirectinuenceontheoperatingbehaviorof
thesteam-airhumidier.Thesettingsmustthereforeonlybemadebypersonnelwhoarefamiliar
withthetechniquesofhumidicationandclimaticcontrolandwiththeCondairMk5system.

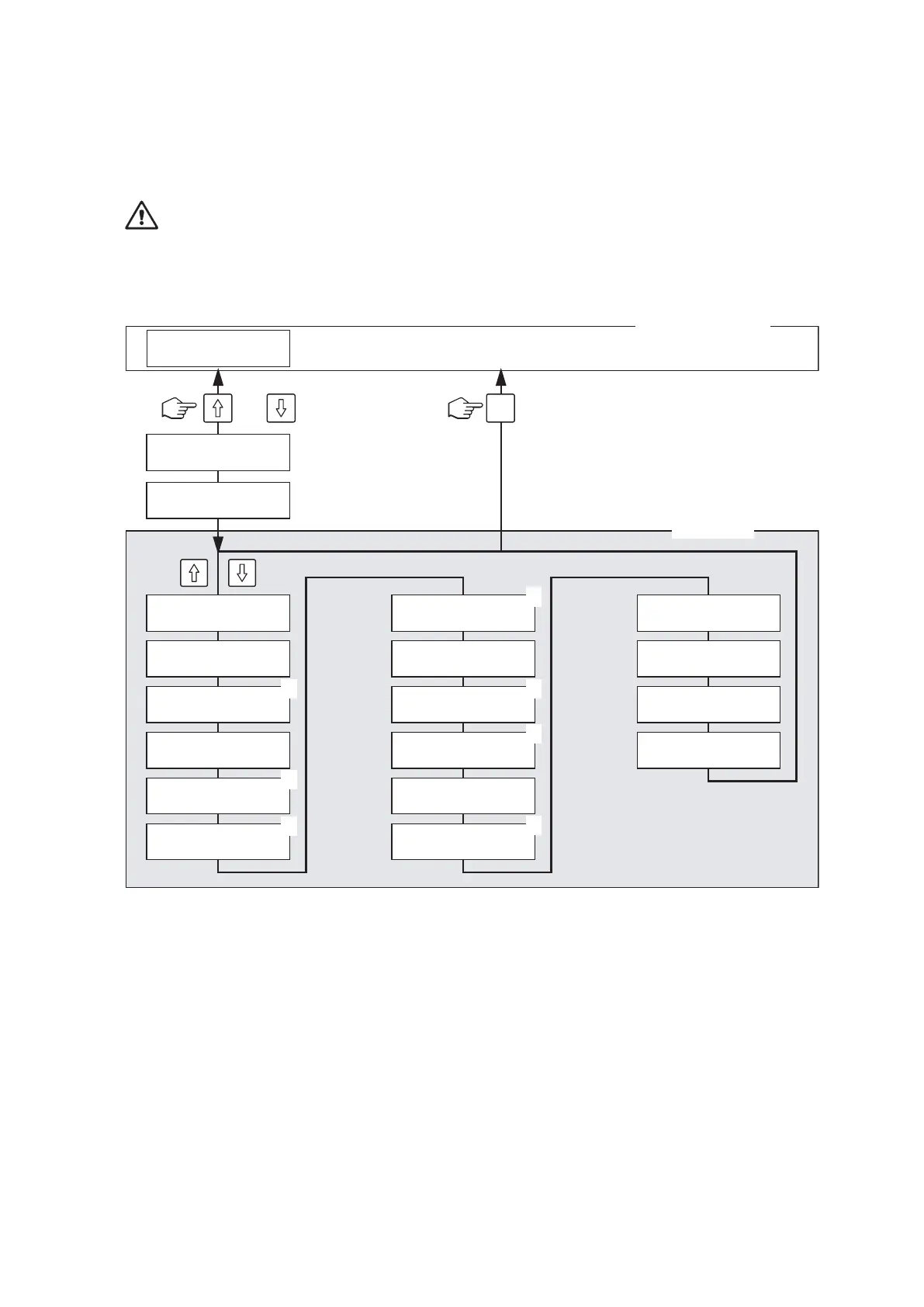

Overview of the setting level and operation
Operation: – Forcall-upofthesettinglevelseethefollowing“Call-upofthesettinglevel”
– <B> Next menu item
– <A> Previous menu item
– For change to set values see the section “Changing the set values”
– Exit the setting level with <Menu>
Note: 1) appears only on Mk5 Process units
 2) appearsonlyif“controllerfunct”isactivate(“on”)
3) appearsonlyif“softstart”isactivate(“on”)
4) appearsonlyif“demineral.mode”isactivate(“on”)
Menu
Modbus address
(Enter=Entry)
diagnose pgm
(Enter=Entry)
faulthistory
. /. /6.B/6.A
erase history
(Enter=Entry)
integr.time[min]
(Enter=Entry)
softstart
(Enter=Entry)
softstart time
(Enter=Entry)
softst. power
(Enter=Entry)
demineral. mode
(Enter=Entry)
demineral. delay
(Enter=Entry)
language
(Enter=Entry)
power limit [%]
(Enter=Entry)
inlet valve cor.
(Enter=Entry)
controller funct
(Enter=Entry)
ref.value rh[%]
(Enter=Entry)
P-band [%]
(Enter=Entry)
adjust level
entry code
8808
Mk5 Visual
ready
1)
2)
3)
3)
2)
4)
2)
Normal service mode
and
Setting level
