Condair RM2 - Construction of the Condair RM Steam Humidifier

11Product Overview
1 Water supply connector G 3/4"
2 Inlet valve
3 Water supply hose
4 Drain pump
5 Water drain connector ø30 mm
6 Water ll and drain hose
7 Level unit
8 Drain hose
9 Filling cup
10 Condensate connector ø10 mm (back to steam tank)
11 Condensate connector ø10 mm (to drain)
12 Steam outlet connector ø30 mm
13 24 V power supply
14 Heating elements
15 Pressure equalizing hose
16 Steam tank
17 Coupling sleeve
18 Level hose
19 Pump hose
20 Manual drain hose
21 Unit switch
22 Status LED
23 Display
24 Specication label
25 RM control board
26 Terminals voltage supply ("L1", "L2", "L3" and "PE")
27 Heating contactor
28 Terminals voltage supply ("N")
29 Over temperature switch

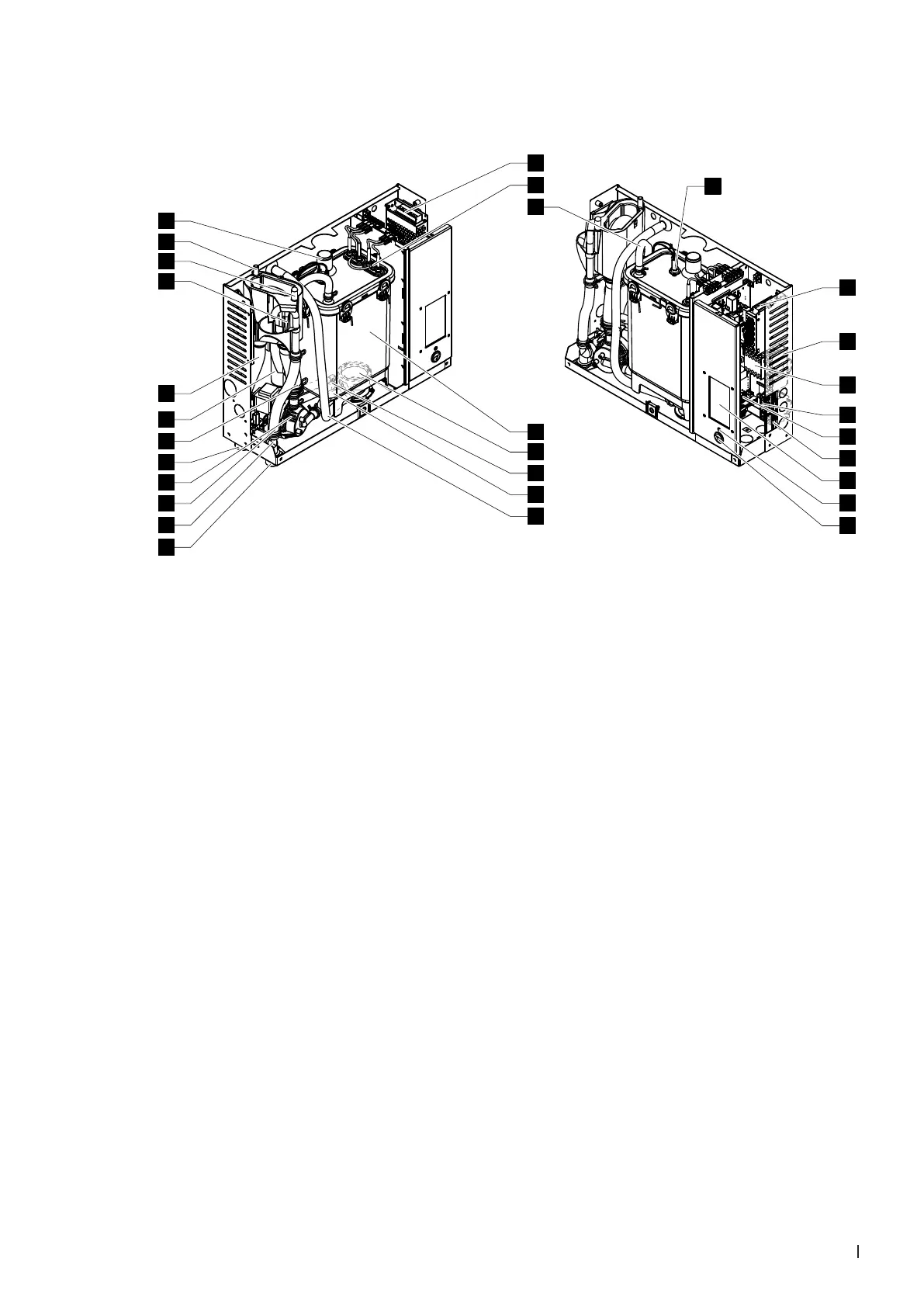

Fig. 2: Construction Condair RM steam humidier
3.3 Construction of the Condair RMsteamhumidier
1
2
3
6
4
5
7
9
11
12
10
8
20
19
18
13
15
14
25
27
26
28
13
21
17
16
24
29
23
22
