Condair RM2 - System Overview Condair RM

13Product Overview
KS10
DS60
Z261
DV61
1
2
3
4
5
6
13
21
12
11
10
7
9
17
14
16
15
20
18
19
8
Condair RO-A pure water
system (shown scaled
down), details see sepa-
rate manual
3.5 System overview Condair RM
1 Steam humidier
2 Condensate connector ø10 mm (to drain)
3 Condensate connector ø10 mm (back to steam tank)
4 Steam outlet connector ø22 mm
5 Water drain connector ø30 mm
6 Water supply connector G 3/4"
7 Water supply line (by others)
8 Filter cartridge (accessory)
9 Manometer (recommended, by others)
10 Filter valve (accessory "Z261")
11 Open funnel with water trap (by others)
12 Drain hose (by others)
13 Electrical isolator voltage supply
14 Steam hose (accessory "DS60")
15 Condensate hose (accessory "KS10)
16 Steam distributor (accessory "DV61-...)
17 Air ow monitor (by others)
18 Maximum humidistat
19 Humidity controller or humidity sensor (supply air control)
20 Humidity controller or humidity sensor (extract air control)
21 Pure water system Condair RO-A (separate product)

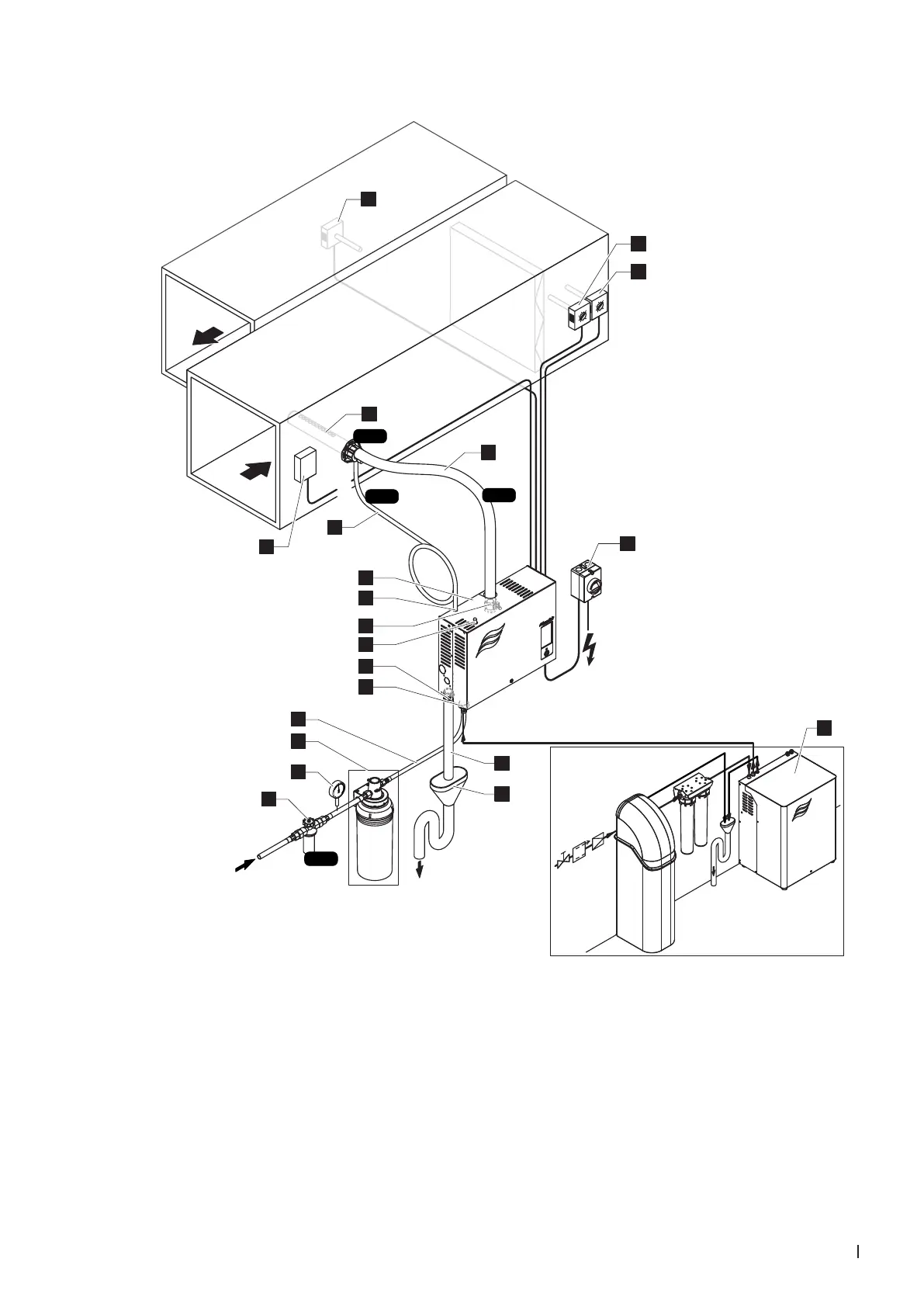

Fig. 3: System overview Condair RM
Return Duct
Supply duct
