Condair RM2 - Filling Cup, Level Unit, and Hoses Removal

42 Maintenance
7.4.3 Removalandinstallationofthellingcup,thelevelunitandthewaterhoses
For removing the lling cup, the level unit and the water hoses the steam tank must be removed rst
(see chapter 7.4.2).

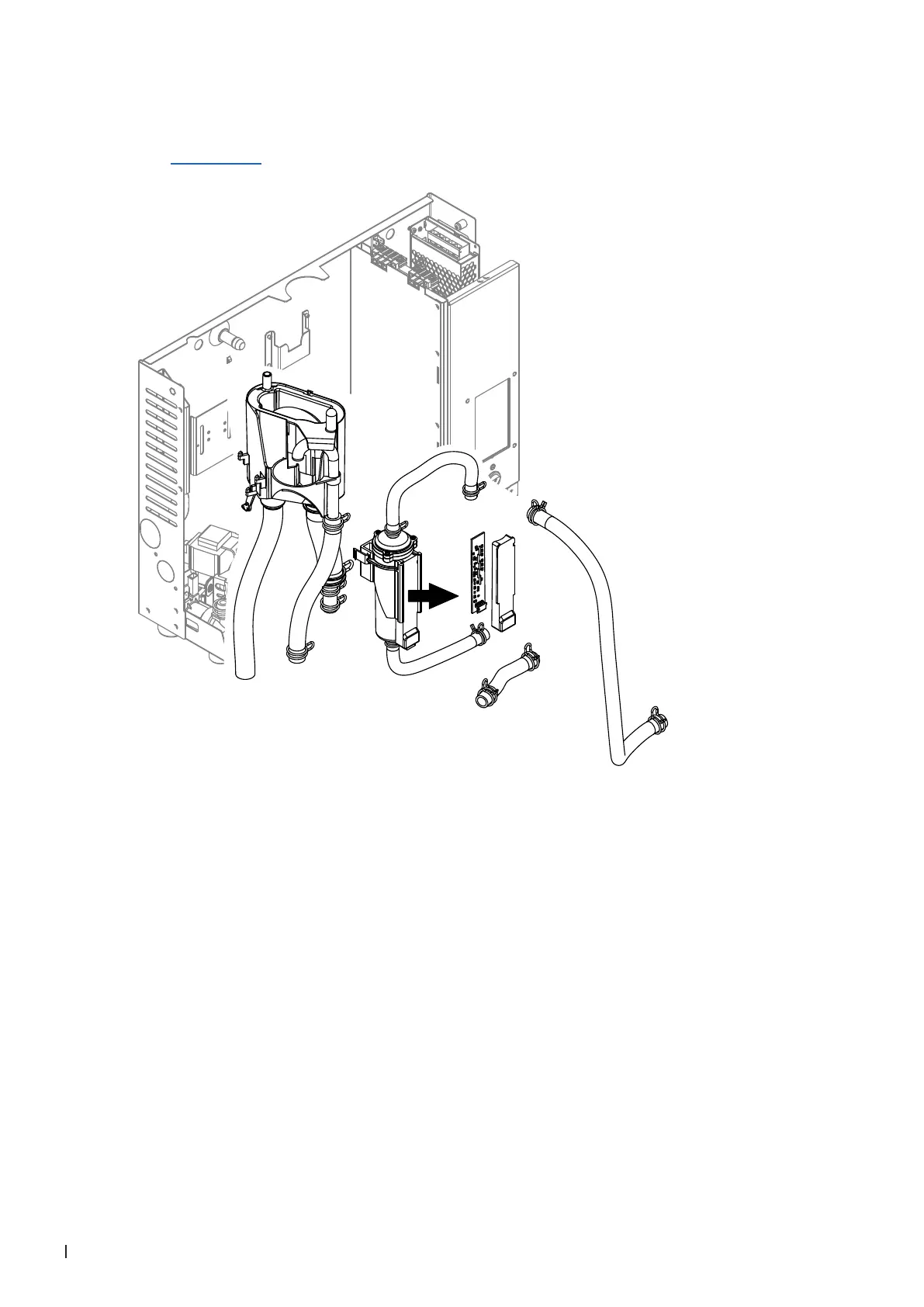

Fig. 8: Removal of the lling cup, the level unit and the water hoses
1. Release hose clamps, then disconnect all hoses from the corresponding connectors and remove
the hoses.
Note: The hoses connected to the lling cup and the level unit may also be removed together with
the lling cup and the level unit (see illustration) and then disconnected from the connectors outside
the unit.
