7.4.6 Removal and installation of the steam tank receptacle
For removing the steam tank receptacle the steam tank must be removed rst (see chapter 7.4.2).
1
2
4
5
3
A
B

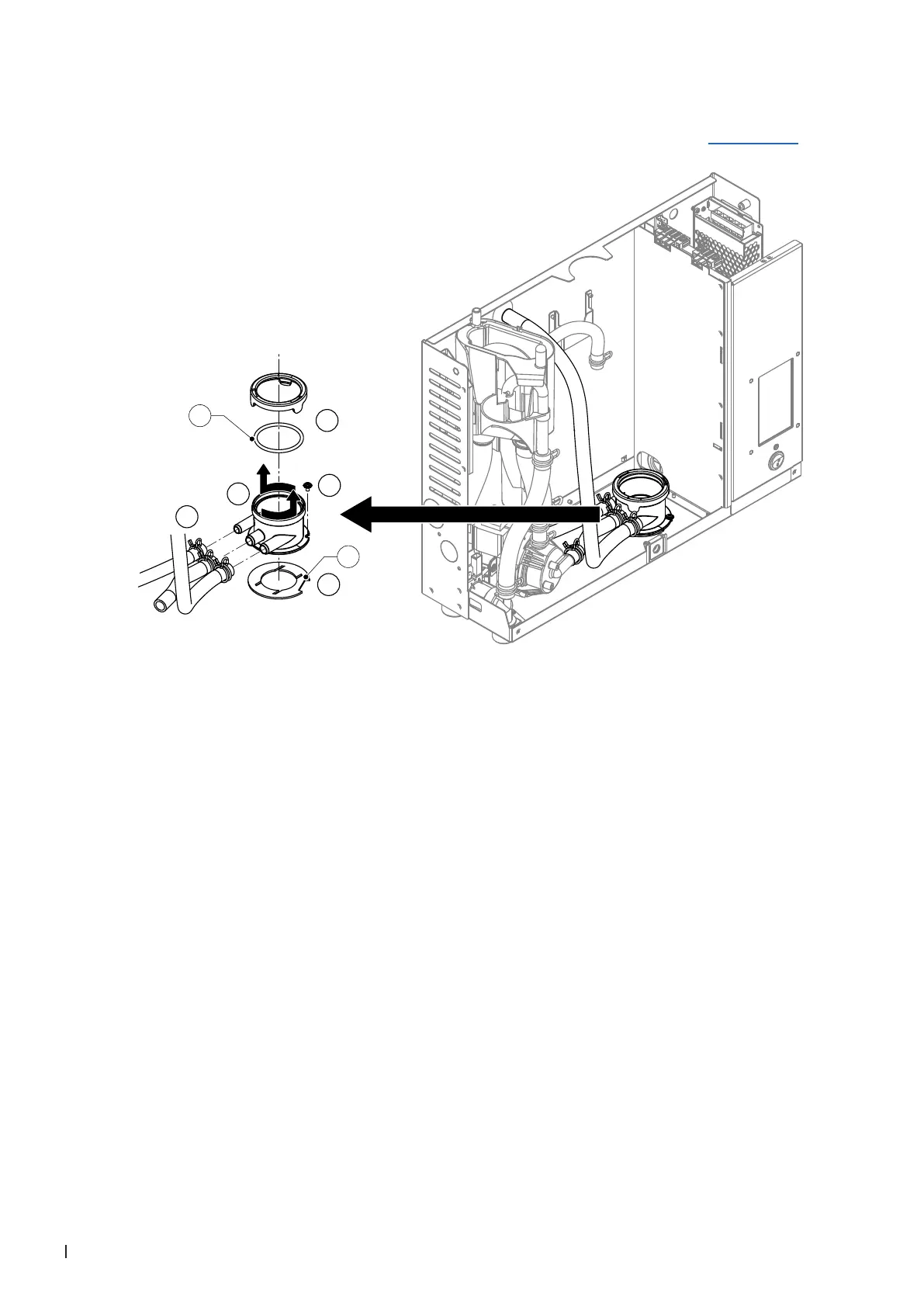

Fig. 12: Removal of the steam tank receptacle
1. Release hose clamps and remove hoses from the connectors.
2. Undo the screw xing steam tank receptacle to the bottom of the housing with Phillips screwdriver.
3. Turn steam tank receptacle counterclockwise to the stop and remove steam tank receptacle upwards.
4. Remove snap ring and O-ring "A".
5. Remove gasket "B" on the bottom side of the steam tank receptacle.
The installation of the steam tank receptacle follows the reverse sequence of the removal. Before mount-
ing the steam tank receptacle, check O-ring "A", snap ring and gasket "B" for damage and replace if
necessary.
