Menu 5
Mentor MP Advanced User Guide 81
Issue Number: 4 www.controltechniques.com
Setup Sequence

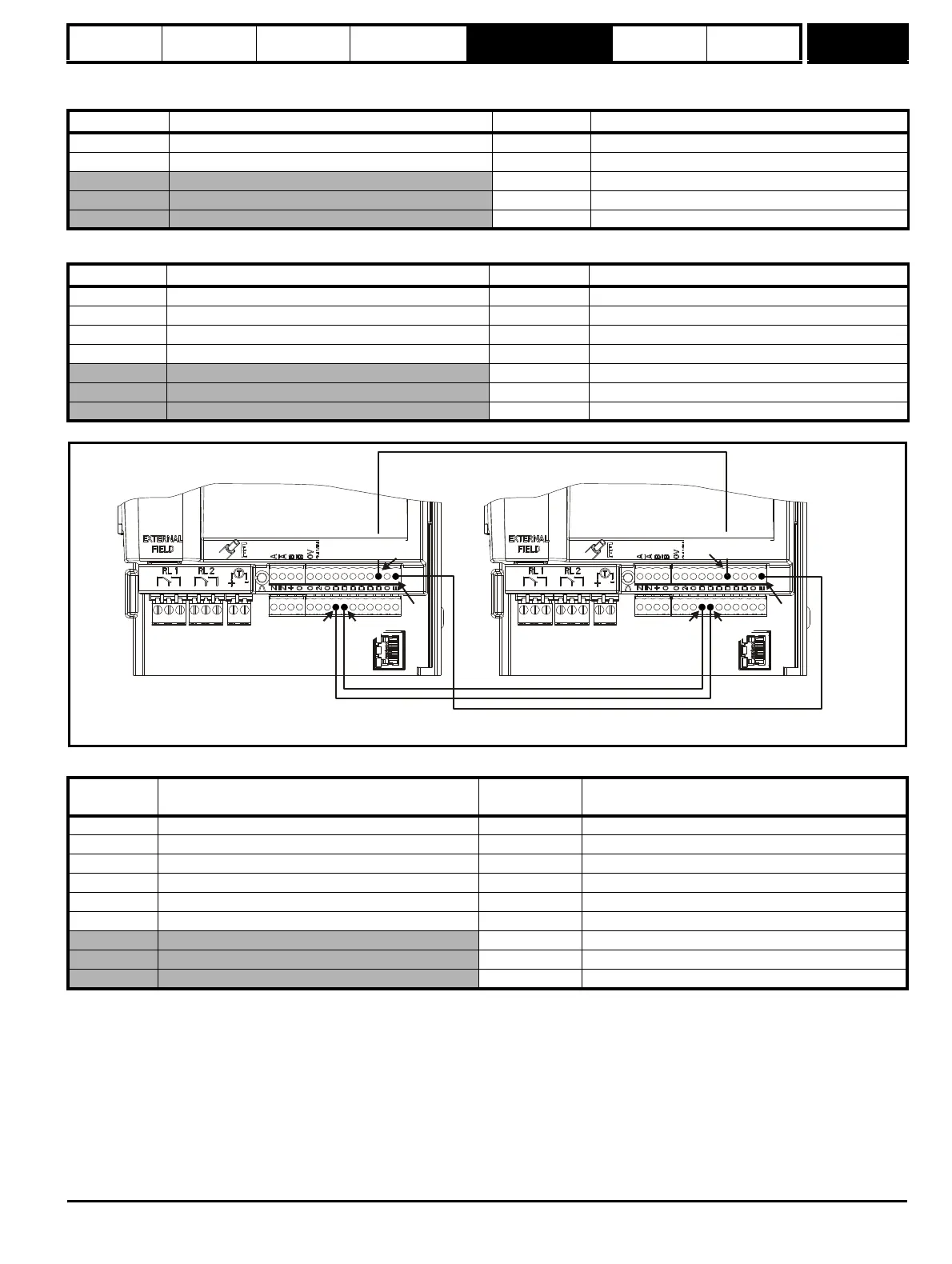

Table 5-3 Parallel 12 Pulse, 2Q Using I/O Connections
Table 5-4 Parallel 12 Pulse, 4Q Using IO Connections
Figure 5-8 Master Slave control connection detail for 12 pulse
Table 5-5 Parallel 24 pulse 4Q Using I/O connections
Master Setting Description Slave Setting Description
Pr 7.19 = 4.04 Analog output 1 to output current demand Pr 7.14 = 4.08 Analog input 2 to be torque input
Pr 5.43 = 1 Armature mode to parallel 12 pulse Pr 4.11 = 1 Select torque mode
Pr 5.43 = 1 Armature mode to parallel 12 pulse
Pr 10.52 = 168 Mask field loss trip
Pr 10.62 = Off Mask field loss trip
Master Setting Description Slave Setting Description
Pr 7.19 = 4.04 Analog output 1 to output current demand Pr 7.14 = 4.08 Analog input 2 to be torque input
Pr 8.21 = 5.44 Digital output to master bridge selected Pr 8.21 = 5.44 Digital output to master bridge selected
Pr 8.22 = 5.45 Digital input 2 to slave bridge selected Pr 8.22 = 5.45 Digital input 2 to slave bridge selected
Pr 5.43 = 2 Armature mode to parallel 12 pulse with bridge lockout Pr 4.11 = 1 Select torque mode
Pr 10.52 = 168 Mask field loss trip
Pr 10.62 = Off Mask field loss trip
Pr 5.43 = 2 Armature mode to parallel 12 pulse with bridge lockout
Master
Setting
Description Slave Setting Description
Pr 7.19 = 4.04 Analog output 1 to output current demand Pr 7.14 = 4.08 Analog input 2 to be torque input
Pr 8.21 = 5.44 Digital output to master bridge selected Pr 8.21 = 5.44 Digital output to master bridge selected
Pr 8.22 = 5.45 Digital input 2 to slave 1 bridge selected Pr 8.22 = 5.45 Digital input 2 to slave 1 bridge selected
Pr 8.25 = 5.46 Digital input 5 to slave 2 bridge selected Pr 8.25 = 5.46 Digital input 5 to slave 2 bridge selected
Pr 8.26 = 5.47 Digital input 6 to slave 3 bridge selected Pr 8.26 = 5.47 Digital input 6 to slave 3 bridge selected
Pr 5.43 = 3 Armature mode to parallel 24 pulse with bridge lockout Pr 4.11 = 1 Select torque mode
Pr 10.52 = 168 Mask field loss trip
Pr 10.62 = Off Mask field loss trip
Pr 5.43 = 3 Armature mode to parallel 24 pulse with bridge lockout
Analog output
1 (Master)
A
I
2
AO2
Master
Slave
T24 T25
T24
T25
NOTE:
Connection to T24 and T25 are only required for 4Q systems.
T9
AI2
T7
A
O
1
0V
T11
0V
T11
