Control Techniques UD70 User Manual

UD70
Issue code: 70nu2
Getting started 3-7

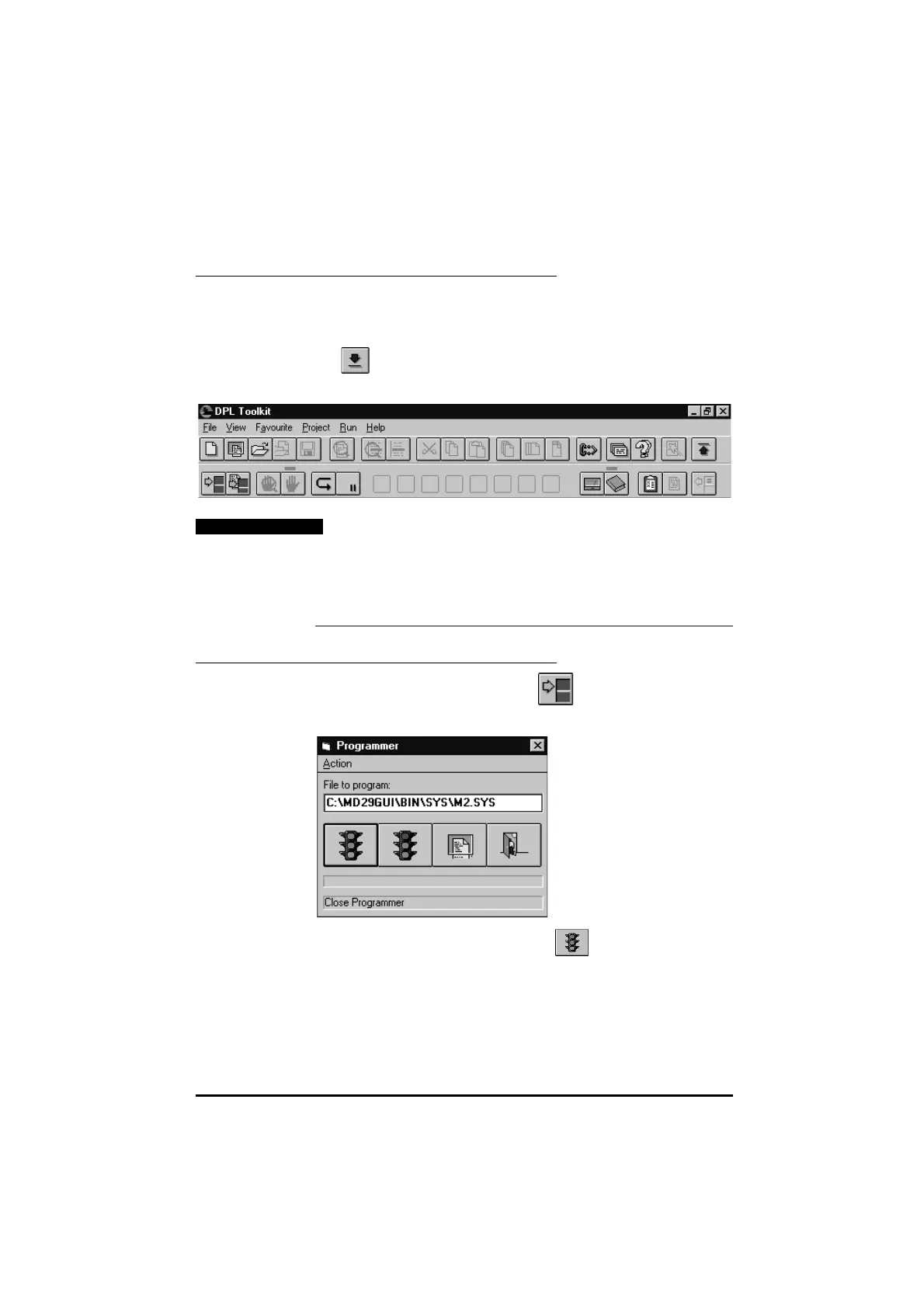

Connecting to the UD70
It is now necessary to establish communications from the host PC to the
UD70 in order to download the compiled file.
Use the following procedure:
Click on
. The Task Manager opens with the Task Manager toolbar
appearing below the standard toolbar.
Note
If all the buttons on the lower toolbar appear shaded, it is
an indication that communications could not be
established with the UD70. Check that AC power is applied
to the Drive, and that the serial communications cable is
correctly inserted.
Downloading the program
1 In the Task Manager toolbar, click on . The ProgrammerProgrammer dialog
box appears.
2 In the ProgrammerProgrammer dialog box, click on (green light showing).
The files
SAWTOOTH..BIN and SAWTOOTH..DPL are now downloaded to
the
UD70. Down-loading takes a few seconds to complete.
