Controls WIZARD 2 50-C92AXX User Manual

Manuale di Istruzione
Instruction Manual
23/08/2018 Rev.1 EN
8
Here is the list of models available and their relevant main specifications:
50-C13A02
WIZARD 2, Semi- Automatic Compact-Line Gen. Util. compression tester, 1500 kN
cap., for cubes up to 150 mm and cylinders up to dia. 160 x 320 mm. 230 V, 50 Hz, 1 ph.
50-C13A03
Same as above but 220 V, 60 Hz, 1 ph.
50-C13A04
Same as above but 110 V, 60 Hz, 1 ph.
50-C23A02
WIZARD 2, Semi- Automatic Compact-Line Gen. Util. compression tester, 2000 kN
cap., for cubes up to 150 mm and cylinders up to dia. 160 x 320 mm. 230 V, 50 Hz, 1 ph.
50-C23A03
Same as above but 220 V, 60 Hz, 1 ph.
50-C23A04
Same as above but 110 V, 60 Hz, 1 ph.
50-C34A02
WIZARD 2, Semi-Automatic Compact-Line Gen. Util. compression tester, 3000 kN cap.,
for cubes up to 200 mm and cylinders up to dia. 160 x 320 mm. 230 V, 50 Hz, 1 ph.
50-C34A03
Same as above but 220 V, 60 Hz, 1 ph.
50-C34A04
Same as above but 110 V, 60 Hz, 1 ph.
The machine must be completed with suitable distance pieces conforming to the
specimen size.
The device must be used in compliance with the procedures described in this manual.
Never use the device for purposes different from those herewith indicated.

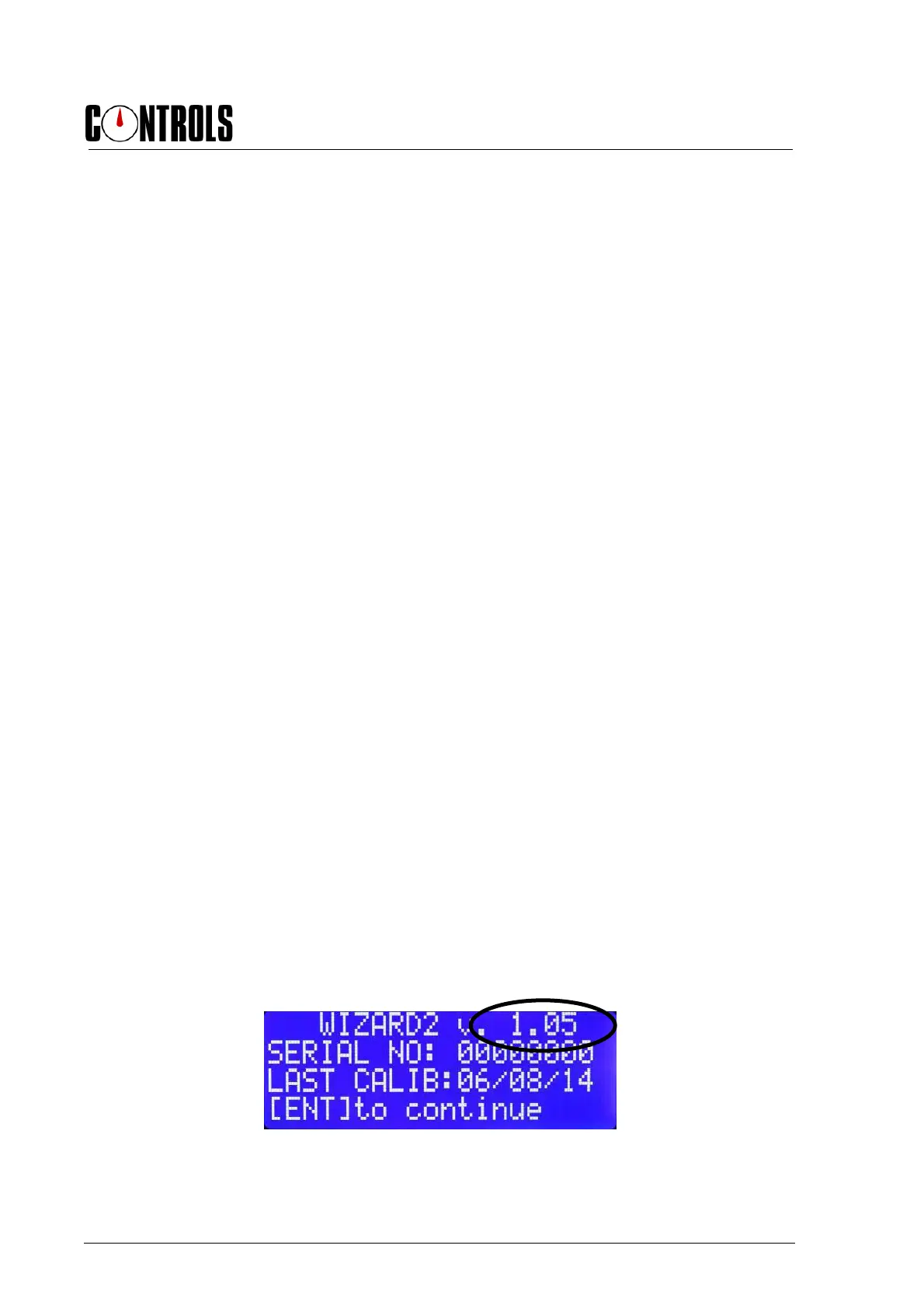

This manual is applicable for units having firmware release equal to/higher than 1.05.
Fig. 1-1
Please read this manual thoroughly before you start using the equipment.

Controls WIZARD 2 50-C92AXX Specifications

General

Brand	Controls
Model	WIZARD 2 50-C92AXX
Category	Laboratory Equipment
Language	English
