2.7.1 Flow control valve

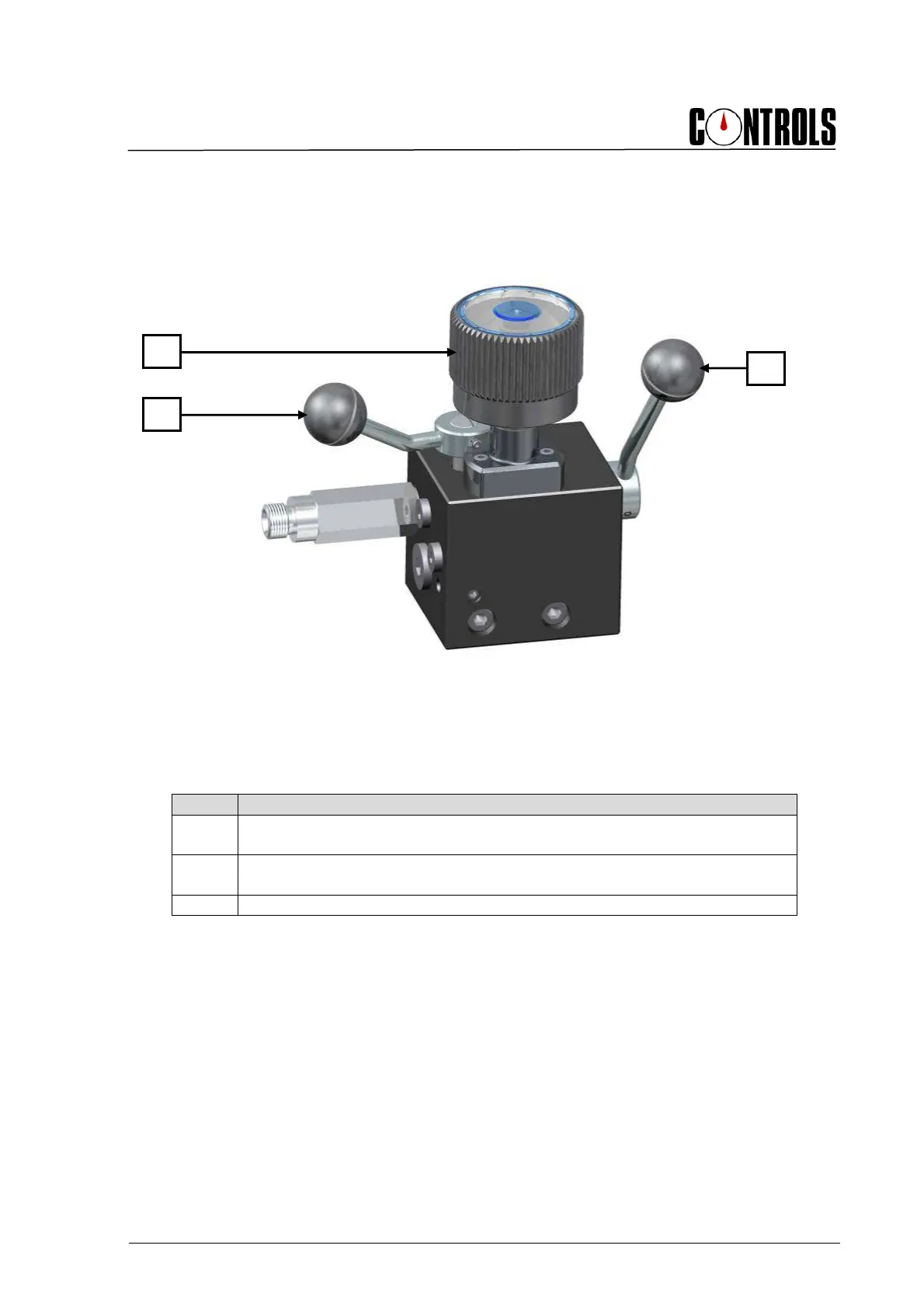

Fig. 2-7
Ref. Description
1
Load gradient adjustment knob (clockwise to decrease; counter clockwise to
in
crease)
2
Flow control lever (back for rapid approach; forward to control load rate with
the load gradient adjustment knob)
3
Oil supply lever (up to recycle oil in the tank; down to supply oil to the p
iston)
1
2
3
