3.4 Mounting the control unit
The control unit assembly is normally shipped dismantled from the frame.
To mount it on the frame:
1. Fit the control unit assembly shaft into the relevant housing on the right-hand side of
the frame;

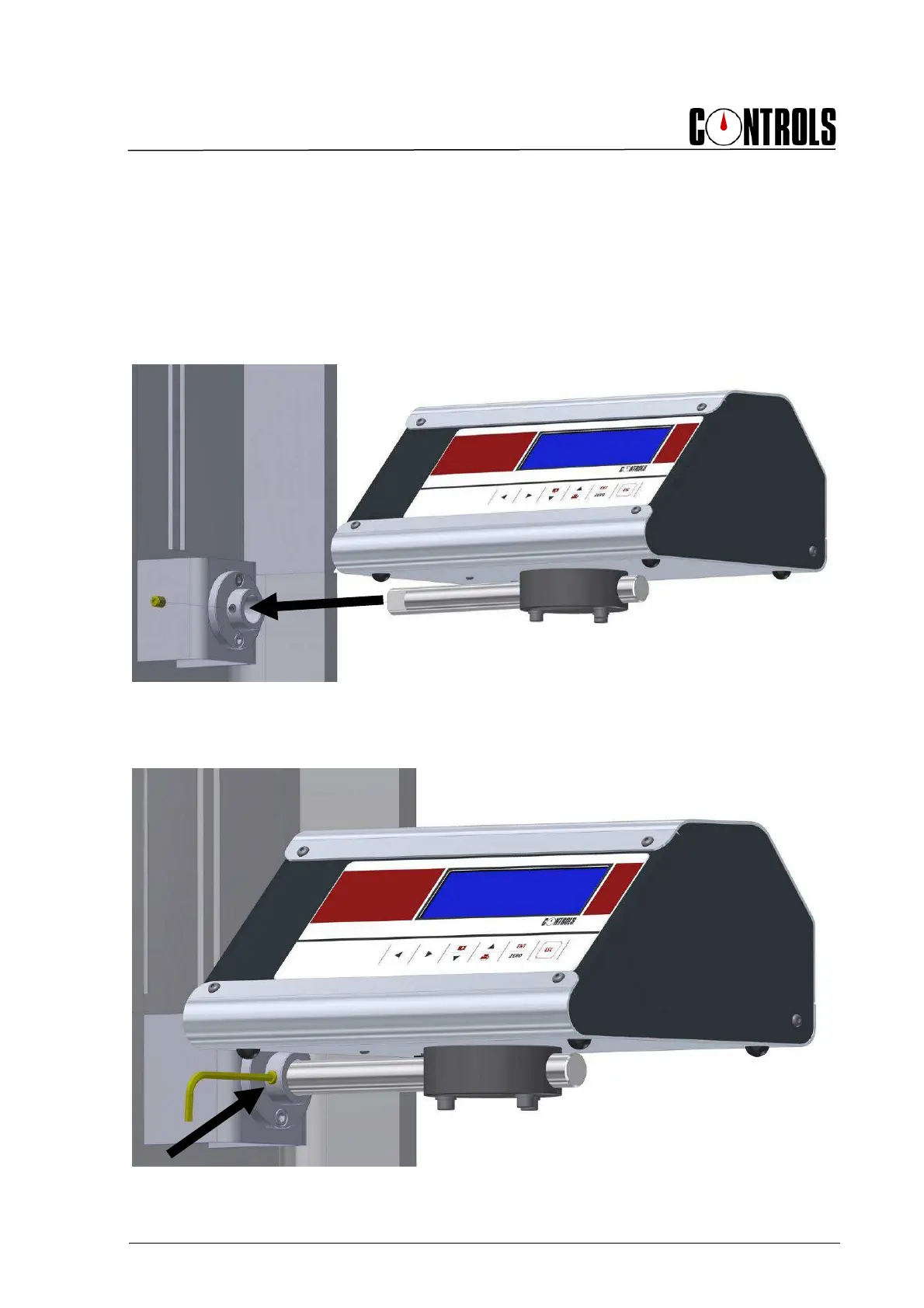

Fig. 3-7
2. Use a 4 mm Allen key to firmly lock the grub screw.
Fig. 3-8
