2.5 Connections

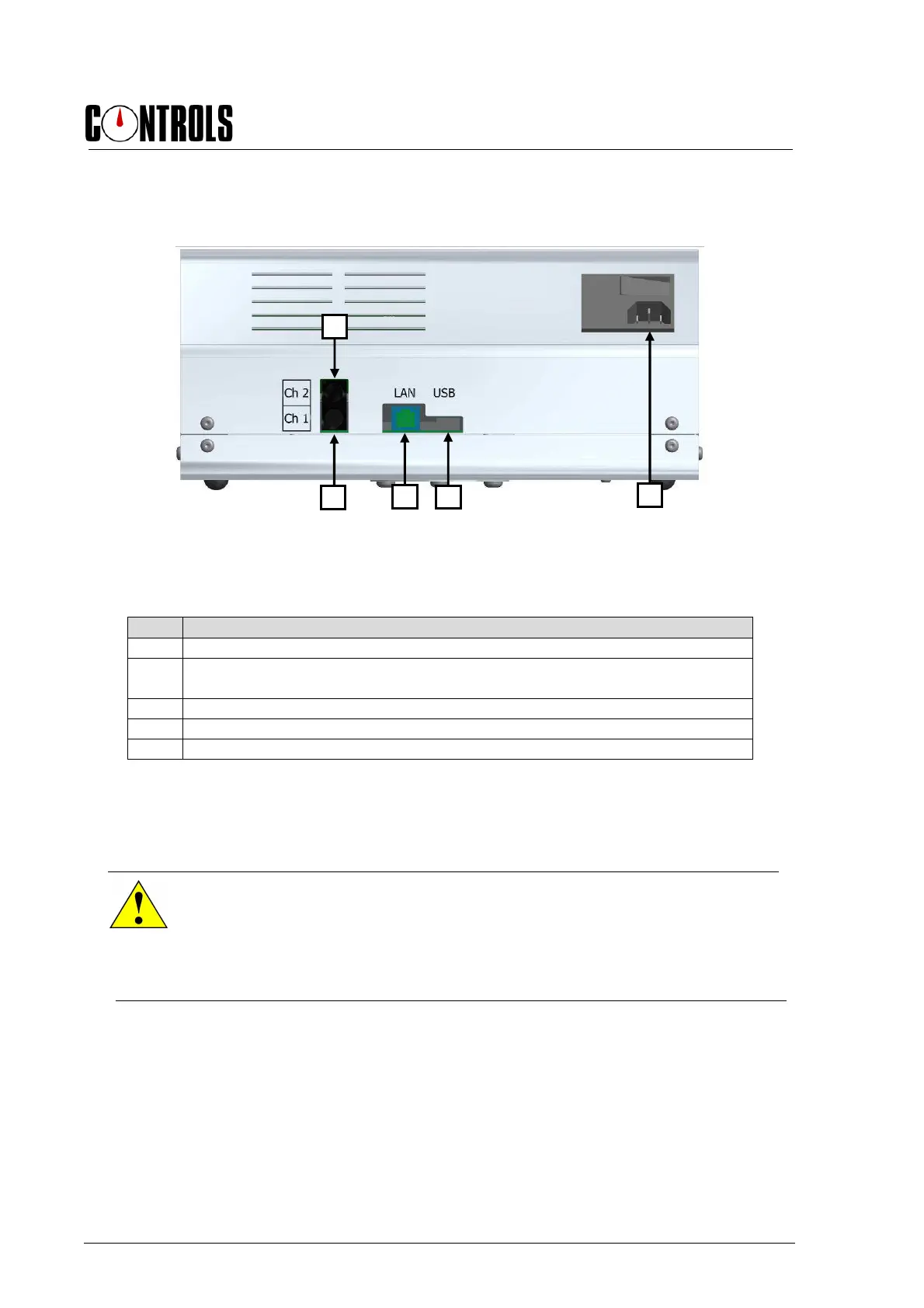

Fig. 2-4
Ref. Description
1
Input socket
CH1
for load
sensor
2 Input socket CH2 for load sensor (normally not activated, see chapter 6.1.1 of
this manual to activate)
3
LAN po
rt for PC connection
4
USB port for data storage (USB pen drive)
5
Power cord receptacle
WARNING:
Do not use the USB port to re-charge batteries of external devices (e.g mobile phone,
audio-video players, etc.). It is also mandatory to connect/disconnect the USB memory
stick with the unit OFF.
CONTROLS will not be held responsible for damages to persons and/or properties in
case these instructions are not strictly followed.
1
2
3
4
5
