3.7 Electrical connections
The sockets for electrical connection are on the rear panel of the equipment, these are for
the load sensors, displacement transducers, USB memory stick and LAN ports, and mains
supply fitted with filter, fuses and mains switch.
1. Connect the power cord to the control unit;
2. Connect the available load sensor(s) depending on the application in use making
reference to the table below;

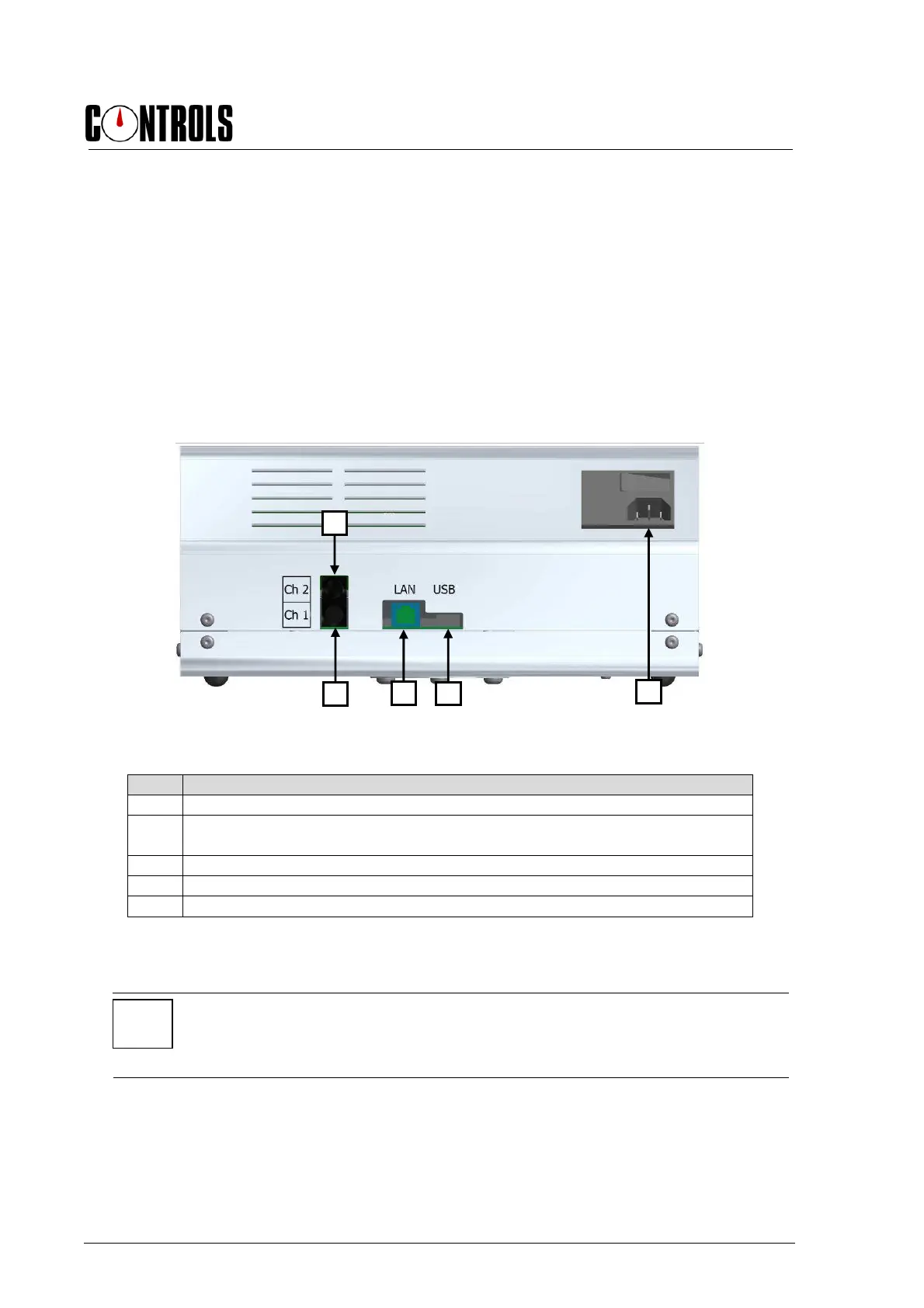

Fig. 3-10
Ref. Description
1
Input socket CH1 for load
sensor
2 Input socket CH2 for load sensor (normally not activated, see chapter 6.1.1 of
thi
s manual to activate)
3
LAN port for PC connection
4
USB port for data storage (USB pen drive)
5
Power cord receptacle
NOTE:
When the unit is installed for the first time, it is recommended to leave the unit ON for at
least 8 hours so as to fully charge the internal battery. In case it gets discharged, the clock
on the display will be zeroed.

1
2
3
4
5
