Before starting any test check that:
• The test frame is free from residual of previous sample and that the surfaces of the
platens are clean;
• Depending on the size of the sample, use proper distance pieces to reduce the
daylight on the press (leave a gap of at least 3-4mm), also considering that the piston
total travel is 50mm.

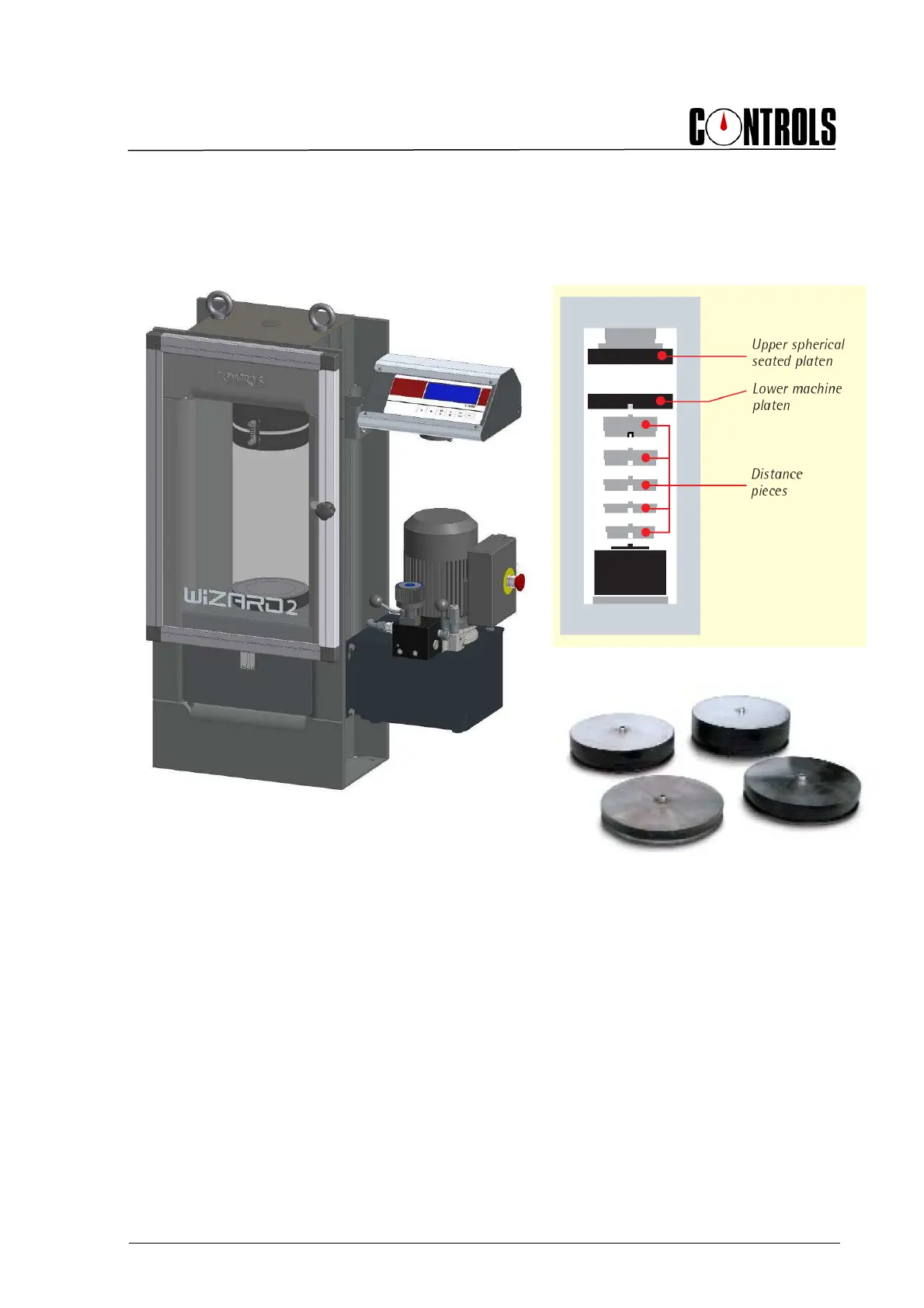

Fig. 4-19
Distance pieces to adjust the vertical daylight:
65-L1000/20
Distance piece dia. 165x20 mm. Weight 3,2 kg
65-L1000/30
Distance piece dia. 165x30 mm. Weight 4,7 kg
65-L1000/40
Distance piece dia. 165x40 mm. Weight 6,4 kg
65-L1000/68
Distance piece dia. 165x68 mm. Weight 10,5 kg
