91
4. If it is not centered more than 1mm in one or more directions, loosen the ram
fixing nuts and screws and use a rubber hammer to re-center it properly;

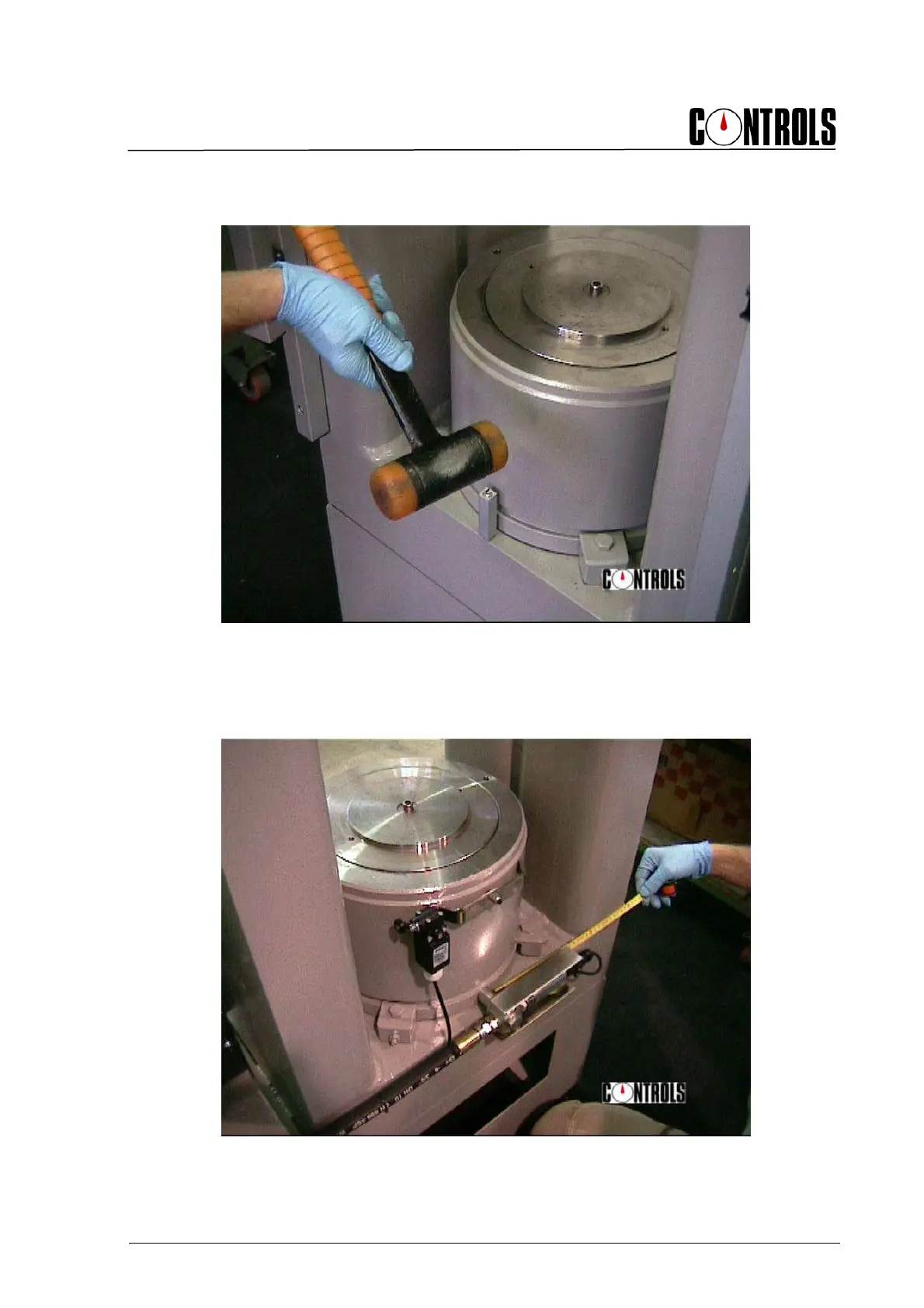

Fig. 5-8
5. Also check that the ram is properly positioned from a rotational point of view by
taking as reference the position of the oil supply tube with respect to the columns
of the frame on the rear of the ram;
Fig. 5-9
6. At the end firmly lock the ram assembly in place by tightening the relevant
brackets/nuts and screw.
