After selecting the CALIBRATION, if two channels have been activated into the system
(see chapter 6.1.1 for channel activation), use the keys to select the
desired channel and press the key to confirm it.

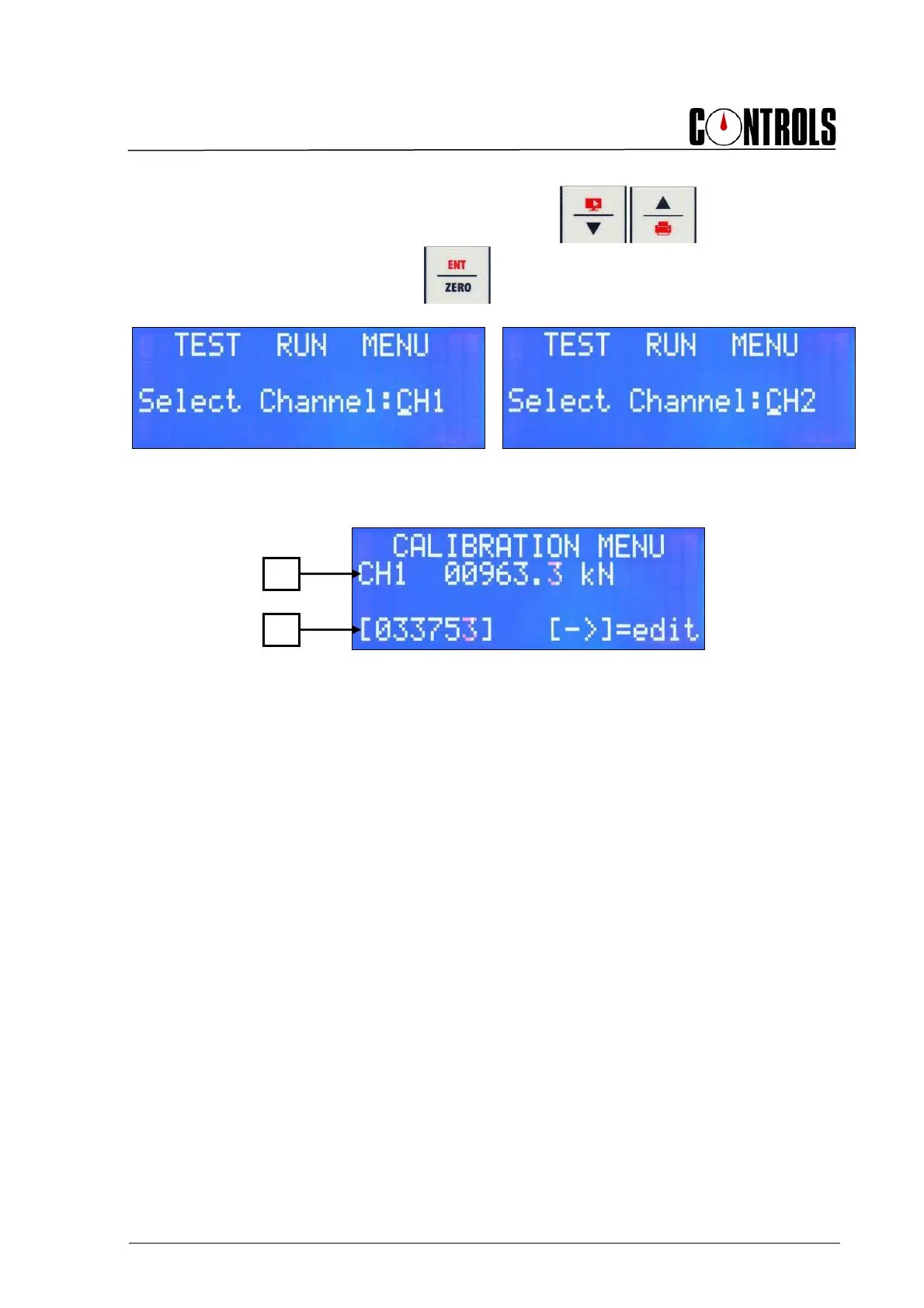

Fig. 5-13
Otherwise the system will directly go to the following screen.
Fig. 5-14
For the selected channel, the screen shows:
1. The actual load read by the load sensor attached to the WIZARD 2 unit in
engineering unit;
2. The actual load read by the load sensor attached to the WIZARD 2 unit in bits.
During the load measurement phase, if the set full scale value is reached, the figure on the
screen will blink and the message OVERLOAD will be shown on the screen while the
internal buzzer will be activated until the load is returned within the full scale limits.
1
2
