26 • TSW-570, TSW-770, and TSW-1070 Product Manual — Doc. 8550C
Test Patterns
TapTestPatterns ontheDiagnostics &AdvancedscreentodisplaytheTestPattern Diagnostics
screen.

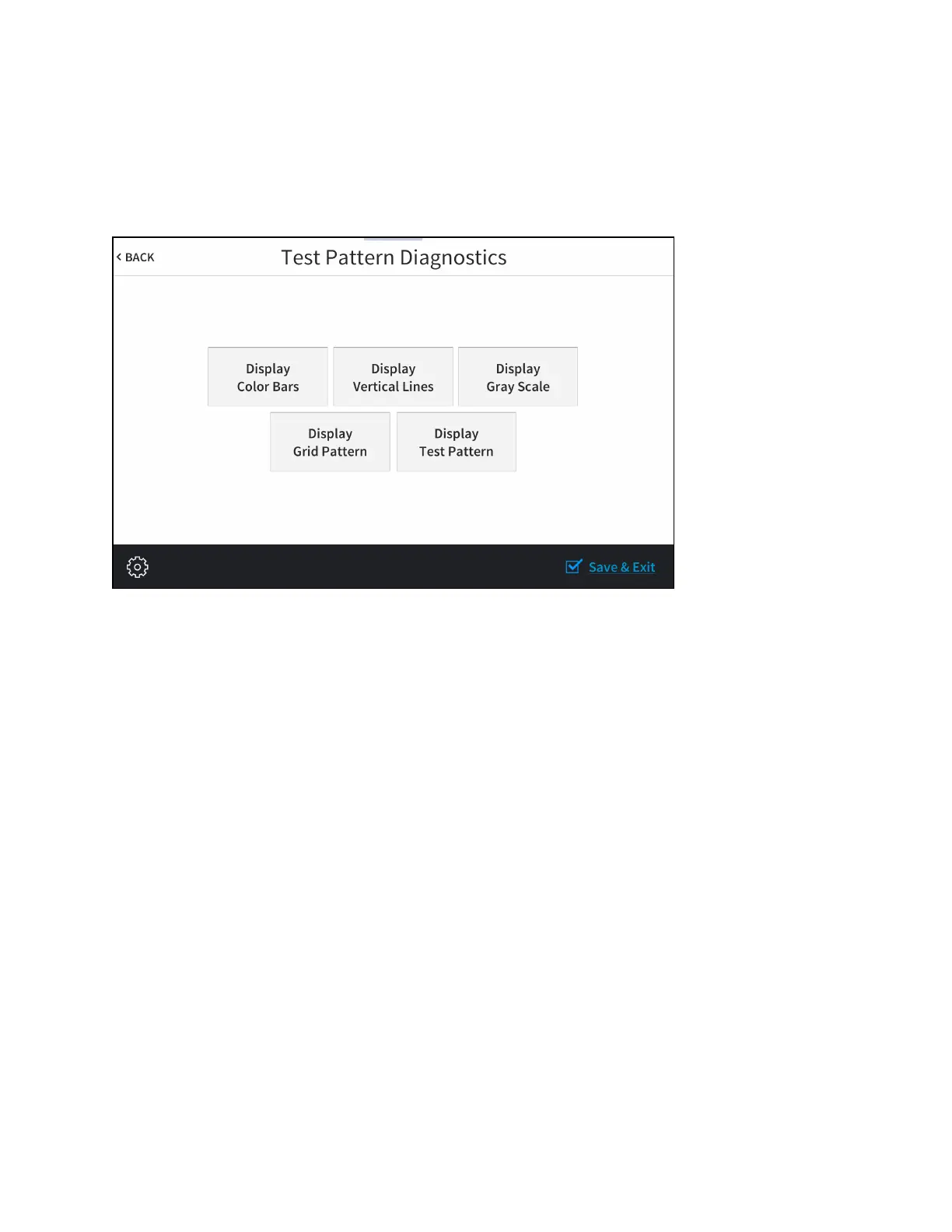

TestPattern DiagnosticsScreen
UsetheTestPatternDiagnostics screentodisplayanyof theavailabletestpatterns.Taponeof
thebuttons onthescreentodisplayits respectivetestpattern.
Tap<BACKtoreturn totheDiagnostics &Advancedscreen.
