Product Manual — Doc. 8550C TSW-570, TSW-770, and TSW-1070 • 7
IP Table Setup
TapIP TableSetupon theSetupscreentodisplaytheEthernetSetup- IPTablescreen.

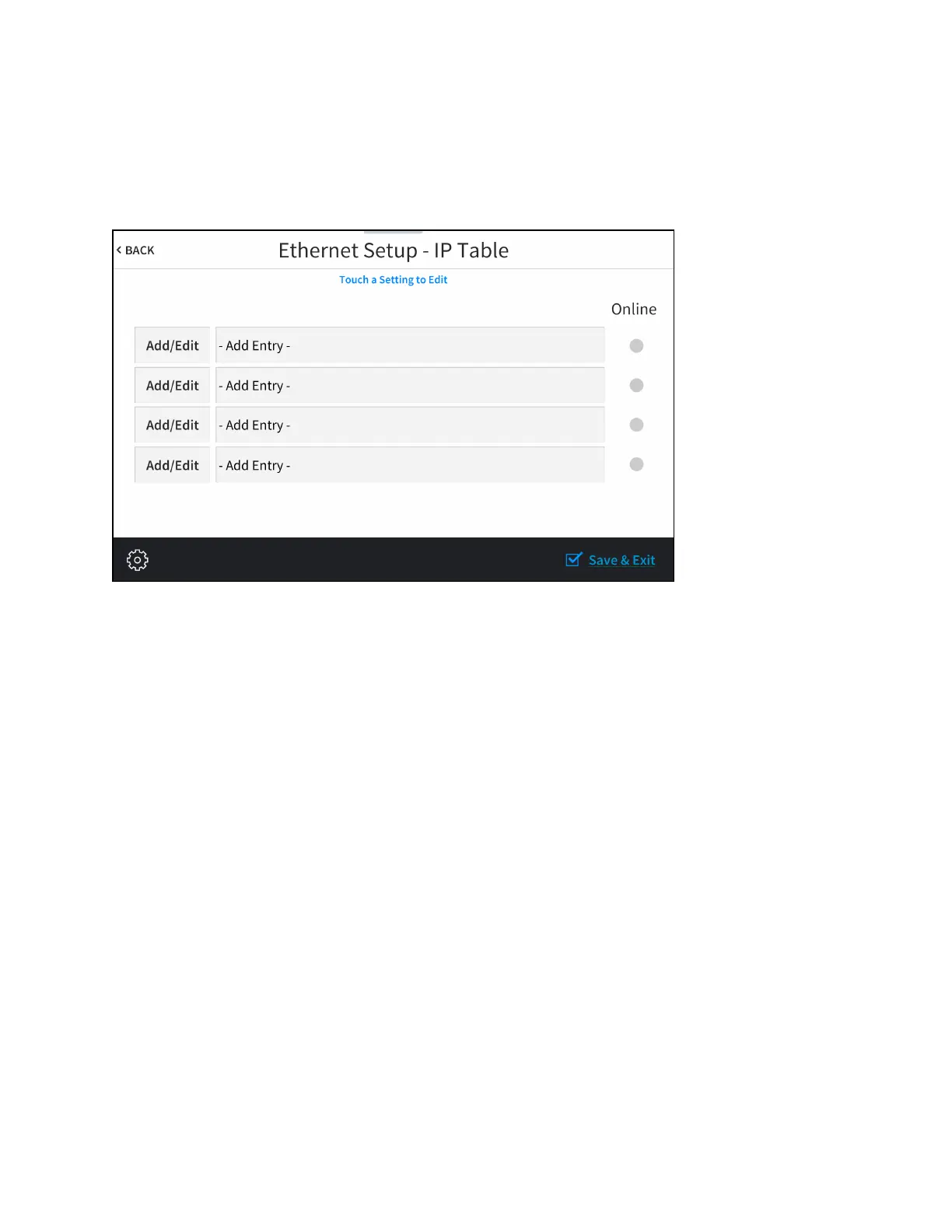

EthernetSetup- IP Table Screen
UsetheEthernetSetup- IPTablescreentoviewandedittheIPtablesettings for connectingthe
touchscreentoacontrolsystem.TheEthernetSetup- IP Tablescreenalso provides anOnline
indicator for eachIP tableentry.(Greenindicates thatthecontrolsystem isonline.)
