Wi-FiTest
TapWi-FiTestontheDiagnostics &AdvancedscreentodisplaytheWi-FiDiagnostics screen.

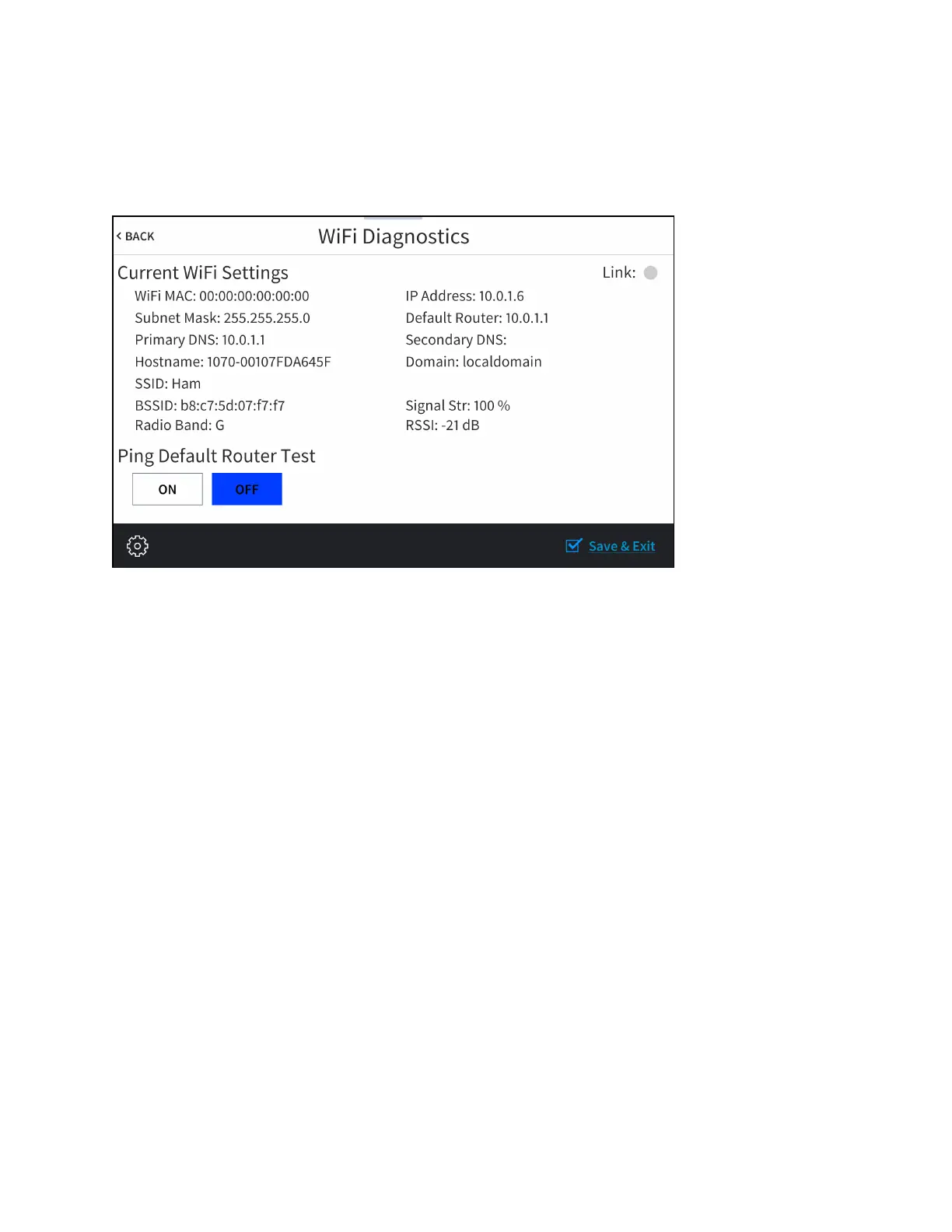

Wi-Fi Diagnostics Screen
UsetheWi-FiDiagnostics screentoviewandtesttheWi-Finetworkconnection.TheEthernet
Diagnostics screendisplaystheWi-FinetworkMACandIP addresses,subnetmaskaddress,
defaultrouter address,primaryandsecondaryDNS addresses,hostname,anddomain name.A
Linkindicator is providedtoindicatethestatus of theWi-Finetworkconnection.(Greenindicates
thattheWi-Finetworkconnectionis active.)
TheWi-FiDiagnostics screenalso provides controls totesttheconnectiontothedefault router.
TapOntobeginthetestandOff toendthetest.
Duringtherouter test,thetouchscreenpingsthedefaultrouter.If therouter iscommunicating
withthetouch screen,connectiondataisdisplayedbelowthepingtestcontrolswithinfive
seconds.Theconnectiondataupdates after everysuccessiveping.
Tap<BACKtoreturn totheDiagnostics &Advancedscreen.
