CVC TECHNOLOGIES, INC. CVC 310 OPERATION MANUAL
7 - 6

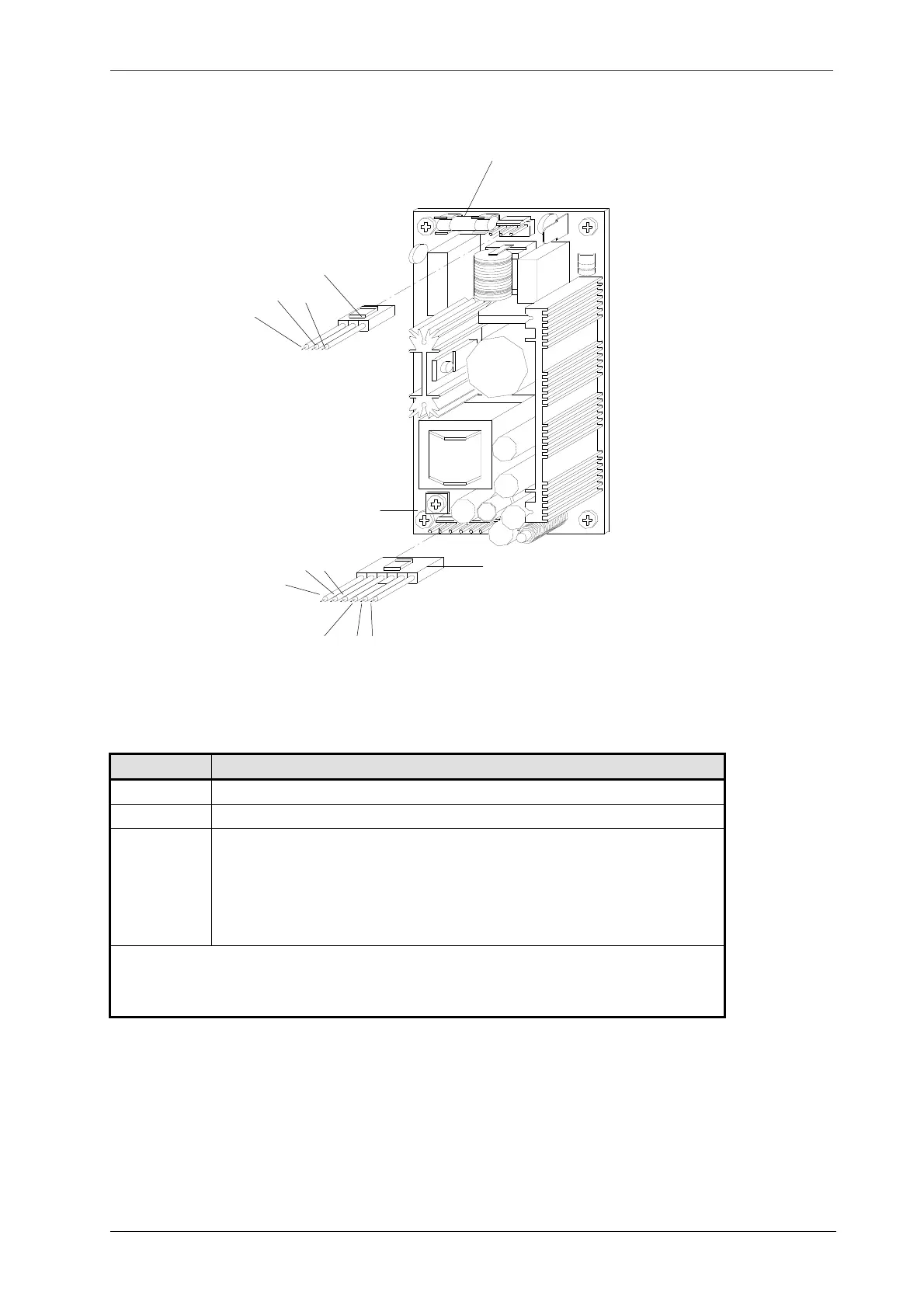

DC Power Supply
Item Function
CN1 AC Power Input: AC85~265V
FS1 Fuse: 4A (20mm)
CN2 DC 5V/12V
Black Wire(BK): 12V
Brown Wire(BR): 12VG
Red (R) and Orange (O): 5V
Yellow (Y) & Green (G): 5VG
If LED D41on Interface Board is not lit as power is on, it indicates no output for switch Power (5V).
If LED D42 is not lit as power is on, it indicates No output for switch power (12V).
Replace new switch power if necessary.
AC
FG
AC
CN1
DC OUT
BR
Y
G
R O
BK
CN2
FS1
