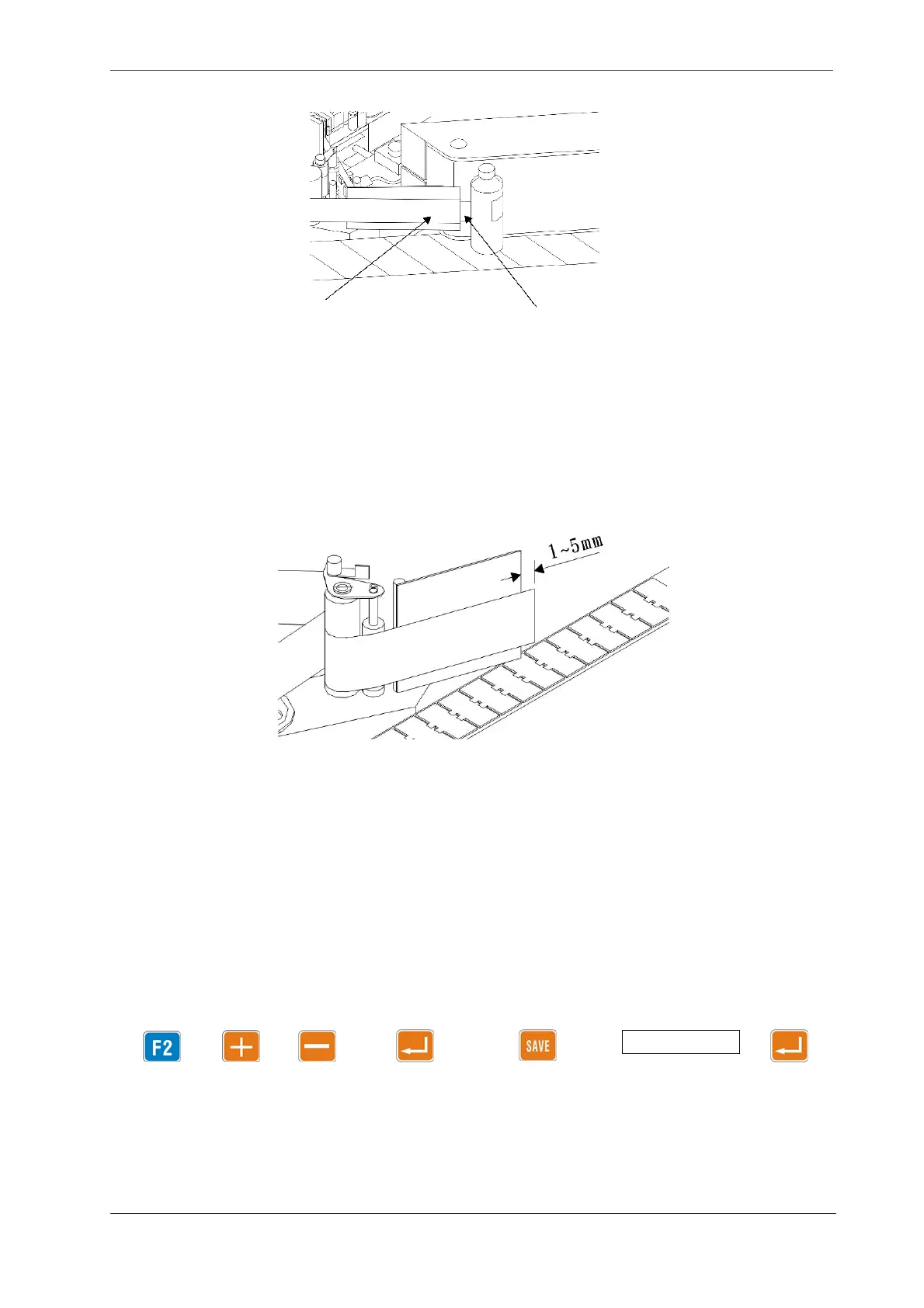

The backing paper should be
stretched out on the label peel blade
while performing dispensing job
The label should be pulled a little tight by
t
he advancing product while performing
wrapping job
Fig 11.5-3
11.5.4 Label Extension (EXTNSN) Adjustment
a. F2 EXTNSN: the length of label extends beyond the tip of the peel blade (Fig 11.5-4).
Fig 11.5-4
b. In general, F2 EXTNSN ranges between 1~5 mm. It may be longer than 5mm for special case.
c. SelfSet
TM
will automatically calculate the correct distance and no change is required.
d. The label extension length should be always the same. If the extension lengths are unstable, it will
cause improper labeling.
e. To change the label extension, first locate the EXTNSN display:
11 - 6
→ or key → key → key → Memory (job) # → key
